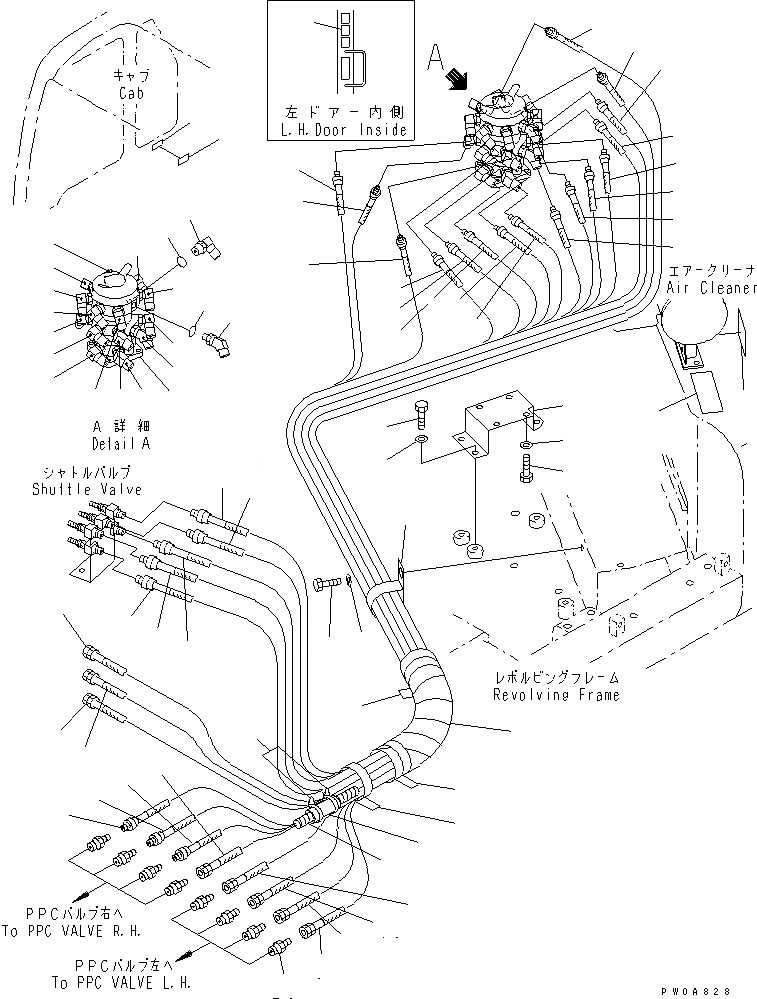

Запчасти Komatsu PC70-7-B MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№-) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
1
20T-62-76302
VALVE ASS'Y,MULTIPLE PATTERN
|1
20T-62-76301
VALVE ASS'Y,MULTIPLE PATTERN
2
201-62-75420
ELBOW
3
07002-11423
O-RING
4
20X-62-47450
ELBOW
5
07002-11423
O-RING
|6
201-62-75890
HOSE ASS'Y
6
201-62-73760
HOSE¤ 630MM,BROWN-YELLOW
|6
20U-62-22190
O-RING
|7
201-62-75910
HOSE ASS'Y
7
201-62-73840
HOSE¤ 535MM,BLACK-YELLOW
|7
20U-62-22190
O-RING
|8
201-62-75920
HOSE ASS'Y
8
201-62-73870
HOSE¤ 635MM,BLUE-YELLOW
|8
20U-62-22190
O-RING
|9
201-62-75930
HOSE ASS'Y
9
201-62-73830
HOSE¤ 550MM,RED-YELLOW
|9
20U-62-22190
O-RING
10
201-62-73880
HOSE¤ 665MM,YELLOW
|10
20U-62-22190
O-RING
11
201-62-73890
HOSE¤ 435MM,ORANGE
|11
20U-62-22190
O-RING
|12
201-62-75940
HOSE ASS'Y
12
201-62-73820
HOSE¤ 580MM,YELLOW-YELLOW
|12
20U-62-22190
O-RING
|13
201-62-75950
HOSE ASS'Y
13
201-62-73780
HOSE¤ 725MM,RED
|13
20U-62-22190
O-RING
|14
201-62-75950
HOSE ASS'Y
14
201-62-73780
HOSE¤ 725MM,BLACK
|14
20U-62-22190
O-RING
|15
201-62-75960
HOSE ASS'Y
15
201-62-73770
HOSE¤ 1010MM,BLUE
|15
20U-62-22190
O-RING
|16
201-62-75970
HOSE ASS'Y
16
201-62-73790
HOSE¤ 430MM,WHITE-YELLOW
|16
20U-62-22190
O-RING
|17
201-62-75980
HOSE ASS'Y
17
201-62-73810
HOSE¤ 445MM,ORANGE-YELLOW
|17
20U-62-22190
O-RING
|18
201-62-75990
HOSE ASS'Y
18
20T-62-84280
HOSE¤ 500MM,GREEN-YELLOW
|18
20U-62-22190
O-RING
19
201-62-73840
HOSE¤ 535MM,BROWN
|19
20U-62-22190
O-RING
20
201-62-73850
HOSE¤ 515MM,WHITE
|20
20U-62-22190
O-RING
21
201-62-73860
HOSE¤ 615MM,GREEN
|21
20U-62-22190
O-RING
22
08034-00536
BAND
23
201-62-73470
BRACKET
24
01010-81025
BOLT
25
01643-31032
WASHER
26
207-62-33690
CLIP
27
01010-81025
BOLT
28
01643-31032
WASHER
29
21Y-62-13340
JOINT
30
08210-02903
SPIRAL TUBE
31
08034-00834
BAND
32
20U-62-26170
SEAT
33
08034-00823
BAND
34
08210-01202
SPIRAL TUBE
|34
08210-00602
SPIRAL TUBE
35
01010-81025
BOLT
36
01643-31032
WASHER
37
09822-A1110
PLATE¤ OPERATING,JIS AND OLD KOMATSU PATTERN
|37
09822-A1120
PLATE¤ OPERATING,OLD MITSUBISHI AND OLD SINKOU
38
09822-00010
PLATE¤ SAFETY,MULTIPLE PATTERN
39
09822-00020
CASE¤ PLATE
40
203-00-61710
PLATE¤ SAFETY,MULTIPLE PATTERN VALVE
41
20U-98-31160
PLATE,SHIFT PATTERN
Выбрано товаров: 71
