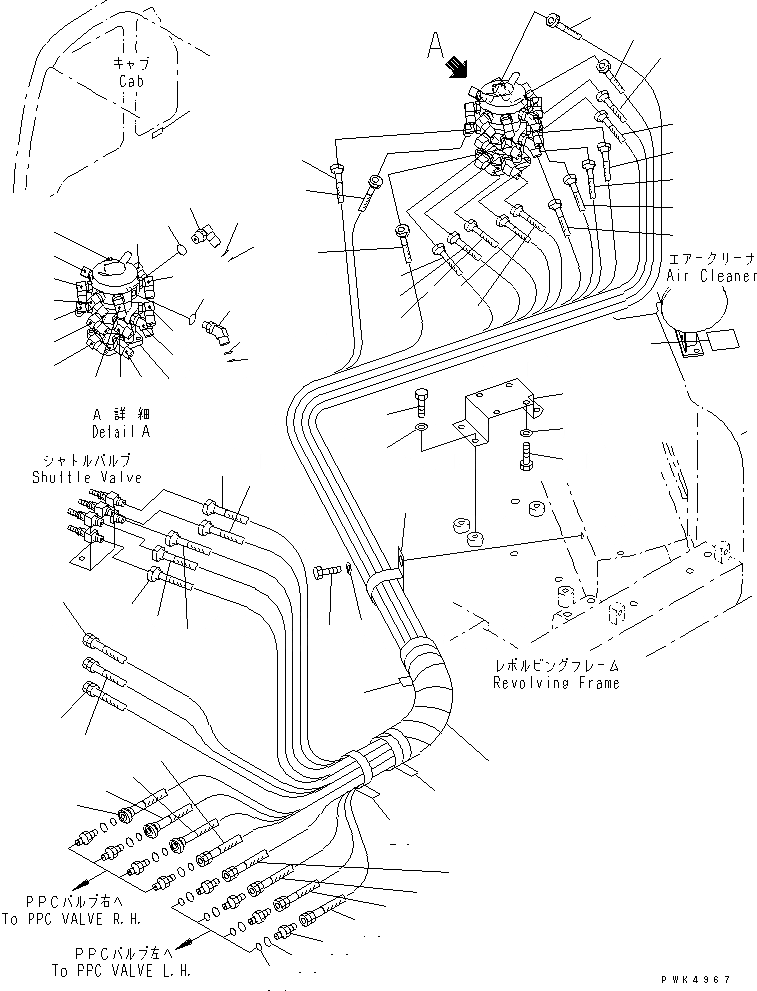

Запчасти Komatsu PC70-7-B MULTIPLE PATTERN WAY (ШЛАНГИ И ПЛАСТИНА)(№7-) ГИДРАВЛИКА

1

20T-62-76300

VALVE ASS'Y,MULTIPLE PATTERN

2

20Y-62-22271

ELBOW

3

201-60-11390

O-RING

4

20Y-62-19560

O-RING

5

07002-11423

O-RING

6

20Y-62-25720

ELBOW

7

201-60-11390

O-RING

8

20Y-62-19560

O-RING

9

07002-11423

O-RING

10

201-62-74560

HOSE¤ 700MM,BROWN-YELLOW

11

201-62-74560

HOSE¤ 700MM,RED

12

201-62-74560

HOSE¤ 700MM,BLACK

13

201-62-74620

HOSE¤ 500MM,RED-YELLOW

14

201-62-74620

HOSE¤ 500MM,BLACK-YELLOW

15

201-62-74620

HOSE¤ 500MM,BROWN

16

201-62-74620

HOSE¤ 500MM,WHITE

17

201-62-74620

HOSE¤ 500MM,ORANGE

18

201-62-74630

HOSE¤ 600MM,BLUE-YELLOW

19

201-62-74630

HOSE¤ 600MM,GREEN

20

201-62-74690

HOSE¤ 1000MM,BLUE

21

201-62-74830

HOSE¤ 650MM,YELLOW

22

201-62-74850

HOSE¤ 400MM,ORANGE-YELLOW

23

201-62-74850

HOSE¤ 400MM,WHITE-YELLOW

24

201-62-74880

HOSE¤ 550MM,GREEN-YELLOW

25

201-62-74880

HOSE¤ 550MM,YELLOW-YELLOW

26

08034-00536

BAND

27

201-62-73470

BRACKET

28

01010-81025

BOLT

29

01643-31032

WASHER

30

21T-06-11950

CLIP

31

01010-81025

BOLT

32

01643-31032

WASHER

33

20T-62-81850

NIPPLE

34

201-60-11390

O-RING

35

20Y-62-19560

O-RING

36

08210-02903

SPIRAL TUBE

37

08034-00834

BAND

38

01010-81025

BOLT

39

01643-31032

WASHER

40

20Y-00-11310

PLATE¤ OPERATING,OLD KOMATSU PATTERN

|40

203-916-5130

PLATE¤ OPERATING,OLD MITSUBISHI PATTERN

|40

203-916-5150

PLATE¤ OPERATING,OLD SINKOU PATTERN

41

20T-62-76261

PLATE¤ OPERATING,MULTIPLE PATTERN VALVE
