Запчасти Komatsu PC70-6 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

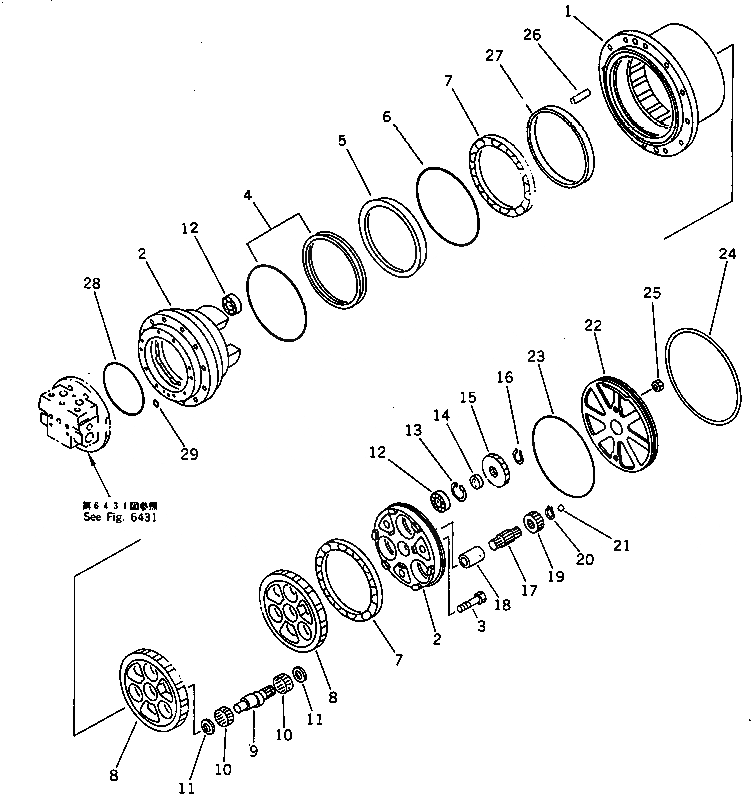

Схема запчастей Komatsu PC70-6 - МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

201-60-61100

TRAVEL MOTOR ASS'Y

1

TZ810B1001-00

HUB

|$3

TZ910B1102-00

SPINDLE KIT

2

TZ910B1132-00

SPINDLE ASS'Y

2

TZMB700-060

PLUG

3

TZ910B1019-00

BOLT,REAMER

|$7

TZ192-230-30-B

FLOATING SEAL ASS'Y (K1)

4

TZES100-192-B

SEAL,FLOATING

5

TZ860A1010-01

PIECE,DISTANCE

6

07000-15230

O-RING (K1)

7

TZ810B1021-00

BEARING

|$12

TZ910B1104-00

RV GEAR ASS'Y

8

RV GEAR

9

TZ910B1009-00

SHAFT,CRANK

10

TZ910B1023-00

BEARING

11

TZ910B1012-00

SPACER

12

TZ860A1022-00

BEARING

13

TZ860A1013-00

SNAP RING SET (12KINDS)

14

TZ800B1014-00

PIECE,DISTANCE

15

TZ900B1107-00

SPUR GEAR KIT (3PIS)

16

04064-02512

RING,SNAP

17

TZ910B1016-00

SHAFT

18

TZ800A1015-00

JOINT

19

TZ900B1006-00

GEAR,INPUT

20

TZJB2804-S19

RING,SNAP

21

04260-00952

BALL

22

TZ810B1008-00

COVER

23

TZJW1516-P74-9

O-RING (K1)

24

TZ810B1018-00

RING

25

TZGM3-8

PLUG

26

TZ810B1017-00

PIN

27

TZ810B1020-00

COLLAR

28

TZJW1516-G35-9

O-RING (K1)

29

07000-11007

O-RING (K1)

|$36

TZ910B9000-00

SEAL KIT

|$37

TZ15Z-22-42-10

SEAL,OIL

|$38

TZSUN-2WG28

RING,BACK-UP

|$39

TZJW1516-G28-9

O-RING

|$40

07000-12140

O-RING

|$41

TZSUN-2BG140

RING,BACK-UP

|$42

07000-11009

O-RING

|$43

TZJB2401-P26-9

O-RING

|$44

07000-11008

O-RING

|$45

TZJP2401-P26-9

O-RING

|$46

07000-12018

O-RING

|$47

07000-12016

O-RING

|$48

07002-02034

O-RING

|$49

TZ192-230-30-B

FLOATING SEAL ASS'Y

|$50

07000-15230

O-RING

|$51

TZJW1516-P74-9

O-RING

|$52

TZJW1516-G35-9

O-RING

|$53

07000-11007

O-RING

Выбрано товаров: 52
