Запчасти Komatsu PC70-6 МАРКИРОВКА (ЯПОН.) (/) (JIS PATTERN)(№7-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

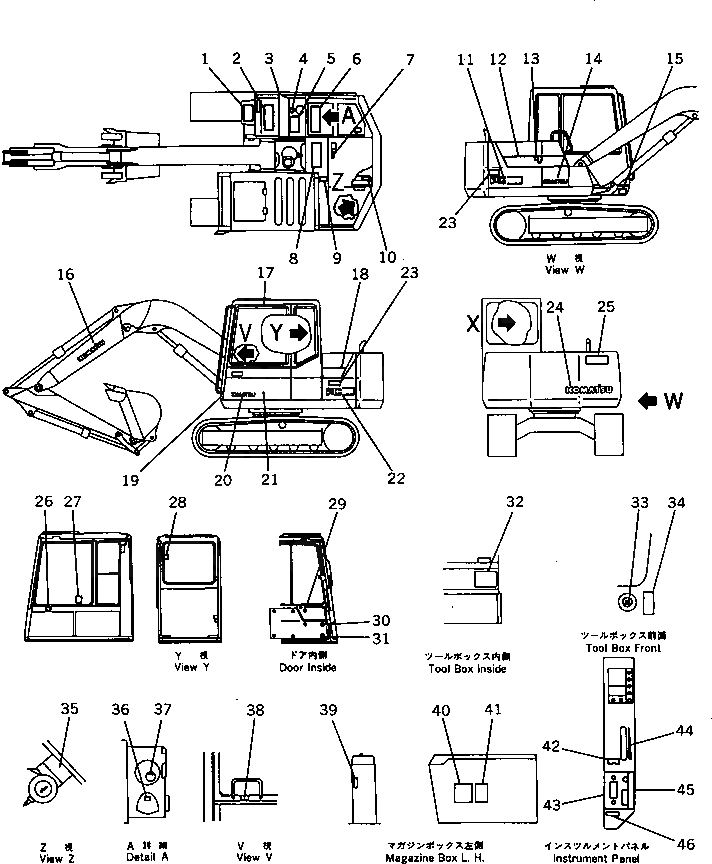

Схема запчастей Komatsu PC70-6 - МАРКИРОВКА (ЯПОН.) (/) (JIS PATTERN)(№7-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

201-00-61190

PLATE¤ MARK,LINE

4

09652-01121

PLATE¤ CAUTION,FUEL

5

203-00-51170

SEAT,NONSKID

6

154-54-23260

SEAT,NONSKID

7

09667-00100

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

10

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

11

201-00-62111

PLATE¤ MARK,PC70

12

201-00-61180

PLATE¤ MARK,LINE

13

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

14

09690-C0315

PLATE¤ MARK,KOMATSU

15

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|15

04418-13060

SCREW

16

09690-B0450

PLATE¤ MARK,KOMATSU

17

20Y-00-11350

PLATE

18

201-00-61170

PLATE¤ MARK,LINE

19

20Y-00-11490

PLATE

20

09690-C0315

PLATE¤ MARK,KOMATSU

21

20Y-00-11350

PLATE

22

201-00-62111

PLATE¤ MARK,PC70

23

20Y-00-11520

PLATE¤ MARK,AVANCE

24

09690-C0630

PLATE¤ MARK,KOMATSU

25

203-00-51210

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

26

203-916-5730

PLATE¤ OPERATING,ISO PATTERN

27

201-00-61450

PLATE¤ OPERATING,PANEL CONTROL

28

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

29

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

30

20Y-54-13473

COVER

31

20Y-54-14560

CLIP ASS'Y

32

201-00-61212

CHART¤ OIL

33

201-00-61380

PLATE¤ OPERATING,TOOL BOX LOCK

34

201-00-61340

PLATE¤ OPERATING,TOOL BOX LOCK

35

09637-01661

PLATE¤ INSTRUCTION,LOCK

36

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

37

201-54-21940

PLATE¤ CAUTION,HYDRAULIC TANK CAP

38

203-00-52190

PLATE¤ CAUTION,WIPER MOTOR CONNECTOR

39

09685-00002

PLATE¤ OPERATING,LOCK LEVER

40

201-00-62121

PLATE¤ DATA

41

201-00-61160

PLATE¤ CAUTION

42

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

43

201-00-61151

PLATE¤ CAUTION,PANEL

44

201-00-61230

PLATE¤ OPERATING,FUEL CONTROL

45

201-00-61240

PLATE¤ MARK,KOMATSU

46

201-00-61140

PLATE¤ OPERATING,SWING MECHANICAL BRAKE

Выбрано товаров: 47
