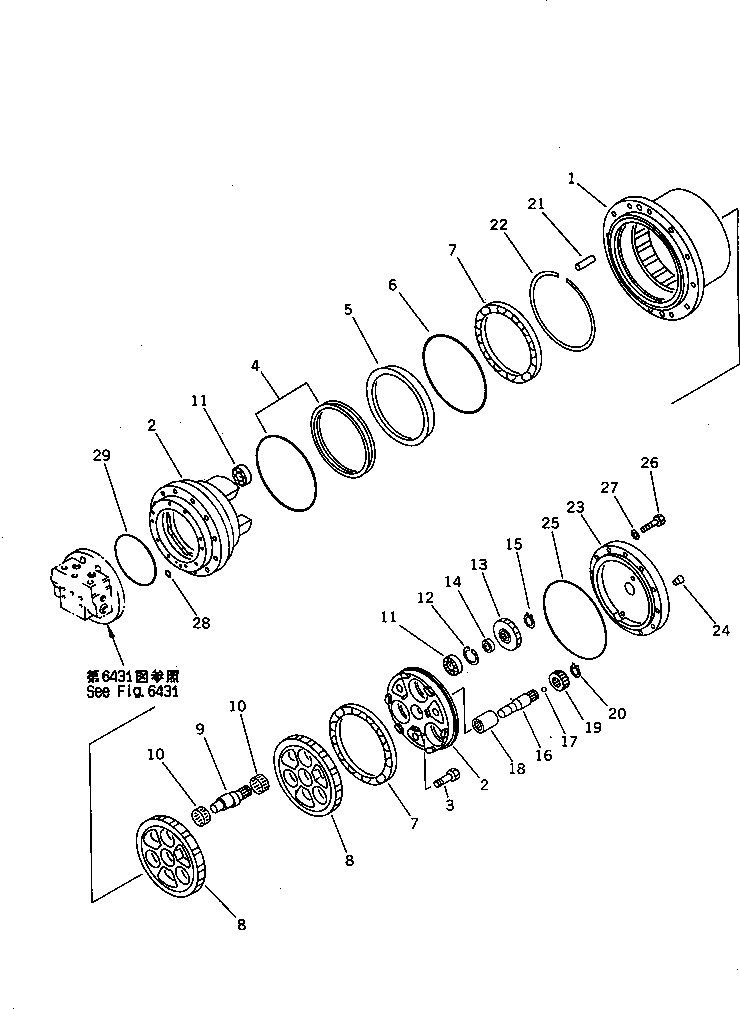

Запчасти Komatsu PC70-6 МОТОР ХОДА (УСИЛЕНН.) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

201-60-61200

TRAVEL MOTOR ASS'Y

1

TZ225B1001-00

HUB

|2

TZ225B1102-01

SPINDLE KIT

2

TZ225B1132-01

SPINDLE ASS'Y

3

TZ200B1019-02

BOLT,REAMER

4

TZES100-250-A

SEAL,FLOATING (K1)

5

TZ150F1027-01

PIECE,DISTANCE

6

07000-15280

O-RING (K1)

7

TZ200B1021-00

BEARING

|8

TZ200B1104-02

RV GEAR ASS'Y

8

TZ200B1204-01

RV GEAR KIT

9

TZ200B1009-01

SHAFT,CRANK

10

TZ200B1023-00

BEARING

11

TZ200B1022-00

BEARING

12

TZ150A1020-00

SNAP RING KIT (12KINDS)

13

TZ202B1107-00

SPUR GEAR KIT (3PIS)

14

TZ200B1014-01

PIECE,DISTANCE

15

04064-03515

RING,SNAP

16

TZ225B1016-00

SHAFT

17

04260-00952

BALL

18

TZ800A1015-00

JOINT

19

TZ202B1006-00

GEAR,INPUT

20

04064-02815

RING,SNAP

21

TZ225B1017-00

PIN

22

TZ700C1016-00

RING

23

TZ200B1008-00

COVER

24

TZGM1-2

PLUG

25

TZARP568-378-9

O-RING (K1)

26

01010-31245

BOLT

27

TZSW-M12

WASHER

28

07000-11007

O-RING (K1)

29

TZJW1516-G35-9

O-RING (K1)

|30

TZ226B9000-00

SEAL KIT

|30

TZSUN-2BG140

RING,BACK-UP

|30

07000-12140

O-RING

|30

TZJW1516-G28-9

O-RING

|30

TZSUN-2WG28

RING,BACK-UP

|30

TZ15Z-22-42-10

SEAL

|30

07000-11009

O-RING

|30

TZJB2401-P26-9

O-RING

|30

07000-11008

O-RING

|30

07000-12018

O-RING

|30

07000-12016

O-RING

|30

07002-02034

O-RING

|30

TZES100-250-A

SEAL,FLOATING

|30

07000-15280

O-RING

|30

TZARP568-378-9

O-RING

|30

07000-11007

O-RING

|30

TZJW1516-G35-9

O-RING
