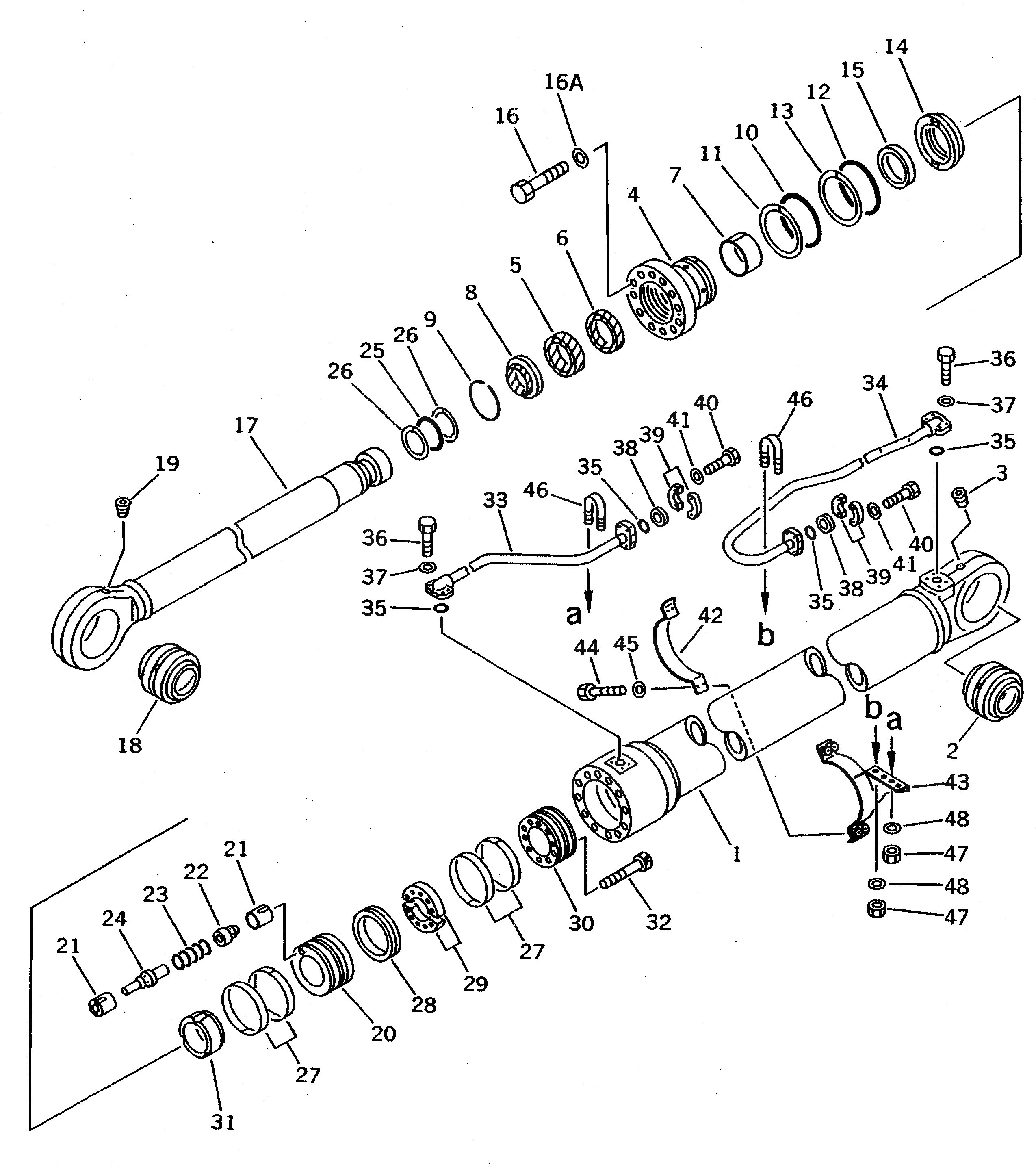

Запчасти Komatsu PC650SE-5 ЦИЛИНДР СТРЕЛЫ(ЭКСКАВАТ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

209-63-X2100

BOOM CYLINDER GROUP,L.H.

G-1

209-63-X2110

BOOM CYLINDER GROUP,R.H.

|1

209-63-02100

CYLINDER ASS'Y

1

209-63-52540

CYLINDER

2

707-46-13010

BUSHING

3

07043-00108

PLUG

4

707-28-20710

HEAD,CYLINDER

5

707-51-14130

PACKING,ROD (KIT)

6

707-51-14630

RING,BUFFER (KIT)

7

707-52-91150

BUSHING

8

198-63-93170

SEAL,DUST (KIT)

9

07179-14160

RING,SNAP

10

07000-15195

O-RING (KIT)

11

707-35-92050

RING,BACK-UP (KIT)

12

07000-15195

O-RING (KIT)

13

07001-05195

RING,BACK-UP (KIT)

14

707-71-31460

COLLAR

15

707-71-11450

RING

16

01011-82700

BOLT

16A

01643-32780

WASHER

17

209-63-52520

ROD,PISTON

18

707-46-11520

BUSHING

19

07043-00108

PLUG

|20

707-91-02062

PISTON ASS'Y

20

PISTON

21

SEAT

22

VALVE

23

SPRING

24

VALVE

25

07000-12115

O-RING (KIT)

26

707-35-52860

RING,BACK-UP (KIT)

27

707-39-20820

RING,WEAR (KIT)

28

707-44-20180

RING,PISTON

29

707-40-20970

SPACER

30

707-37-20020

PISTON

31

707-71-61410

PLUNGER

32

01252-31490

BOLT

33

209-63-52570

TUBE,L.H.

|33

209-63-52670

TUBE,R.H.

34

209-62-58180

TUBE,L.H.

|34

209-62-58190

TUBE,R.H.

35

07000-13038

O-RING (KIT)

36

01010-51245

BOLT

37

01643-31232

WASHER

38

07378-11210

HEAD

39

07371-51260

FLANGE

40

01010-51245

BOLT

41

01643-31232

WASHER

42

707-88-96110

BAND

43

707-88-96120

BRACKET

44

01010-51240

BOLT

45

01643-31232

WASHER

46

07283-33442

CLIP

47

01599-01011

NUT

48

01643-31032

WASHER
