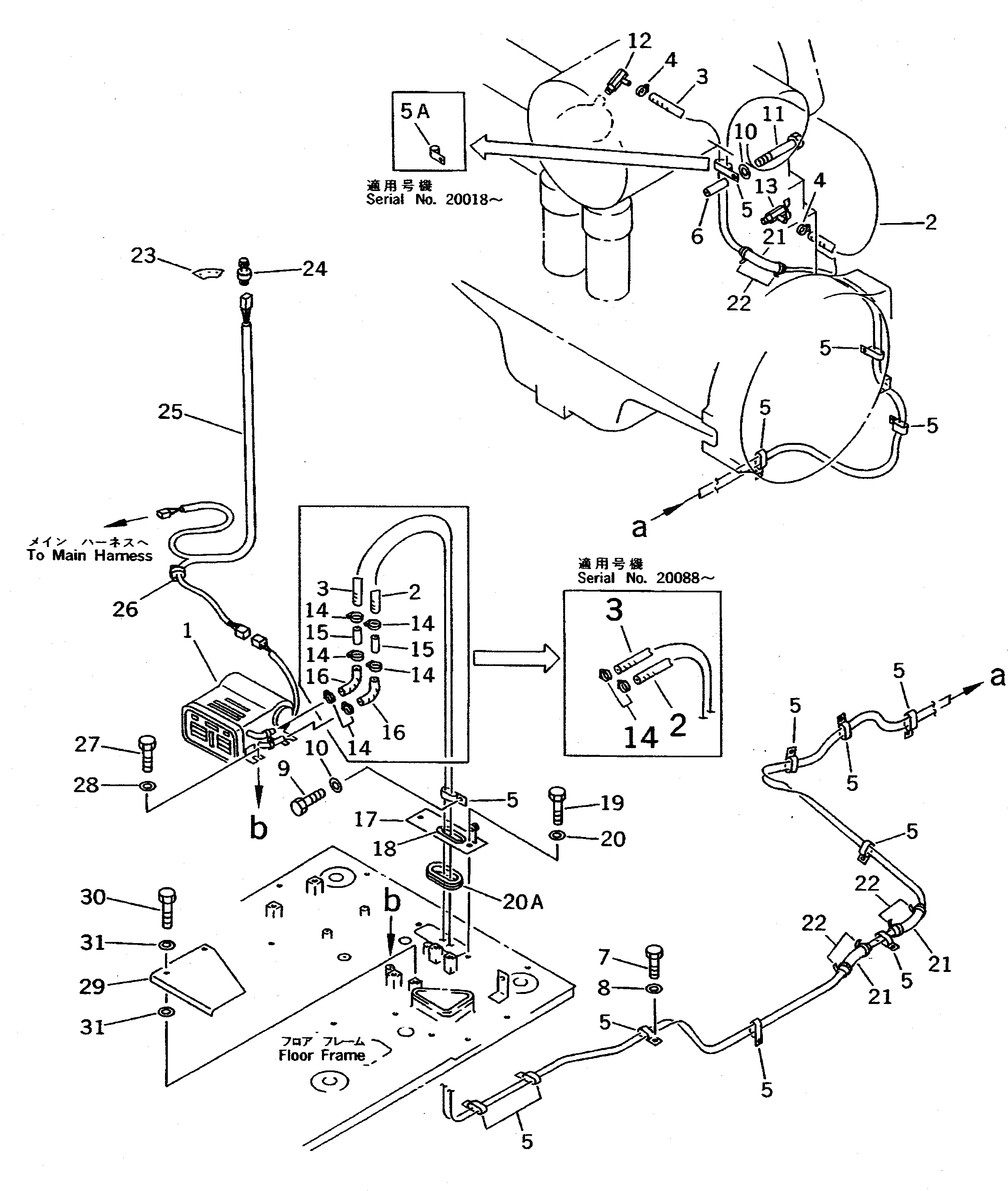

Запчасти Komatsu PC650SE-5 ОБОГРЕВАТЕЛЬ. КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

205-977-7110

HEATER UNIT

2

09483-00464

HOSE

|2

09483-00468

HOSE

3

09483-00471

HOSE

|3

09483-00473

HOSE

4

09480-10100

CLAMP

5

141-06-11220

CLIP

|5

141-06-11220

CLIP

5A

140-06-18440

CLIP

6

150-95-28180

SPACER

7

01010-51225

BOLT

8

01643-31232

WASHER

9

01010-51025

BOLT

10

01643-31032

WASHER

11

01010-51085

BOLT

12

202-981-1340

JOINT

13

09482-20000

VALVE

14

09480-10100

CLAMP

|14

09480-10100

CLAMP

15

09484-00450

CONNECTOR

16

09483-20450

HOSE

17

209-977-5111

PLATE

18

209-979-5250

SEAL

19

01010-51025

BOLT

20

01643-31032

WASHER

20A

150-95-27160

GROMMET

21

205-62-53780

COVER

|21

205-62-53780

COVER

22

08034-00536

BAND

|22

08034-00536

BAND

23

209-977-5131

PLATE

|23

209-977-5130

PLATE

24

205-06-71321

SWITCH

25

209-977-6140

WIRING HARNESS

26

22W-06-13590

DIODE

27

01010-51020

BOLT

28

01643-31032

WASHER

29

209-977-6120

COVER

30

01010-51025

BOLT

31

01643-31032

WASHER
