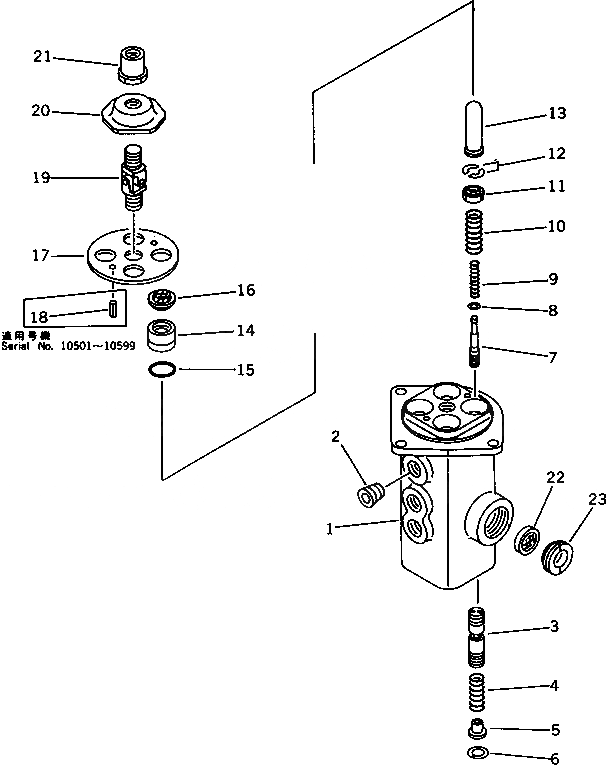

Запчасти Komatsu PC650SE-3 КЛАПАН PPC(ДЛЯ РАБОЧ. ОБОРУД-Я И ПОВОРОТН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

702-16-55004

PILOT VALVE

|1

702-16-55003

VALVE ASS'Y

|1

702-16-55002

VALVE ASS'Y

1

BODY

2

07043-50312

PLUG

3

VALVE

|3

VALVE

4

702-16-51331

SPRING

5

702-16-51341

RETAINER

6

700-20-51550

RING

7

PISTON

8

702-16-51140

SHIM¤ 0.30MM

9

702-16-51361

SPRING

10

702-16-51381

SPRING

11

702-16-51161

RETAINER

|11

702-16-51160

RETAINER

12

702-16-51170

COLLAR

13

702-16-51210

PISTON

14

702-16-51220

COLLAR

15

07000-02020

O-RING

16

702-16-51270

SEAL

17

702-16-51231

PLATE

|17

702-16-51230

PLATE

18

04025-00312

PIN,SPRING

19

702-16-51240

JOINT

20

702-16-51430

DISK

21

702-16-51260

NUT

22

720-68-15240

FILTER

23

702-16-51410

PLUG
