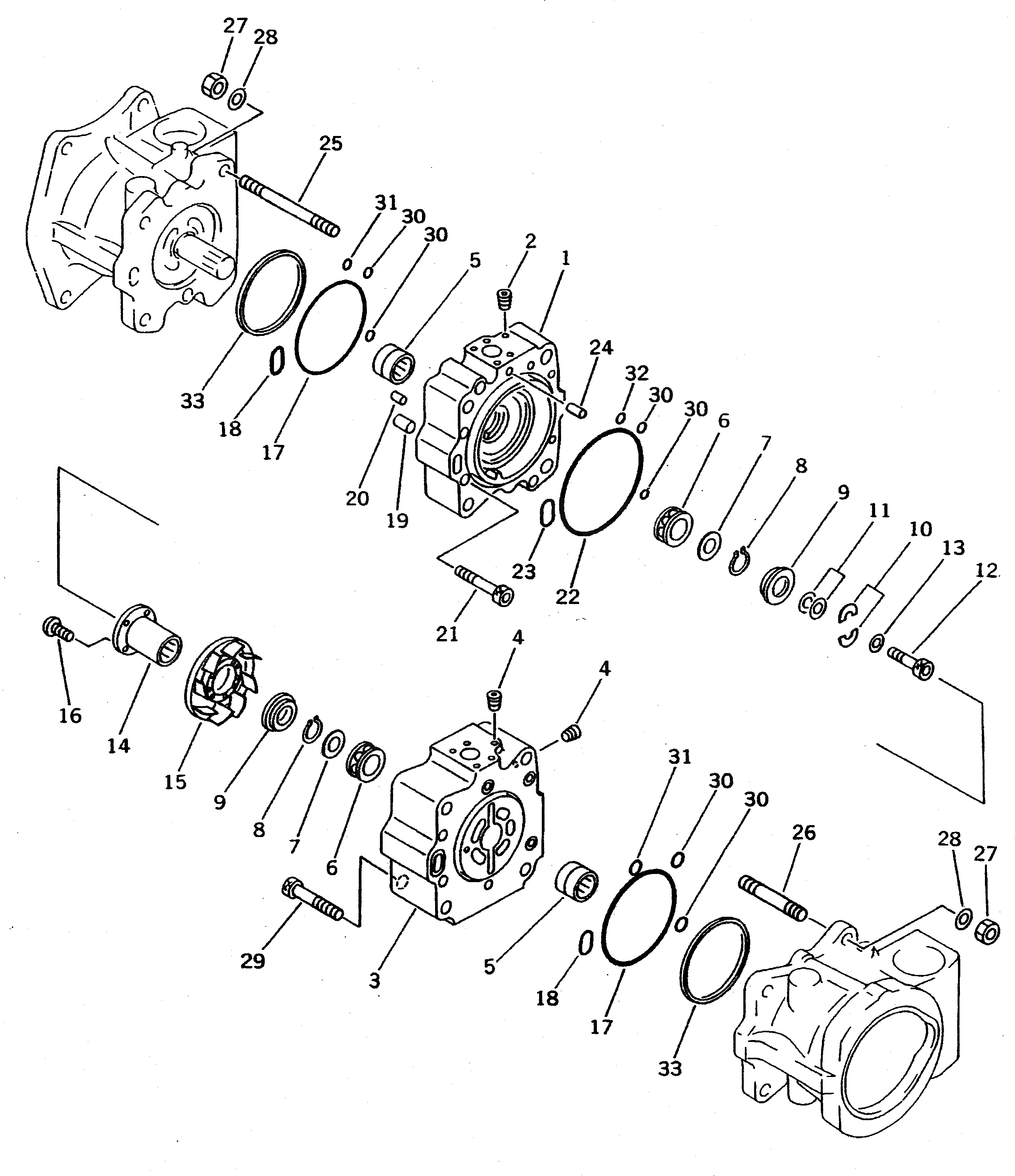

Запчасти Komatsu PC650SE-3 ГИДР. НАСОС.¤ NO. (НАСОС /) (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-01011
PUMP ASS'Y
|1
708-25-01010
PUMP ASS'Y
|1
708-25-50101
HYDRAULIC PUMP ASS'Y,(HPV 90+90)
|1
708-25-04170
PUMP SUB ASS'Y
|1
708-25-51101
PUMP SUB ASS'Y
|1
708-25-00421
END CAP ASS'Y,FRONT
|1
708-25-00290
END CAP ASS'Y,FRONT
1
CAP,FRONT
|1
CAP,FRONT
2
PLUG
|3
708-25-00440
END CAP ASS'Y,REAR
|3
708-25-00300
END CAP ASS'Y,REAR
3
CAP,REAR
|3
CAP,REAR
4
PLUG
5
708-2E-12260
BEARING
|5
708-25-12740
BEARING
6
06000-51106
BEARING
7
708-25-05140
WASHER KIT
|7
WASHER¤ 2.25MM
|7
WASHER¤ 2.55MM
|7
WASHER¤ 2.85MM
|7
WASHER¤ 3.15MM
|7
WASHER¤ 3.45MM
|7
WASHER¤ 3.75MM
8
708-25-52830
RING
9
708-25-52840
RETAINER
10
708-25-12950
PLATE
11
708-25-05021
SHIM KIT
|11
SHIM¤ 0.1MM
|11
SHIM¤ 0.15MM
|11
SHIM¤ 0.2MM
|11
SHIM¤ 0.5MM
12
706-74-40320
BOLT
13
01643-31032
WASHER
14
708-25-52550
COUPLING
15
708-25-12542
IMPELLER
16
706-73-42270
SCREW
17
07000-02135
O-RING
18
07000-03032
O-RING
19
6130-21-1910
PIN
20
720-68-19610
PIN,DOWEL
21
708-25-12530
BOLT
22
07000-05165
O-RING
23
07000-03032
O-RING
24
720-68-19610
PIN,DOWEL
25
01141-81620
STUD
26
01140-81645
STUD
27
01582-01613
NUT
28
01643-31645
WASHER
29
708-25-12530
BOLT
30
07000-11009
O-RING
31
07000-12015
O-RING
32
07000-12012
O-RING
33
708-25-13630
RING
Выбрано товаров: 55
