Запчасти Komatsu PC650SE-3 МАРКИРОВКА (ШАССИ) (ПОРТУГАЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

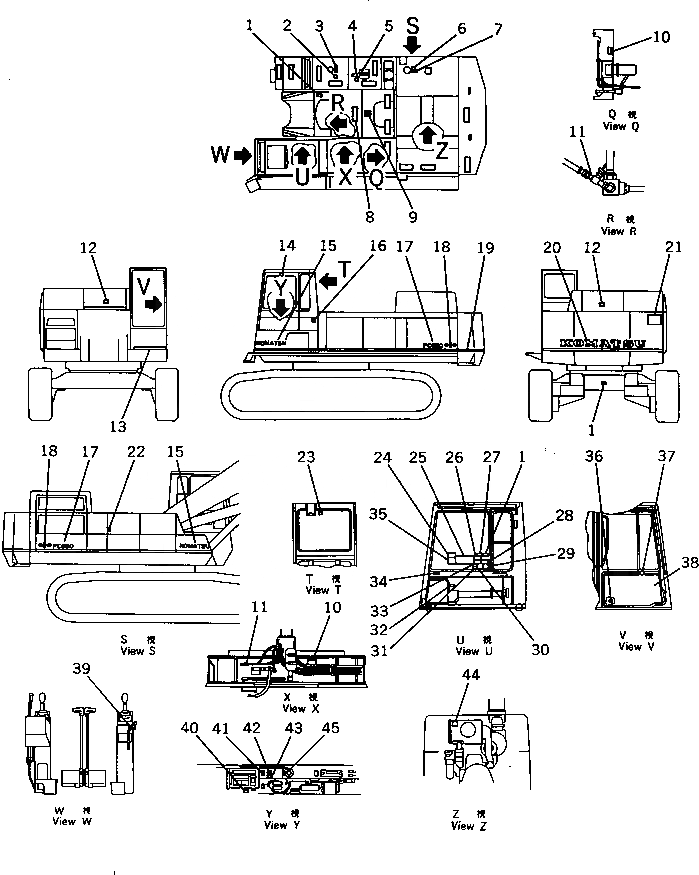

Схема запчастей Komatsu PC650SE-3 - МАРКИРОВКА (ШАССИ) (ПОРТУГАЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

209-00-53110

PLATE, CAUTION,PIPE

2

09669-00002

PLATE, CAUTION,FUEL

3

09101-02000

PLATE, CAUTION,FUEL

4

09653-02000

PLATE, SAFETY,CAP

5

09669-00003

PLATE, CAUTION,HYDRAULIC OIL

6

09668-02000

PLATE, SAFETY,RADIATOR CAP

7

09650-21101

PLATE, INSTRUCTION,WATER LEVEL

8

154-54-23260

SEAT

9

209-00-53120

PLATE, CAUTION

10

209-00-53370

PLATE, SAFETY,ACCUMULATOR

11

209-00-53270

PLATE, NAME,STOP VALVE

12

09667-02000

PLATE, SAFETY,ENGINE REVOLUTION

13

205-54-76480

PLATE

14

205-00-63770

PLATE

15

09690-50500

PLATE, MARK,KOMATSU

16

09602-22643

PLATE, NAME,(LIMITED SUPPLY)

16

01220-60408

SCREW

17

209-00-51181

MARK,PC650

17

209-00-52180

MARK,PC650SE

18

21N-00-11130

PLATE, MARK,SYMBOL

19

209-00-51280

PLATE, MARK,STRIPE

20

209-00-51170

PLATE, MARK,KOMATSU

21

09133-02000

PLATE, SAFETY

22

205-00-73360

PLATE, OPERATING,HYDRAULIC OIL LEVEL GAUGE

23

207-00-13450

PLATE

24

205-00-75540

PLATE

25

209-00-52130

PLATE, OPERATING,(FOR BACKHOE)

25

209-00-51150

PLATE, OPERATING,(FOR LOADER)

26

209-00-53250

PLATE, CAUTION,HIC PIPE

27

209-00-53241

PLATE, CAUTION,HIC

28

205-00-64230

PLATE,AIR DRAIN

29

207-00-13480

PLATE, CAUTION

30

09173-02000

PLATE, SAFETY

31

09651-02000

PLATE, SAFETY,BEFORE OPERATING

32

09699-02000

PLATE, CAUTION

33

205-00-65160

PLATE,FUEL CONTROL

34

207-00-13460

PLATE, CAUTION,WIPER MOTOR

35

205-00-71830

PLATE,MODE SELECT

36

209-54-72350

CLIP ASS'Y

37

205-00-71340

PLATE, OPERATING

38

209-54-51362

COVER

38

209-54-51361

COVER

39

09685-00002

PLATE, OPERATING,SAFETY LOCK

40

209-00-53140

PLATE, OPERATING,SWING BRAKE

41

209-00-51210

PLATE

42

209-00-53320

PLATE

43

209-00-51231

PLATE,(FOR LOADER)

43

209-00-51330

PLATE,(FOR LOADER) (OPTION)

44

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

45

09683-21060

PLATE, OPERATING,STARTING SWITCH

Выбрано товаров: 50
