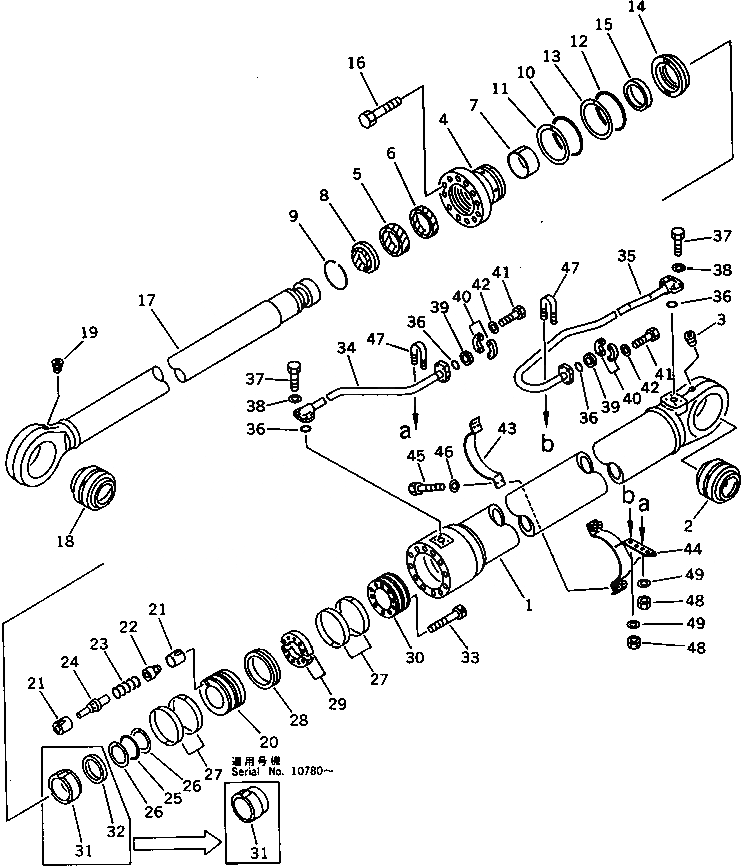

Запчасти Komatsu PC650SE-3 ЦИЛИНДР СТРЕЛЫ(SALTY МЕСТН. СПЕЦ-Я.) (КРОМЕ ЯПОН.) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

209-63-X6010

BOOM CYLINDER GROUP,L.H.

G-2

209-63-X6020

BOOM CYLINDER GROUP,R.H.

|$3

209-63-06010

CYLINDER ASS'Y

1

209-63-57340

CYLINDER

2

707-46-13010

BUSHING

3

07043-00108

PLUG,(FOR SHIPPING)

4

707-28-20610

HEAD,CYLINDER

5

707-51-14130

PACKING,ROD

6

707-51-14630

RING,BUFFER

7

707-52-11410

BUSHING

8

707-56-14080

SEAL,DUST

9

707-75-14520

RING,SNAP

10

07000-15195

O-RING

11

707-35-92050

RING,BACK-UP

12

07000-15195

O-RING

13

07001-05195

RING,BACK-UP

14

707-71-31460

COLLAR

15

707-71-11450

RING

16

01010-52790

BOLT

17

209-63-57320

ROD,PISTON

18

707-46-11520

BUSHING

19

07043-00108

PLUG,(FOR SHIPPING)

|$23

707-91-02062

PISTON ASS'Y

20

PISTON

21

SEAT,VALVE

22

VALVE

23

SPRING

24

VALVE,PISTON

25

07000-12115

O-RING

26

707-35-52860

RING,BACK-UP

27

707-39-20820

RING,WEAR

28

707-44-20080

RING,PISTON

29

707-40-20970

SPACER

30

707-37-20020

PISTON

31

707-71-51461

PLUNGER

31

707-71-51460

PLUNGER

32

707-40-20910

RETAINER

33

01252-31490

BOLT

34

209-63-57370

TUBE,L.H.

34

209-63-57470

TUBE,R.H.

35

209-63-57380

TUBE,L.H.

35

209-63-57480

TUBE,R.H.

36

07000-13038

O-RING

37

01010-51245

BOLT

38

01643-31232

WASHER

39

07378-11210

HEAD,SLEEVE

40

07371-51260

FLANGE,SPLIT

41

01010-41245

BOLT

42

01643-31232

WASHER

43

707-88-95210

BAND

44

707-88-95220

BAND

45

01010-51240

BOLT

46

01643-31232

WASHER

47

07283-23442

CLIP

48

01599-01011

NUT

49

01643-31032

WASHER
