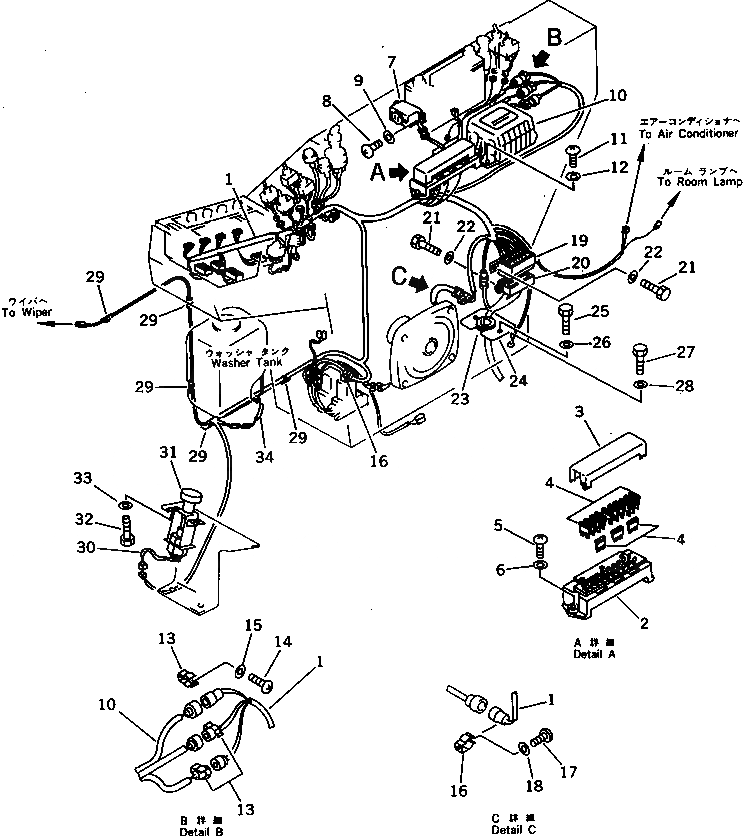

Запчасти Komatsu PC650SE-3 ПАНЕЛЬ ПРИБОРОВ (/)(№-99) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-51111

WIRING HARNESS

2

195-Z11-2280

BODY

3

195-Z11-2290

COVER

4

283-06-16190

FUSE, 10A

4

22W-06-13160

FUSE, 20A

5

01220-40616

SCREW

6

01643-30623

WASHER

7

207-06-31160

BUZZER

8

01220-40412

SCREW

9

01642-20405

WASHER

10

7861-72-3000

CONTROLLER ASS'Y

11

01220-40616

SCREW

12

01643-30623

WASHER

13

283-06-17130

CLIP

14

01220-40616

SCREW

15

01641-20608

WASHER

16

421-06-12610

CLIP

17

01220-40616

SCREW

18

01641-20608

WASHER

19

142-06-13530

CLIP

20

142-06-13520

CLIP

21

01010-51225

BOLT

22

01643-31232

WASHER

23

209-06-51470

GROMMET

24

209-06-51460

PLATE

25

01010-51020

BOLT

26

01643-31032

WASHER

27

01010-51020

BOLT

28

01643-31032

WASHER

29

205-54-72710

CLIP

30

209-06-21240

WIRING HARNESS

31

21T-06-11901

SWITCH ASS'Y

32

01010-50812

BOLT

33

01643-30823

WASHER

34

205-06-72310

WIRING HARNESS
