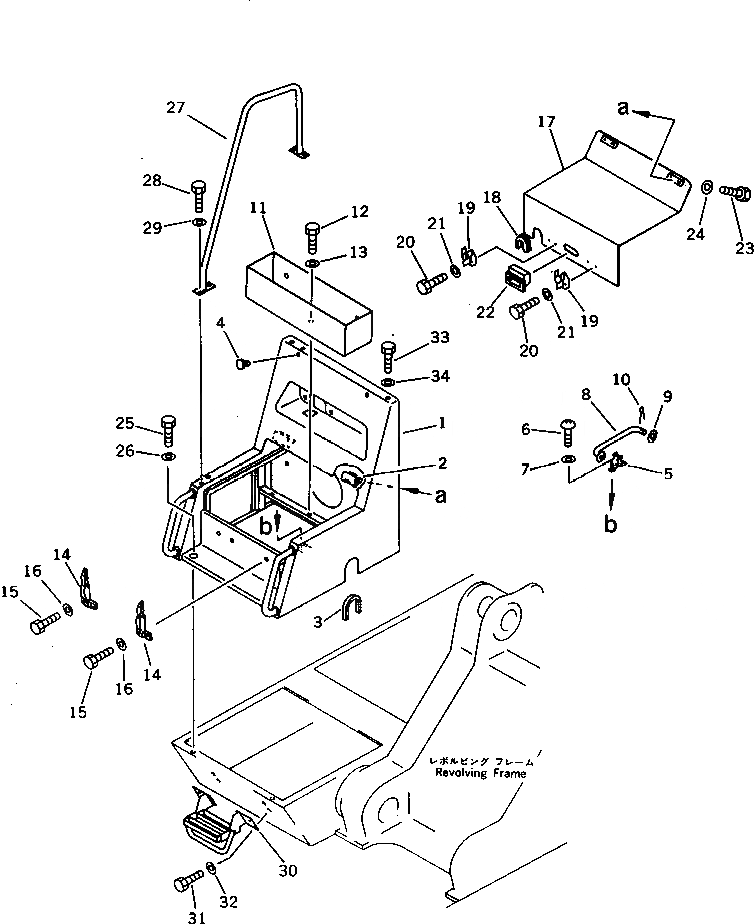

Запчасти Komatsu PC650SE-3 АККУМУЛЯТОРН. ОТСЕК ЧАСТИ КОРПУСА

1

209-54-53712

COVER

1

209-54-53711

COVER

2

205-46-63360

HINGE (WELDED)

3

208-54-12740

SEAL

4

203-54-32260

STOPPER

5

20B-54-12210

SPRING

6

01220-40408

SCREW

7

01641-20405

WASHER

8

207-54-31830

BAR

9

01643-31032

WASHER

10

04050-13018

PIN,COTTER

11

209-54-53730

CASE

12

01010-51230

BOLT

13

01643-31232

WASHER

14

205-54-76530

CATCHER

15

01010-50825

BOLT

16

01643-30823

WASHER

17

209-54-53721

COVER

18

208-54-12730

SEAL

19

205-54-67660

SUPPORT

20

01010-50825

BOLT

21

01643-30823

WASHER

22

209-54-12280

HANDLE

23

01010-51030

BOLT

24

01643-31032

WASHER

25

01010-51230

BOLT

26

01643-31232

WASHER

27

209-54-53641

HANDRAIL

28

01010-51230

BOLT

29

01643-31232

WASHER

29

175-54-34170

WASHER

30

209-54-53651

BRACKET

31

01010-51230

BOLT

32

01643-31232

WASHER

33

01010-51230

BOLT

34

01643-31232

WASHER
