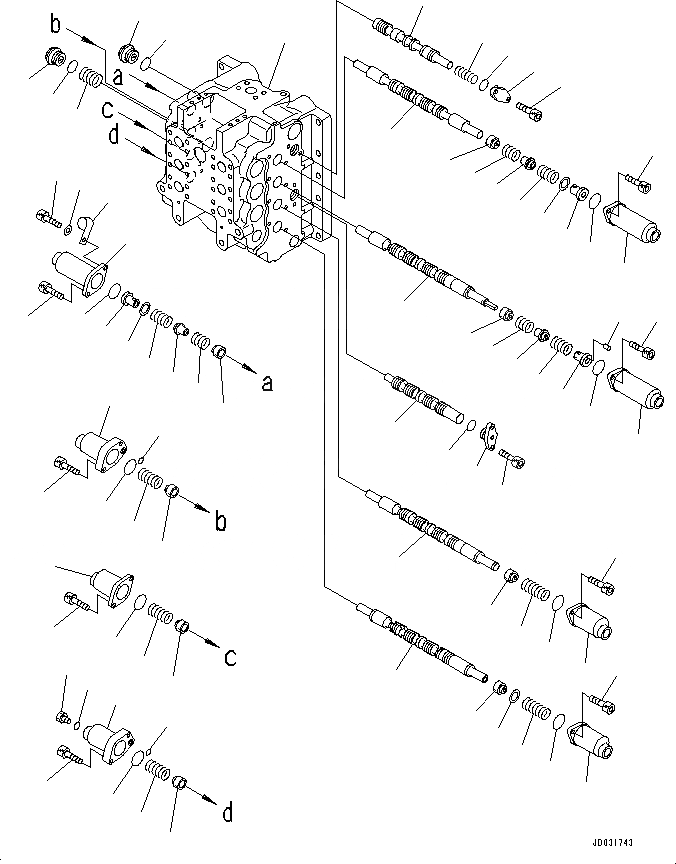

Запчасти Komatsu PC650LC-8E0 УПРАВЛЯЮЩ. КЛАПАН (9-СЕКЦИОНН.) (/8) H [ГИДРАВЛИКА]

|$1

709-99-15300

CONTROL VALVE PC600/650-8

|$2

BODY GROUP

1

VALVE BODY

2

SPOOL

3

SPOOL SUB A.

4

SPOOL SUB A.

5

SPOOL

6

SPOOL

7

SPOOL

8

08036-31210

CLIP

9

01643-30823

WASHER

10

01252-60825

BOLT

11

709-94-92510

SPRING

12

709-94-92520

SPRING

13

709-94-92590

SPRING

14

709-94-92530

RETAINER

15

709-94-92540

RETAINER

16

709-94-92770

RETAINER

17

04022-04008

PIN DOWEL

18

709-94-91130

RETAINER

19

709-94-92890

RETAINER

20

709-94-91120

SPRING

21

709-94-92940

SPRING

22

709-94-92920

SPRING

23

709-94-92550

SPACER

24

709-94-91760

SPACER

25

709-94-92610

CASE

26

709-94-92560

CASE

27

709-94-91210

CASE

28

709-94-91220

CASE

29

07430-71380

O-RING

30

07000-12010

O-RING

31

01252-60820

BOLT EXAGON SOCKET HEAD

32

01252-60830

BOLT

33

07040-12012

PLUG

34

07002-12034

O-RING

35

709-94-92470

SPRING

36

709-94-92690

SPRING

37

709-94-91490

PLATE

38

709-94-91140

PLATE
