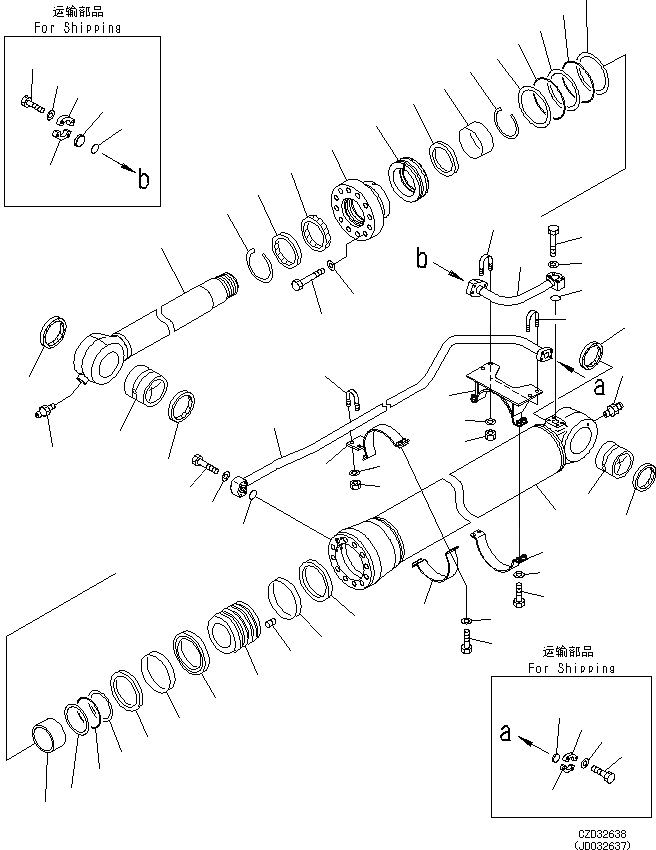

Запчасти Komatsu PC650LC-8E0 РУКОЯТЬ (9MM) (ВНУТР. ЧАСТИ, ЦИЛИНДР КОВША) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

1

707-13-18940

CYLINDER

2

707-58-13360

ROD PISTON

3

707-76-11130

BUSHING

4

07145-00110

SEAL

5

07020-00000

FITTING

6

707-76-12560

BUSHING

7

07145-00125

DUST SEAL

8

07020-00000

FITTING

9

707-71-35060

COLLAR

10

707-35-91840

RING BACK-UP

11

07000-15175

O-RING

12

707-71-61430

PLUNGER

13

707-27-18180

HEAD CYL

14

707-56-13740

SEAL

15

07179-14146

RING SNAP

16

707-51-13030

PACKING ROD

17

707-51-13650

RING BUFFER

18

707-52-91071

BUSHING

19

707-35-91840

RING BACK-UP

20

07000-15175

O-RING

21

07179-13136

RING SNAP

22

01011-82400

BOLT

23

707-88-75410

WASHER

24

707-36-18530

PISTON

25

07001-05120

RING

26

07000-B5120

O-RING

27

707-44-18250

RING PISTON

28

707-39-18510

RING WEAR

29

707-44-18920

RING

30

01310-01225

SCREW

31

707-86-13280

TUBE

32

21M-63-72280

TUBE

33

707-88-28260

BRACKET

34

707-88-28270

BRACKET

35

707-88-26140

BAND

36

07000-13035

O-RING

37

07283-33442

CLIP

38

01597-01009

NUT

39

01643-31032

WASHER

40

07371-31049

FRANGE SPLIT
