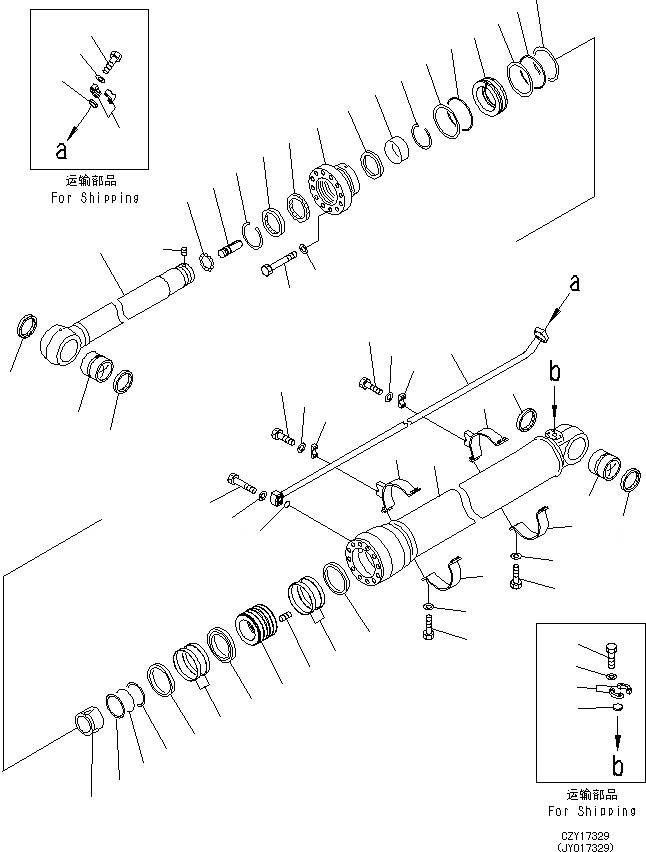

Запчасти Komatsu PC650LC-8E0 ЦИЛИНДР РУКОЯТИ(ВНУТР. ЧАСТИ) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

1

707-13-20630

CYLINDER

2

707-58-14630

ROD

3

707-76-12150

BUSHING

4

07145-00120

SEAL,DUST\((K04)\)

5

707-76-12520

BUSHING

6

07145-00125

SEAL,DUST\((K04)\)

7

707-71-61510

PLUNGER

8

707-71-32920

COLLAR

9

07000-15190

O-RING\((K04)\)

10

707-35-92020

RING,BACK-UP\((K04)\)

11

707-71-70370

PLUNGER

12

04260-00952

BALL

13

707-71-91230

CAP

14

707-27-20590

HEAD,CYLINDER

15

707-56-14740

SEAL,DUST

16

07179-14160

RING,SNAP

17

707-51-14080

PACKING,ROD

18

707-51-14650

RING,BUFFER

19

707-52-91171

BUSHING

20

07000-15190

O-RING

21

707-35-92020

RING,BACK-UP

22

707-75-14110

RING,SNAP

23

01011-82705

BOLT

24

01643-32780

WASHER

25

707-36-20450

PISTON

26

707-44-20150

RING,PISTON

27

707-39-20020

RING WEAR

28

707-44-20910

RING

29

07000-B5130

O-RING

30

07001-05130

RING

31

01310-01232

SCREW

32

707-86-00450

TUBE

33

707-88-50880

BRACKET

34

707-88-26610

BAND

35

07372-21250

BOLT

36

01643-51232

WASHER

37

07372-21060

BOLT

38

01643-51032

WASHER

39

07000-13035

O-RING

40

07371-51260

FLANGE
