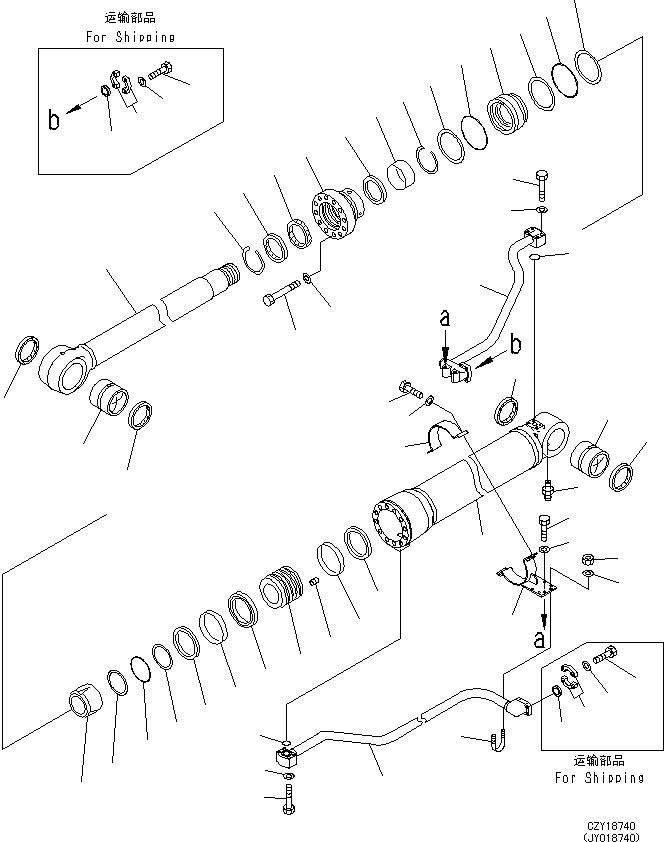

Запчасти Komatsu PC650LC-8E0 ЦИЛИНДР СТРЕЛЫ(ПРАВ.) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

1

721-13-18230

CYLINDER

2

707-58-12660

ROD PISTON

3

707-76-11160

BUSHING

4

07145-00110

SEAL

5

07020-00000

FITTING

6

707-76-12530

BUSHING

7

07145-00125

DUST SEAL

8

707-71-32900

COLLAR

9

707-35-91840

RING BACK-UP

10

07000-15175

O-RING

11

707-71-61330

PLUNGER

12

707-27-18930

HEAD CYL

13

707-56-12740

SEAL DUST

14

07179-13136

RING SNAP

15

707-51-12030

PACKING ROD

16

707-51-12650

RING BUFFER

17

707-52-90981

BUSHING

18

07000-15175

O-RING

19

707-35-91840

RING BACK-UP

20

07179-13126

RING SNAP

21

01011-82400

BOLT

22

707-88-75410

WASHER

23

707-36-18520

PISTON

24

707-44-18250

RING PISTON

25

707-39-18510

RING WEAR

26

707-44-18920

RING

27

07000-B5110

O-RING

28

07001-05110

RING BACKUP

29

01310-01225

SCREW

30

707-86-13250

TUBE

31

21M-63-52280

TUBE

32

707-88-28240

BRACKET

33

707-88-26120

BAND

34

07372-21060

BOLT

35

01643-51032

WASHER

36

07000-13035

O-RING

37

01010-81025

BOLT

38

01643-31032

WASHER

39

07283-33442

CLIP

40

01597-01009

NUT
