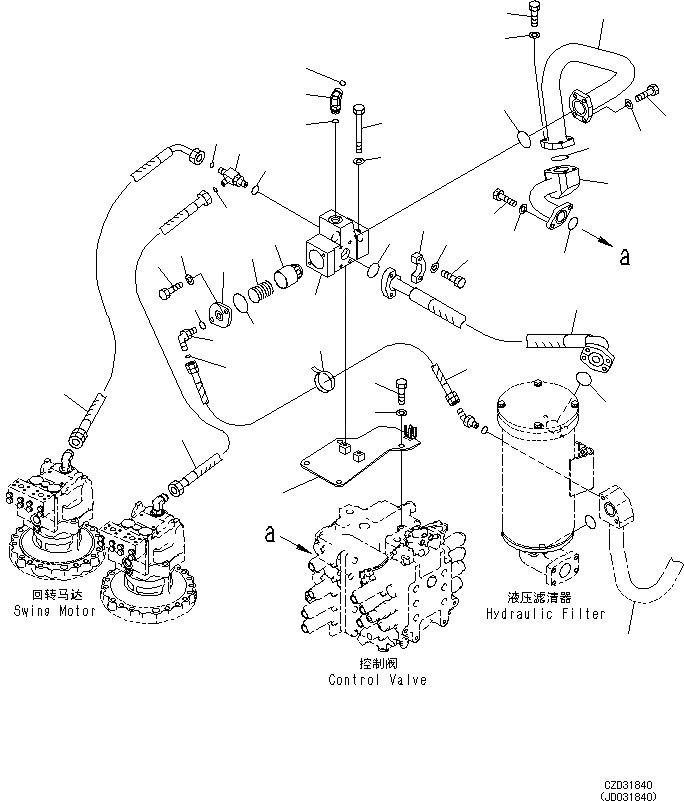

Запчасти Komatsu PC650LC-8E0 ВОЗВРАТ. ТРУБЫ H [ГИДРАВЛИКА]

1

21M-62-16182

BRACKET

2

01010-81230

BOLT

3

01643-31232

WASHER

|$4

21M-60-31221

VALVE A.

4

21M-60-31231

BODY

5

21M-60-11420

FLANGE

6

01010-81230

BOLT

7

01643-31232

WASHER

8

207-60-51460

POPPET

9

209-60-52320

SPRING

10

07000-12060

O-RING

11

01011-81225

BOLT

12

01643-31232

WASHER

13

02782-10628

ELBOW

14

02896-11018

O-RING

15

07002-12434

O-RING

16

21M-62-16151

TUBE

17

07372-21245

BOLT

18

01643-51232

WASHER

19

07000-B2060

O-RING

20

21M-62-16141

TUBE

21

01010-81240

BOLT

22

01643-31232

WASHER

23

07000-B3045

ORING

24

21M-62-14460

TEE

25

07002-13334

O-RING

26

207-62-64740

O-RING

27

21M-62-14470

HOSE

28

23B-16-31760

HOSE

29

02782-10317

ELBOW

30

07002-12034

O-RING

31

02896-11009

O-RING

32

21M-62-32220

HOSE A

33

08034-20536

BAND

34

07297-02008

HOSE

35

07000-B2060

O-RING

36

07371-32076

FLANGE

37

07372-21240

BOLT

38

01643-51232

WASHER

39

21M-62-16111

TUBE
