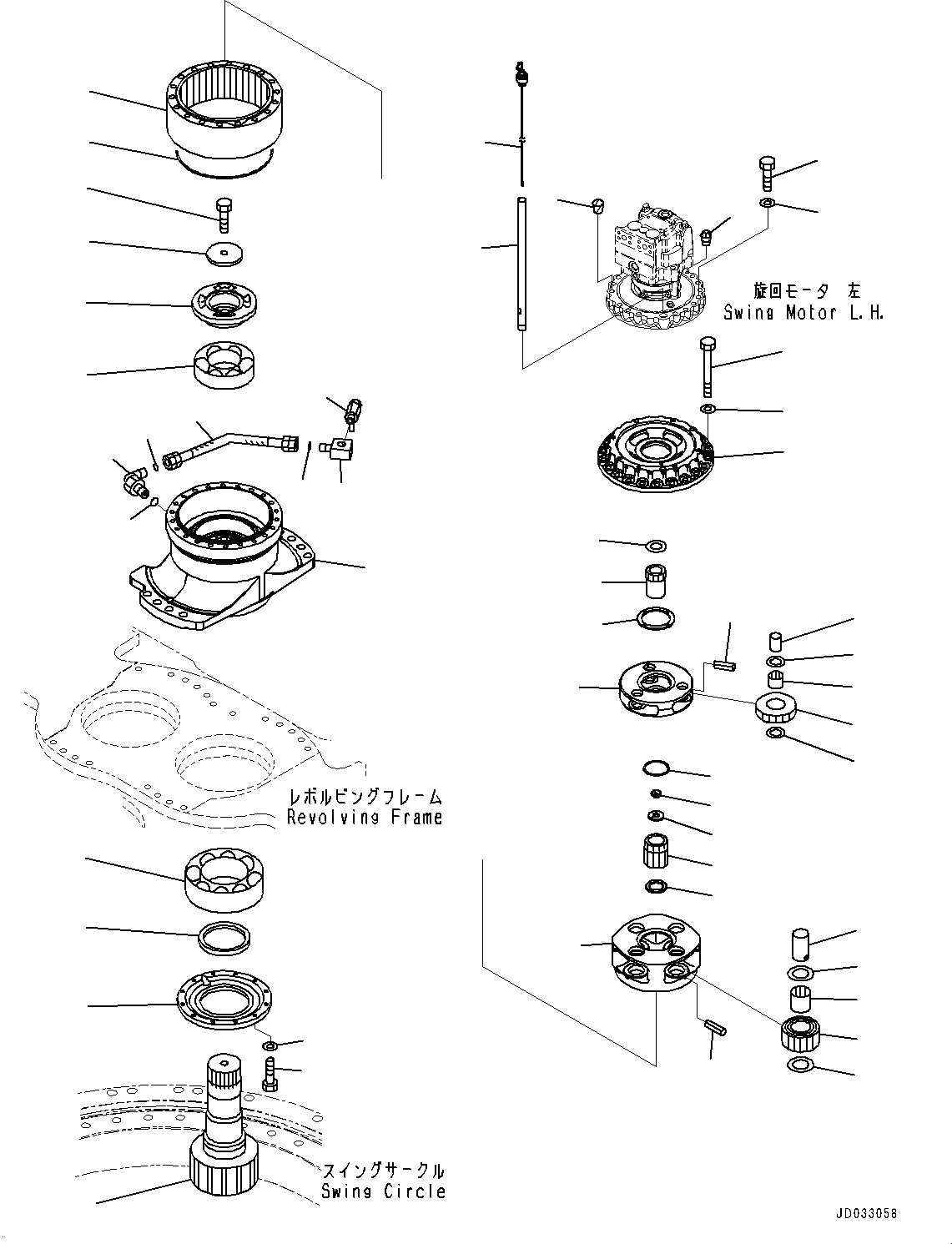

Запчасти Komatsu PC650LC-8E0 МЕХАНИЗМ ПОВОРОТА, LHS (№-) МЕХАНИЗМ ПОВОРОТА

1

01010-81460

Bolt

2

01643-31445

Washer

3

22U-26-21280

Ring

4

07049-01822

Plug

5

07042-30108

Plug

6

21M-26-21170

Case

7

06000-22222

Bearing

8

06000-22324

Bearing

9

207-26-54263

Cover

10

01010-81040

Bolt

11

01643-31032

Washer

12

207-26-61210

Seal

13

21M-26-11180

Shaft

14

207-26-62150

Coupling

15

207-26-54230

Plate

16

205-32-51211

Bolt

17

20Y-27-22170

Carrier

18

20Y-27-22140

Gear

19

20Y-27-22220

Bearing

20

20Y-27-21250

Washer, Thrust

21

20Y-27-21230

Pin

22

20Y-27-21290

Pin

23

207-26-62190

Gear

24

20Y-27-13310

Washer, Thrust

25

20Y-27-22240

Washer, Thrust

26

21M-26-11261

Gear

27

21M-26-11150

Carrier

28

21M-26-11140

Gear

29

20Y-27-22210

Bearing

30

20Y-27-21240

Washer, Thrust

31

20Y-27-21220

Pin

32

20Y-27-21280

Pin

33

21M-26-11190

Plate

34

21M-26-21130

Gear

35

20Y-27-21310

Washer

36

21M-26-11161

Cover

37

20Y-27-13281

Bolt

38

01643-31645

Washer

39

208-27-61350

Button

40

20Y-27-22280

O-ring

41

21M-26-11270

Elbow

42

02896-11018

O-ring

43

02782-10628

Elbow

44

02896-11018

O-ring

45

02762-006A4

Hose

46

07730-50004

Valve

47

07002-12434

O-ring

48

21M-26-21180

Gauge

49

21M-26-21220

Filler
