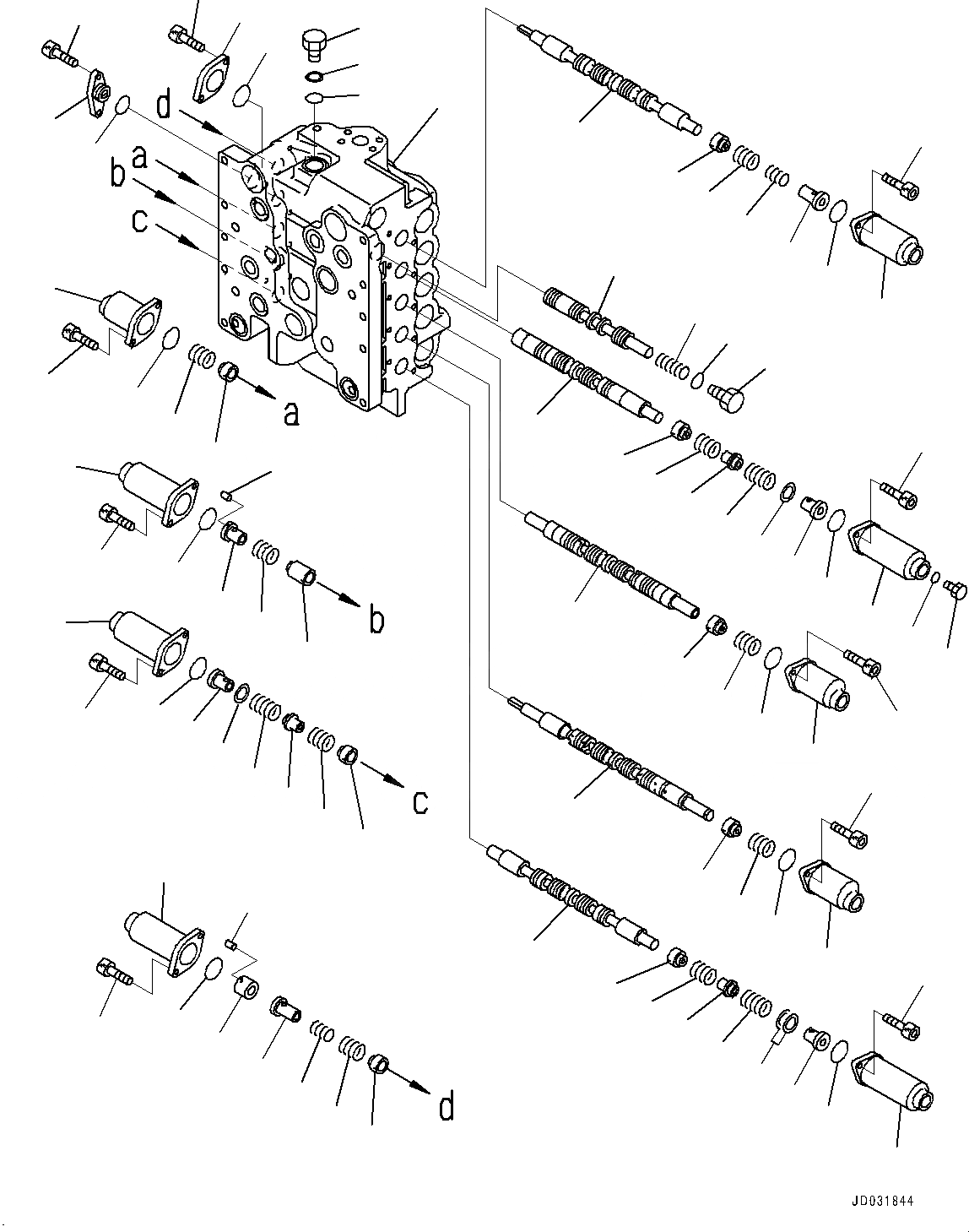

Запчасти Komatsu PC650LC-8E0 ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН, С PROVISION ДЛЯ МОЛОТА, ВНУТР. ЧАСТИ, ОСНОВН. КЛАПАН (7/9) (№-) ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН, С PROVISION ДЛЯ МОЛОТА

|$0

709-99-15300

Valve, Control

|$1

Body Group

1

Valve Body

2

Spool

3

Spool

4

Spool

5

Spool Subassembly

6

Spool

7

Spool

8

709-74-91850

Plug

9

07000-12018

O-ring

10

07001-02018

Ring, Back-up

11

709-74-92590

Plate

12

709-74-92170

O-ring

13

709-94-92510

Spring

14

709-94-92520

Spring

15

709-94-92590

Spring

16

709-94-92530

Retainer

17

709-94-92540

Retainer

18

709-94-91130

Retainer

19

709-94-92890

Retainer

20

709-94-92630

Retainer

21

709-94-92550

Spacer, T=0.5mm

22

709-94-91120

Spring

23

709-94-92940

Spring

24

709-94-91170

Retainer

25

709-94-92960

Retainer

26

709-94-92950

Spacer

27

709-94-91180

Spring

28

709-94-92770

Retainer

29

04022-04008

Pin, Dowel

30

709-94-91210

Case

31

709-94-92560

Case

32

709-94-91720

Case

33

07430-71380

O-ring

34

709-94-92610

Case

35

01252-60820

Bolt

36

07040-12012

Plug

37

07002-12034

O-ring

38

709-94-91160

Spring

39

709-94-91240

Plate

40

07000-F2022

O-ring

41

01252-60820

Bolt

42

709-74-92230

Plug

43

07002-13034

O-ring
