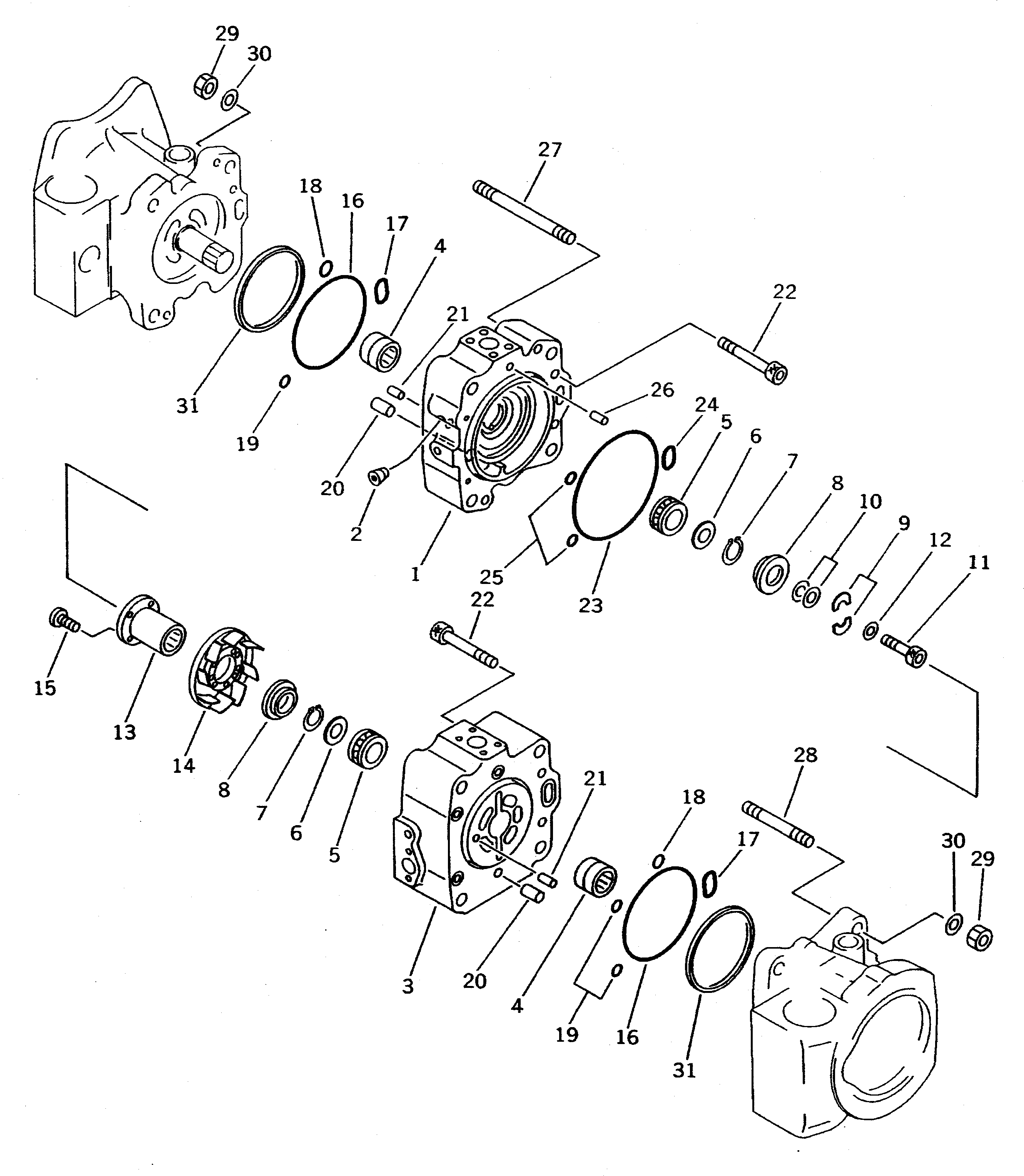

Запчасти Komatsu PC650LC-5 NO. НАСОС (/8) ГИДРАВЛИКА

|1

708-25-04081

PUMP ASS'Y,(HPV 90+90)

|1

708-25-04080

PUMP ASS'Y,(HPV 90+90)

|1

708-25-04180

PUMP SUB ASS'Y

|1

708-25-00660

END CAP ASS'Y,FRONT

1

CAP,END¤ FRONT

2

PLUG

3

708-25-52590

CAP,END¤ REAR

4

708-2E-12260

BEARING

5

06000-51106

BEARING

6

708-25-05140

WASHER KIT

|6

WASHER¤ 2.25MM

|6

WASHER¤ 2.55MM

|6

WASHER¤ 2.85MM

|6

WASHER¤ 3.15MM

|6

WASHER¤ 3.45MM

|6

WASHER¤ 3.75MM

7

708-25-52830

RING

8

708-25-52840

RETAINER

9

708-25-12950

PLATE

10

708-25-05021

SHIM KIT

|10

SHIM¤ 0.1MM

|10

SHIM¤ 0.15MM

|10

SHIM¤ 0.2MM

|10

SHIM¤ 0.5MM

11

706-74-40320

BOLT

12

01643-31032

WASHER

13

708-25-52550

COUPLING

14

708-25-12542

IMPELLER

15

706-73-42270

SCREW

16

07000-02135

O-RING

17

07000-03032

O-RING

18

07000-12015

O-RING

19

07000-11009

O-RING

20

6130-21-1910

PIN

21

720-68-19610

PIN,DOWEL

22

708-25-12530

BOLT

23

07000-05165

O-RING

24

07000-03032

O-RING

25

07000-11009

O-RING

26

720-68-19610

PIN,DOWEL

27

01141-81620

STUD

28

01140-81645

STUD

29

01582-01613

NUT

30

01643-31645

WASHER

31

708-25-13630

RING
