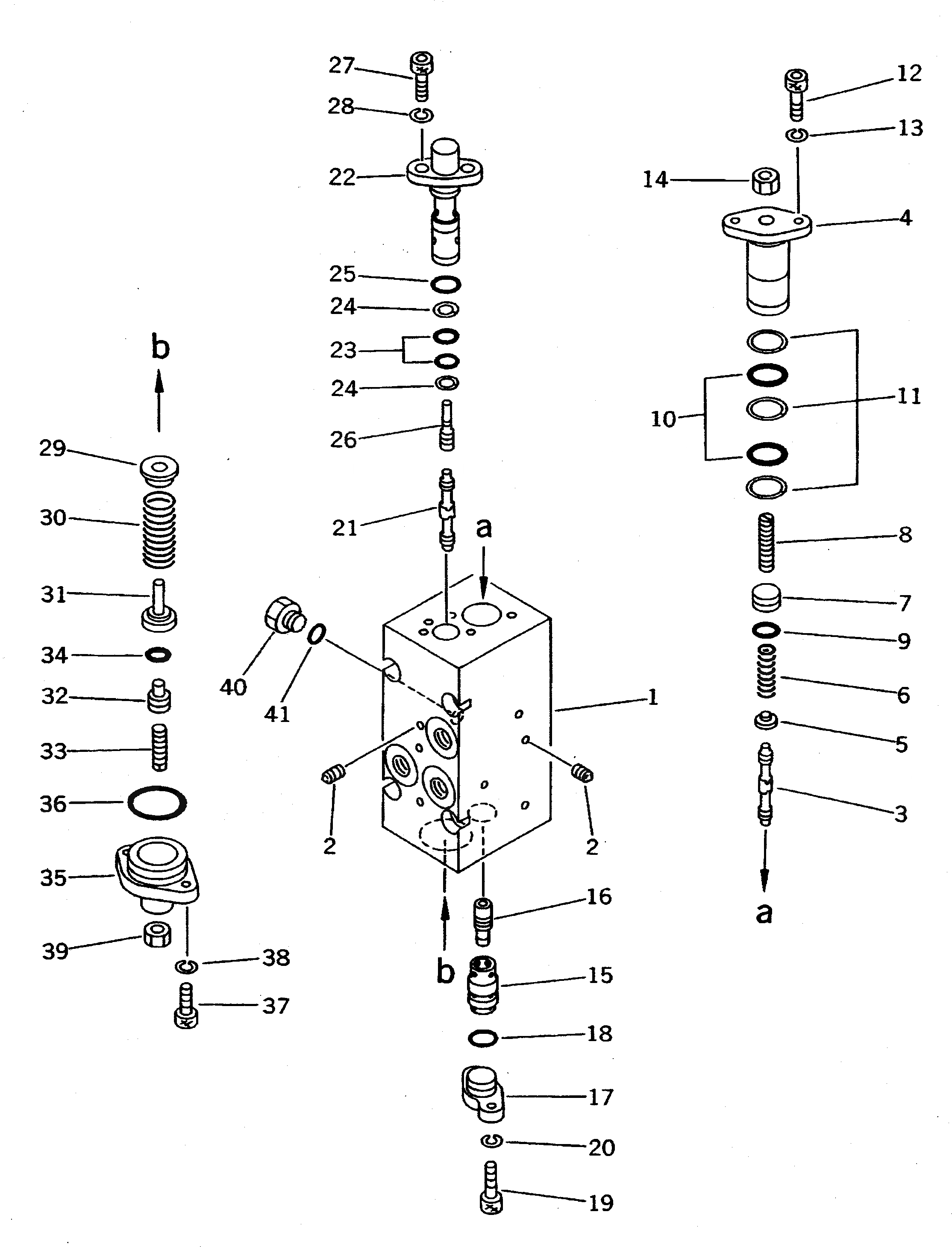

Запчасти Komatsu PC650LC-5 ПОВОРОТН. НАСОС (7/7) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
708-17-01040
PUMP ASS'Y,(HPV 160)
|1
708-17-07130
SERVO VALVE ASS'Y
|1
708-17-07530
VALVE ASS'Y,CO AND NC
|1
708-23-00430
BODY ASS'Y
1
BODY
2
EXPANDER
3
708-25-17141
SPOOL
4
708-25-17131
COVER
5
708-25-17180
SEAT
6
708-25-17690
SPRING
7
708-25-17460
PLUG
8
708-25-17430
SCREW
9
07000-02012
O-RING
10
07000-12021
O-RING
11
07001-02021
RING,BACK-UP
12
708-25-15320
BOLT
13
01602-20619
WASHER,SPRING
14
01580-10806
NUT
15
708-25-17150
SLEEVE
16
708-25-17160
PISTON
17
708-25-17170
COVER
18
07000-02014
O-RING
19
708-25-15320
BOLT
20
01602-20619
WASHER,SPRING
21
708-25-17141
SPOOL
22
708-25-17451
SLEEVE
23
07000-12012
O-RING
24
07001-02012
RING,BACK-UP
25
07000-02012
O-RING
26
708-25-17220
PISTON
27
708-25-15320
BOLT
28
01602-20619
WASHER,SPRING
29
708-25-17370
SEAT
30
708-25-17250
SPRING
31
708-25-17260
SEAT
32
708-25-17410
PLUG
33
708-25-15340
SCREW
34
07000-01009
O-RING
35
708-25-17350
COVER
36
07000-03028
O-RING
37
708-25-15320
BOLT
38
01602-20619
WASHER,SPRING
39
01580-10806
NUT
40
07040-11007
PLUG
41
07002-11023
O-RING
