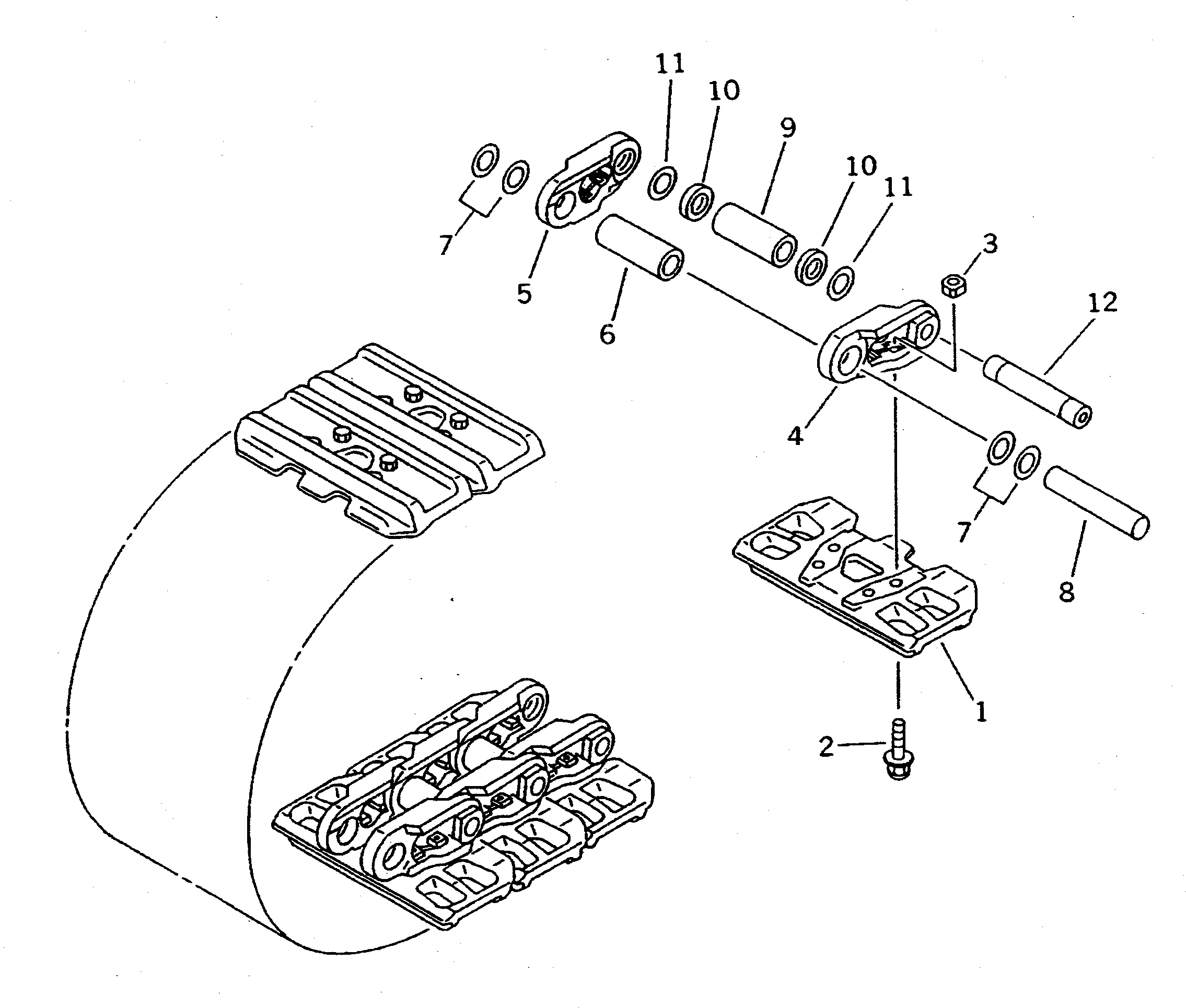

Запчасти Komatsu PC650LC-5 ГУСЕНИЦЫ ХОДОВАЯ

|$3

209-32-01732

TRACK SHOE ASS'Y

|$4

209-32-01731

TRACK SHOE ASS'Y

1

209-32-11740

SHOE

1

209-32-11213

SHOE,TRACK

2

209-32-11234

BOLT (KIT)

3

195-32-11222

NUT (KIT)

|$9

209-32-00031

TRACK LINK ASS'Y

|$10

209-32-00030

TRACK LINK ASS'Y

4

195-32-11127

LINK,TRACK, L.H.

5

195-32-11137

LINK,TRACK, R.H.

6

209-32-11140

BUSHING, REGULAR

6

195-32-22141

BUSHING,REGULAR

7

195-32-22221

WASHER

8

195-32-22151

PIN,REGULAR

9

209-32-11170

BUSHING, MASTER

9

195-32-22170

BUSHING,MASTER

10

195-32-22231

SPACER

11

195-32-22221

WASHER

12

209-32-11391

PIN, MASTER

12

209-32-11191

PIN, MASTER

1

209-32-01712

TRACK SHOE ASS'Y

1

209-32-11760

SHOE

1

209-32-11411

SHOE

2

209-32-11234

BOLT

3

195-32-11222

NUT

4

209-32-00031

TRACK LINK ASS'Y

1

209-32-01701

TRACK SHOE ASS'Y

1

209-32-11770

SHOE

1

209-32-11611

SHOE,TRACK

2

209-32-11234

BOLT (KIT)

3

195-32-11222

NUT (KIT)

4

209-32-00031

TRACK LINK ASS'Y

4

209-32-00030

TRACK LINK ASS'Y

1

209-32-05022

SHOE BOLT AND NUT K.

1

209-32-11234

BOLT

2

195-32-11222

NUT

6

195-98-09311

BUSHING,REGULAR

8

195-98-09211

PIN,REGULAR

9

195-98-09340

BUSHING,MASTER

12

209-98-09041

PIN,MASTER

6

195-98-09331

BUSHING,REGULAR

8

195-98-09231

PIN,REGULAR

9

195-98-09360

BUSHING,MASTER

12

209-98-09051

PIN,MASTER
