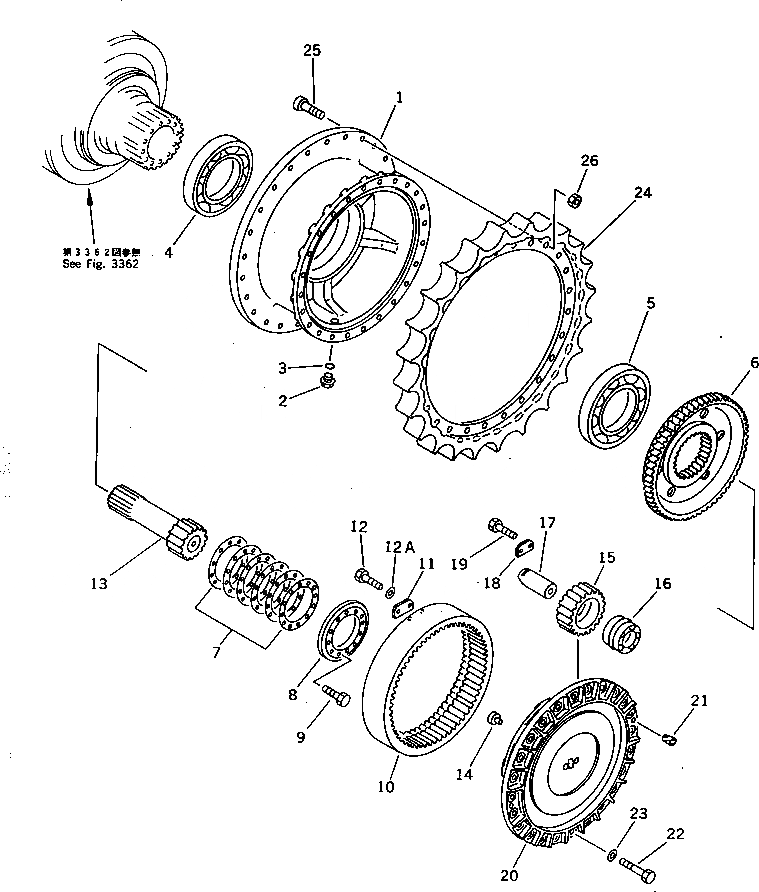

Запчасти Komatsu PC650LC-3 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА (TWO МОТОР ТИП)(/)(КРОМЕ ЯПОН.) ХОДОВАЯ

|$0

209-27-00113

FINAL DRIVE ASS'Y

|$1

209-27-00112

FINAL DRIVE ASS'Y

|$2

209-27-00111

FINAL DRIVE ASS'Y

|$3

209-27-00110

FINAL DRIVE ASS'Y

1

209-27-51150

CASE

2

07044-13620

PLUG

3

07002-03634

O-RING

4

209-27-51410

BEARING,ROLLER

5

209-27-11640

BEARING,ROLLER

6

209-27-51320

HOUSING

7

209-27-00080

SHIM ASS'Y

7

SHIM, 0.15MM

7

SHIM, 0.2MM

7

SHIM, 0.5MM

7

SHIM, 1.0MM

8

209-27-51331

RETAINER

9

01010-51650

BOLT

10

209-27-51310

GEAR

11

209-27-21270

LOCK

12

01010-51230

BOLT

12A

01643-31232

WASHER

13

209-27-51280

SHAFT

14

205-27-71360

BUTTON

15

209-27-51290

GEAR

16

209-27-51390

BEARING,ROLLER

17

209-27-51440

PIN

18

209-27-51450

LOCK

19

01010-51230

BOLT

20

209-27-51161

CARRIER

20

209-27-51160

CARRIER

21

07049-02430

PLUG,WOOD

21A

07040-13618

PLUG

21B

07002-03634

O-RING

22

01010-52465

BOLT

23

01643-32460

WASHER

24

209-27-51170

TEETH

25

195-27-31640

BOLT

26

01803-02430

NUT
