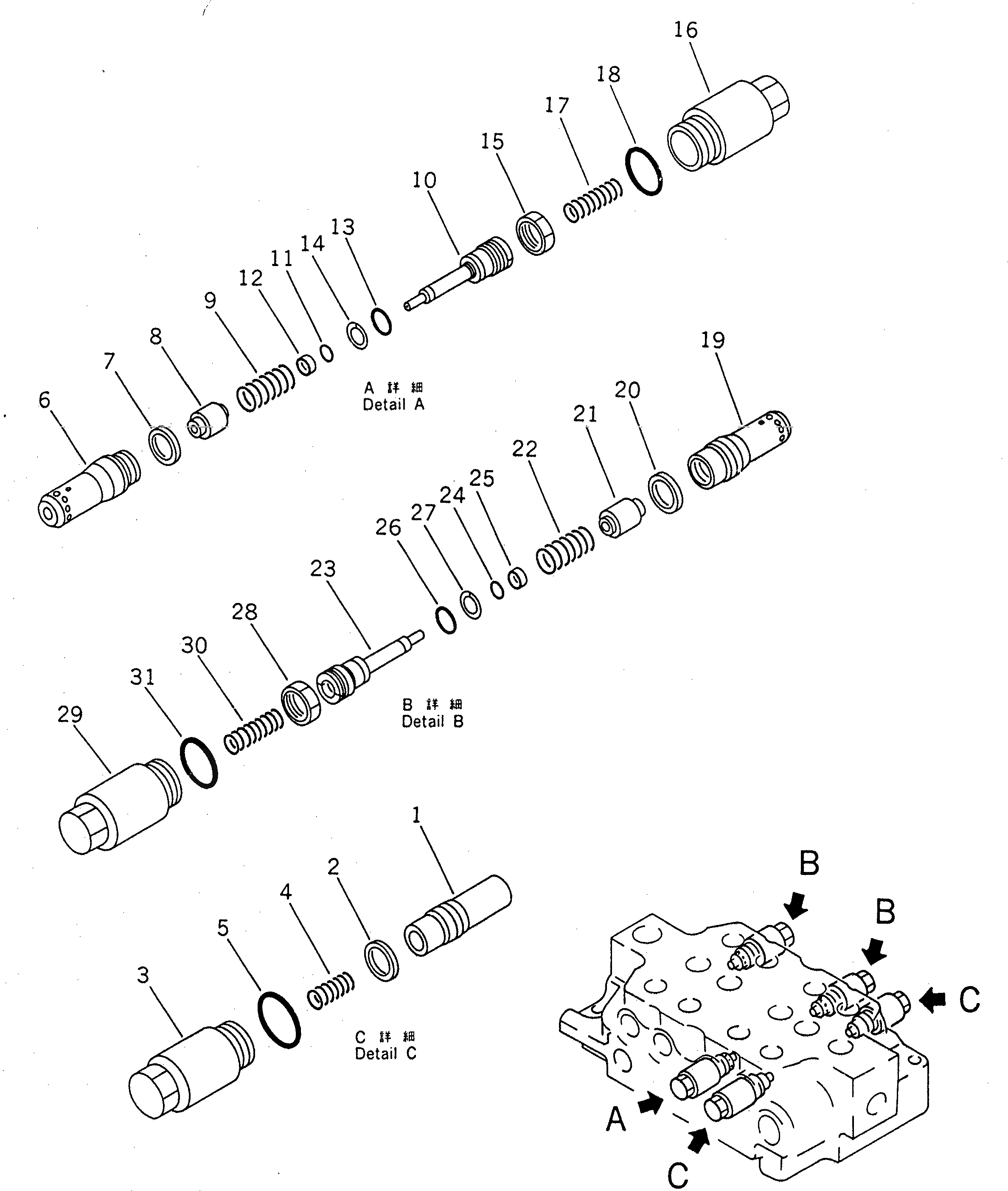

Запчасти Komatsu PC650LC-3 ПРАВ. УПРАВЛЯЮЩ. КЛАПАН (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-14-92101

VALVE ASS'Y

|$1

709-14-91101

VALVE ASS'Y,(FOR BACKHOE)

|$3

700-90-74001

VALVE ASS'Y

1

VALVE

2

SEAL

3

700-90-61211

SLEEVE

4

700-90-61170

SPRING

5

07002-03634

O-RING

|$9

709-90-63101

VALVE ASS'Y

|$10

709-90-63100

VALVE ASS'Y

6

VALVE

7

SEAL

8

POPPET

9

SPRING

10

PISTON

11

O-RING

12

SEAL

13

O-RING

14

RING,BACK-UP

15

NUT

15

NUT

16

700-90-61211

SLEEVE

17

700-90-61170

SPRING

18

07002-03634

O-RING

|$25

709-90-63101

VALVE ASS'Y

|$26

709-90-63200

VALVE ASS'Y

19

VALVE

20

SEAL

21

POPPET

22

SPRING

23

PISTON

24

O-RING

25

SEAL

26

O-RING

27

RING,BACK-UP

28

NUT

28

NUT

29

700-90-61211

SLEEVE

30

700-90-61170

SPRING

31

07002-03634

O-RING
