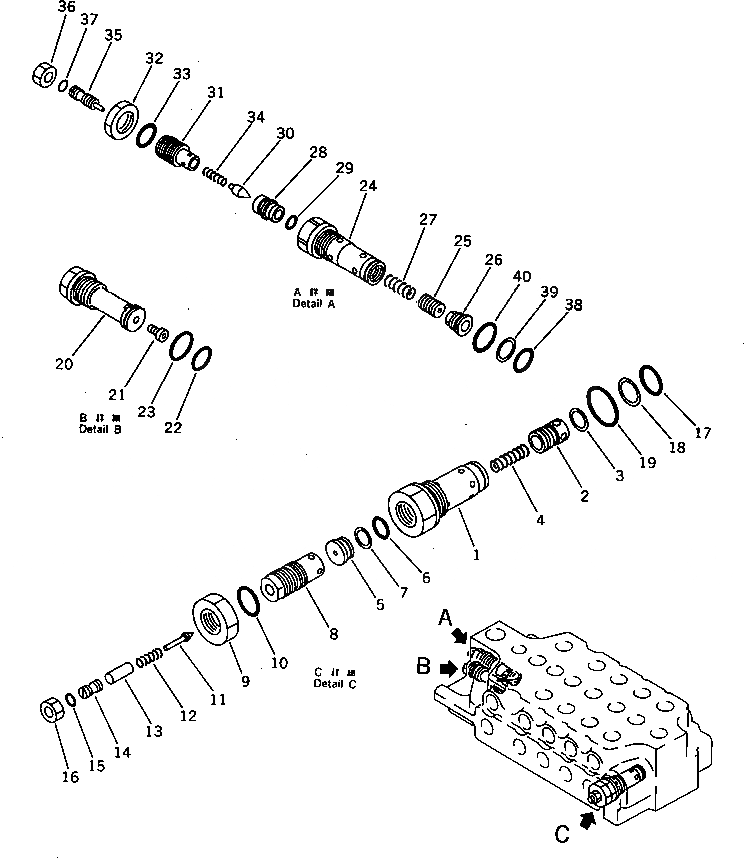

Запчасти Komatsu PC650LC-3 ЛЕВ. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
709-15-92100
VALVE ASS'Y
|$1
709-15-91101
VALVE ASS'Y,(FOR BACKHOE)
|$2
709-15-92100
VALVE ASS'Y
|$3
709-15-91101
VALVE ASS'Y,(FOR BACKHOE)
|$5
709-10-51902
VALVE ASS'Y
1
SLEEVE
2
VALVE
3
709-10-51120
RING,SNAP
4
709-10-51140
SPRING
5
709-10-51150
SEAT
6
07000-13022
O-RING
7
07001-03022
RING,BACK-UP
8
709-10-51260
HOLDER
9
01583-13621
NUT
10
07002-03634
O-RING
11
700-80-61190
POPPET
12
709-20-51231
SPRING
13
709-10-51270
RETAINER
14
700-20-51340
SCREW
15
07000-02011
O-RING
16
01582-11411
NUT
17
07000-13032
O-RING
18
07001-03032
RING,BACK-UP
19
07002-05234
O-RING
|$25
709-10-92100
ORIFICE ASS'Y
20
ORIFICE
21
SENSOR
22
700-93-11320
O-RING
23
07002-03634
O-RING
|$30
709-10-55101
VALVE ASS'Y
24
SLEEVE
25
VALVE
26
PLUG
27
709-10-51320
SPRING
28
709-10-51330
SEAT
29
07000-22016
O-RING
30
709-10-51340
POPPET
31
709-10-51360
HOLDER
32
700-90-51190
NUT
33
07002-03034
O-RING
34
709-10-51350
SPRING
35
709-10-51371
SCREW
36
01582-11411
NUT
37
07000-02011
O-RING
38
700-93-11320
O-RING
39
700-93-11330
RING,BACK-UP
40
07002-03634
O-RING
Выбрано товаров: 47
