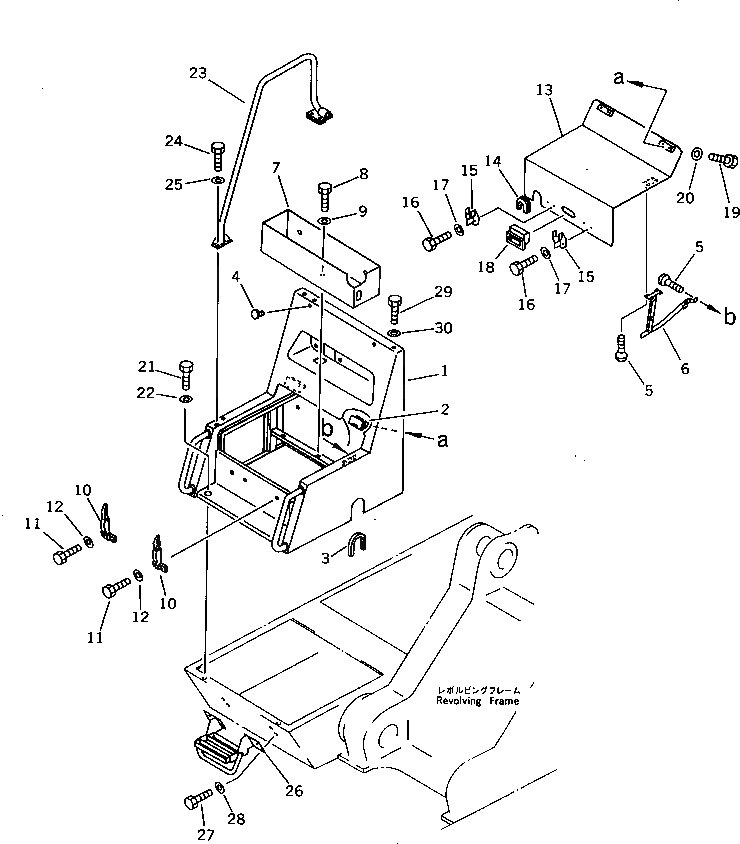

Запчасти Komatsu PC650LC-3 АККУМУЛЯТОРН. ОТСЕК (СПЕЦ-Я TBG) ЧАСТИ КОРПУСА

G-1

209-54-X2200

TBG SPEC. GROUP

1

209-54-57310

COVER

2

205-46-63360

HINGE (WELDED)

3

208-54-12740

SEAL

4

203-54-32260

STOPPER

5

01225-40510

SCREW

6

208-54-12450

STAY

7

209-54-57330

CASE

8

01010-51230

BOLT

9

01643-31232

WASHER

10

205-54-76530

CATCHER

11

01010-50825

BOLT

12

01643-30823

WASHER

13

209-54-57320

COVER

14

208-54-12730

SEAL

15

205-54-67660

SUPPORT

16

01010-50825

BOLT

17

01643-30823

WASHER

18

209-54-12280

HANDLE

19

01010-51030

BOLT

20

01643-31032

WASHER

21

01010-51230

BOLT

22

01643-31232

WASHER

23

209-54-57240

HANDRAIL

24

01010-51230

BOLT

25

01643-31232

WASHER

26

209-54-53651

BRACKET

27

01010-51230

BOLT

28

01643-31232

WASHER

29

01010-51230

BOLT

30

01643-31232

WASHER
