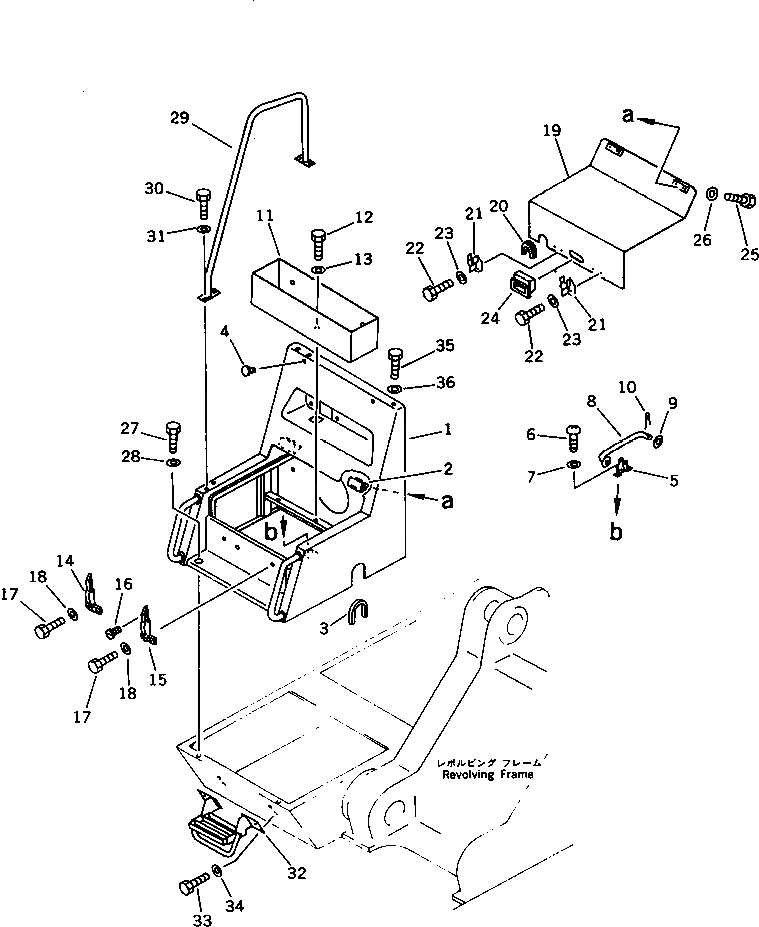

Запчасти Komatsu PC650LC-3 АККУМУЛЯТОРН. ОТСЕК (ДЛЯ АНТИВАНДАЛЬН.) ЧАСТИ КОРПУСА

1

209-54-53712

COVER

1

209-54-53711

COVER

2

205-46-63360

HINGE (WELDED)

3

208-54-12740

SEAL

4

203-54-32260

STOPPER

5

20B-54-12210

SPRING

6

01220-40408

SCREW

7

01641-20405

WASHER

8

207-54-31830

BAR

9

01643-31032

WASHER

10

04050-13018

PIN,COTTER

11

209-54-53730

CASE

12

01010-51230

BOLT

13

01643-31232

WASHER

14

205-54-76530

CATCHER

G-1

209-54-X4300

VANDALISM GROUP

15

205-54-76260

CATCHER

16

205-54-76280

ROTOR ASS'Y

17

01010-50825

BOLT

18

01643-30823

WASHER

19

209-54-53721

COVER

20

208-54-12730

SEAL

21

205-54-67660

SUPPORT

22

01010-50825

BOLT

23

01643-30823

WASHER

24

209-54-12280

HANDLE

25

01010-51030

BOLT

26

01643-31032

WASHER

27

01010-51230

BOLT

28

01643-31232

WASHER

29

209-54-53641

HANDRAIL

30

01010-51230

BOLT

31

01643-31232

WASHER

31

175-54-34170

WASHER

32

209-54-53651

BRACKET

33

01010-51230

BOLT

34

01643-31232

WASHER

35

01010-51230

BOLT

36

01643-31232

WASHER
