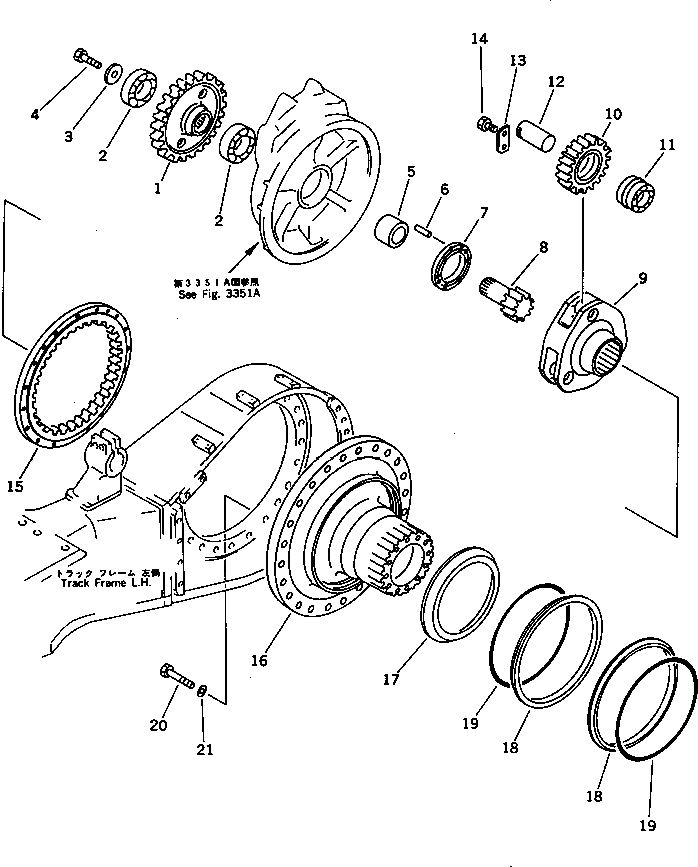

Запчасти Komatsu PC650LC-3 КОРПУС КОНЕЧН. ПЕРЕДАЧИ И ЗВЕЗДОЧКА (/) (ДЛЯ ЯПОН.)(№-) ХОДОВАЯ

|1

209-27-00131

FINAL DRIVE ASS'Y

|1

209-27-00130

FINAL DRIVE ASS'Y

1

209-27-51551

GEAR

2

06044-00216

BEARING,ROLLER

3

209-27-51220

HOLDER

4

01010-51645

BOLT

5

209-27-51230

SPACER

6

04020-00616

PIN,DOWEL

7

209-27-51460

WASHER,THRUST

8

209-27-51241

SHAFT

9

209-27-51270

CARRIER

10

209-27-51250

GEAR

11

209-27-51380

BEARING,ROLLER

12

209-27-51430

PIN

13

21T-26-11420

LOCK

14

01010-51220

BOLT

15

209-27-51263

GEAR

16

209-27-51142

HOUSING

17

209-27-51420

SPACER

|18

17M-27-00101

FLOATING SEAL ASS'Y

|18

17M-27-00100

FLOATING SEAL ASS'Y

18

17M-27-00110

SEAL RING ASS'Y

|18

RING,SEAL

19

421-33-00030

O-RING ASS'Y

|19

180-27-00100

O-RING ASS'Y

|19

O-RING

|19

O-RING

20

01010-52480

BOLT

21

01643-32460

WASHER
