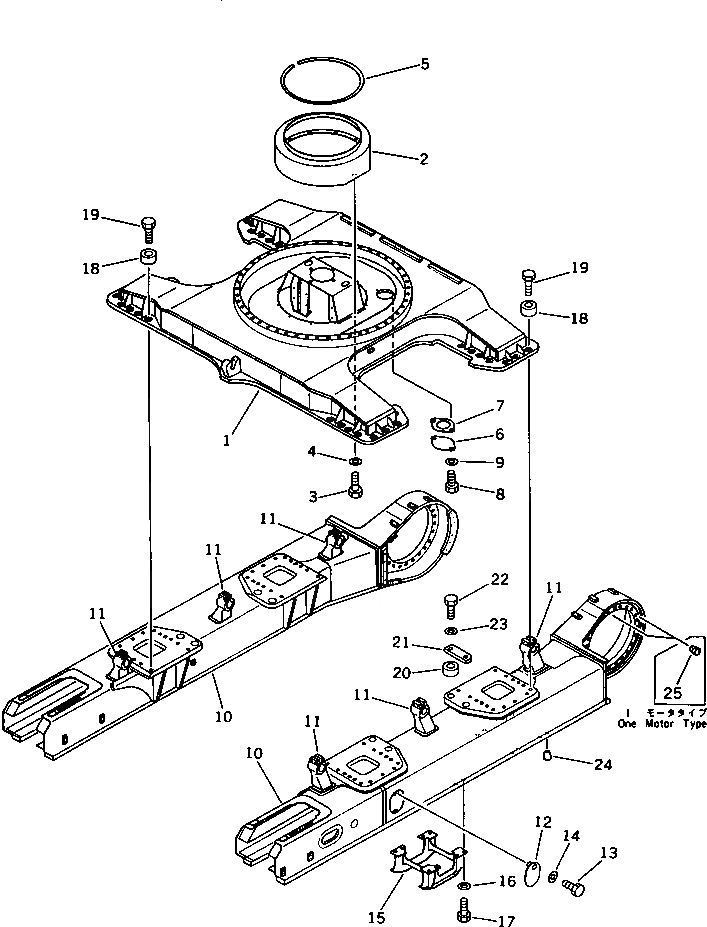

Запчасти Komatsu PC650LC-3 ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

1

209-30-52513

FRAME,(FOR JAPAN)

|1

209-30-52511

FRAME,(FOR JAPAN)

|1

209-30-52510

FRAME,(FOR JAPAN)

|1

209-30-52513

FRAME,(1-MOTOR TYPE) (EXCEPT JAPAN)

|1

209-30-52511

FRAME,(1-MOTOR TYPE) (EXCEPT JAPAN)

|1

209-30-52512

FRAME,(2-MOTOR TYPE) (EXCEPT JAPAN)

|1

209-30-52510

FRAME,(2-MOTOR TYPE) (EXCEPT JAPAN)

2

209-30-11362

COVER

3

01010-51230

BOLT

4

01643-31232

WASHER

5

209-30-11341

SEAL

6

205-30-71181

COVER

7

205-30-71191

GASKET

8

01010-51225

BOLT

9

01643-31232

WASHER

10

209-30-52540

FRAME,L.H.

|10

209-30-52521

FRAME,L.H.

|10

209-30-52520

FRAME,L.H.

|10

209-30-52550

FRAME,R.H.

|10

209-30-52531

FRAME,R.H.

|10

209-30-52530

FRAME,R.H.

11

209-30-51150

SUPPORT (WELDED)

12

209-30-11220

PLATE

13

01010-51225

BOLT

14

01643-31232

WASHER

15

209-30-11187

GUARD

|15

209-30-11186

GUARD

16

208-30-11380

SPACER

17

01010-82495

BOLT

18

209-30-11330

SPACER

19

209-09-51110

BOLT

20

209-30-11320

COLLAR

21

209-30-51140

PLATE

22

209-09-11310

BOLT

23

01643-33690

WASHER

24

07049-02430

PLUG,(WITHOUT FINAL GUARD)

25

07049-03038

PLUG,(1-MOTOR TYPE) (EXCEPT JAPAN)
