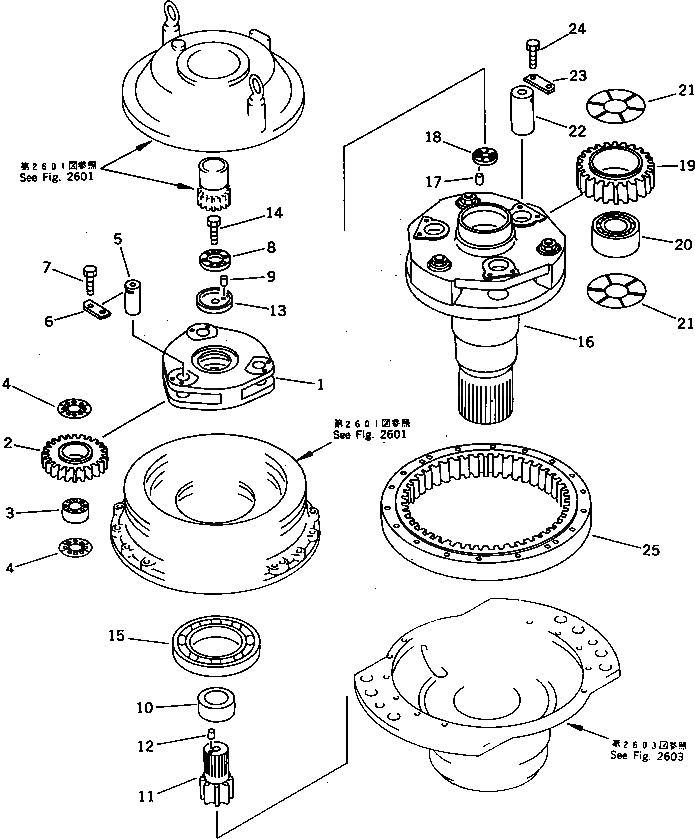

Запчасти Komatsu PC650LC-3 МЕХАНИЗМ ПОВОРОТА (/)(№-8) ПОВОРОТН. СИСТЕМА

|1

209-26-00020

SWING MACHINERY A.

1

209-26-51190

CARRIER

2

209-26-11190

GEAR

3

21T-26-11380

BEARING,ROLLER

4

21T-26-11390

WASHER,THRUST

5

209-26-51160

PIN

6

21T-26-11420

LOCK

7

01010-51225

BOLT

8

21T-26-11340

WASHER,THRUST

9

04020-00616

PIN,DOWEL

10

209-26-51180

COLLAR

11

209-26-51170

SHAFT

12

04020-00616

PIN,DOWEL

13

21T-26-11330

HOLDER

14

01010-51640

BOLT

15

06043-00232

BEARING,ROLLER

16

209-26-52100

CARRIER

17

04020-00616

PIN,DOWEL

18

209-26-51220

WASHER,THRUST

19

21T-26-11180

GEAR

20

21T-26-11230

BEARING,ROLLER

21

21T-26-11220

WASHER,THRUST

22

209-26-51150

PIN

23

195-27-12160

LOCK

24

01010-51225

BOLT

25

209-26-51130

GEAR
