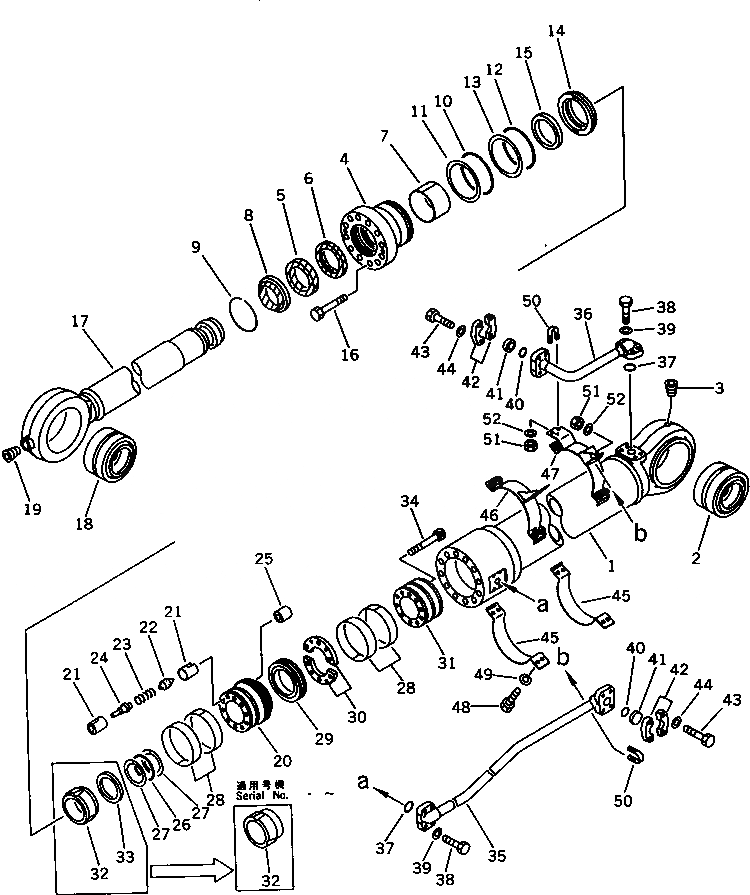

Запчасти Komatsu PC650LC-3 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
209-63-X2042
BUCKET CYLINDER G.
G-1
209-63-X2041
BUCKET CYLINDER G.
G-1
209-63-X2040
BUCKET CYLINDER G.
|1
209-63-02042
CYLINDER ASS'Y
|1
209-63-02041
CYLINDER ASS'Y
|1
209-63-02040
CYLINDER ASS'Y
1
209-63-72540
CYLINDER
2
707-46-13010
BUSHING
3
07043-00108
PLUG
4
707-28-18510
HEAD,CYLINDER
5
707-51-13130
PACKING,ROD (KIT)
6
707-51-13630
RING,BUFFER (KIT)
7
707-52-91050
BUSHING
|7
707-52-11310
BUSHING
8
707-56-13520
SEAL,DUST (KIT)
9
07179-14146
RING
|9
707-75-13012
RING,SNAP
10
07000-15175
O-RING (KIT)
11
707-35-91850
RING,BACK-UP (KIT)
12
07000-15175
O-RING (KIT)
13
07001-05175
RING,BACK-UP (KIT)
14
707-71-31360
COLLAR
15
707-71-11350
RING
16
01010-52485
BOLT
17
209-63-72520
ROD,PISTON
18
707-46-11520
BUSHING
19
07043-00108
PLUG
|20
707-91-01812
PISTON ASS'Y
|20
707-91-01811
PISTON ASS'Y
20
707-37-18011
PISTON
|20
PISTON
21
SEAT
22
VALVE
23
SPRING
24
VALVE,PISTON
25
707-71-91410
SPACER
26
07000-12110
O-RING (KIT)
27
707-35-52950
RING,BACK-UP (KIT)
28
707-39-18820
RING,WEAR (KIT)
29
707-44-18180
RING,PISTON (KIT)
|29
707-44-18080
RING,PISTON (KIT)
30
707-40-18970
SPACER
31
707-37-18020
PISTON
32
707-71-51361
PLUNGER
|32
707-71-51360
PLUNGER
33
707-40-18910
RETAINER
34
01252-31485
BOLT
35
209-63-72570
TUBE
36
209-62-58410
TUBE
37
07000-13038
O-RING (KIT)
38
01010-51245
BOLT
39
01643-31232
WASHER
40
07000-13038
O-RING
41
07378-11210
HEAD,SLEEVE
42
07371-51260
FLANGE,SPLIT
43
01010-51245
BOLT
44
01643-31232
WASHER
45
707-88-96050
BAND
46
209-62-58560
BRACKET
47
707-88-96061
BAND
48
01010-51240
BOLT
49
01643-31232
WASHER
50
07283-23442
CLIP
51
01599-01011
NUT
52
01643-31032
WASHER
Выбрано товаров: 65
