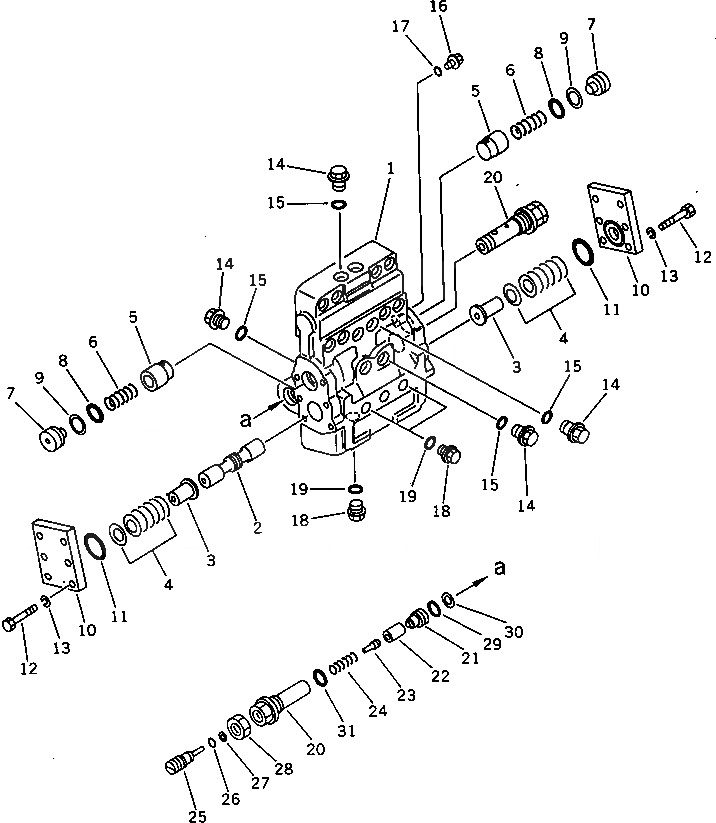

Запчасти Komatsu PC650LC-3 ХОД ТОРМОЗНОЙ КЛАПАН (ДЛЯ ЯПОН.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

702-67-00200

BRAKE VALVE ASS'Y,TRAVEL

|1

706-77-00020

BODY ASS'Y

1

BODY

2

SPOOL

3

706-77-72370

RETAINER

4

706-76-71420

SPRING

5

706-77-72130

VALVE

6

706-77-72140

SPRING

7

706-77-72260

SEAT

8

07000-13038

O-RING

9

07001-03038

RING,BACK-UP

10

706-77-72380

COVER

11

07000-13050

O-RING

12

01010-51255

BOLT

13

01602-21236

WASHER,SPRING

14

706-77-72170

PLUG

15

07002-12434

O-RING

16

706-75-71420

PLUG

17

07002-10823

O-RING

18

706-73-71450

PLUG

19

07002-11423

O-RING

|20

702-77-00100

VALVE ASS'Y

20

SLEEVE

21

SEAT

22

VALVE

23

PISTON

24

SPRING

25

SCREW

26

O-RING

27

RING,BACK-UP

28

NUT

29

07000-22020

O-RING

30

07001-02010

RING,BACK-UP

31

07002-13034

O-RING
