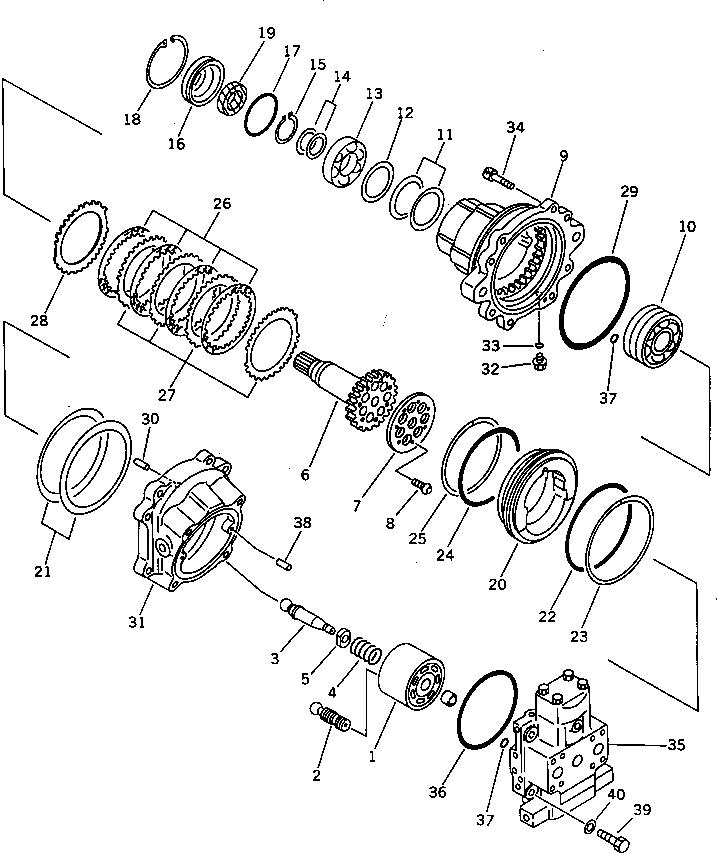

Запчасти Komatsu PC650LC-3 МОТОР ХОДА (/) (ДЛЯ ЯПОН.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-87-01010

TRAVEL MOTOR ASS'Y

|1

706-87-40104

MOTOR ASS'Y

1

BLOCK,CYLINDER

2

PISTON SUB ASS'Y

3

SHAFT

4

SPRING

5

RING

6

SHAFT,DRIVE

7

RETAINER

8

SCREW

9

CASE

10

BEARING

11

SPRING

12

SEAT

13

BEARING

14

SPACER KIT

|14

SPACER¤ 2.3MM

|14

SPACER¤ 2.5MM

|14

SPACER¤ 2.7MM

15

RING,SNAP

16

706-77-42060

COVER

17

07000-02115

O-RING

18

04071-00130

RING,SNAP

19

706-77-42950

SEAL,OIL

20

PISTON

21

SPRING

22

O-RING

23

RING,BACK-UP

24

O-RING

25

RING,BACK-UP

26

PLATE

27

DISC

28

PLATE

29

O-RING

30

PIN,DOWEL

31

CASE

32

706-73-71450

PLUG

33

07002-11423

O-RING

34

BOLT

35

706-87-00010

END COVER SUB ASS'Y

36

O-RING

37

O-RING

38

PIN,DOWEL

39

BOLT

40

WASHER
