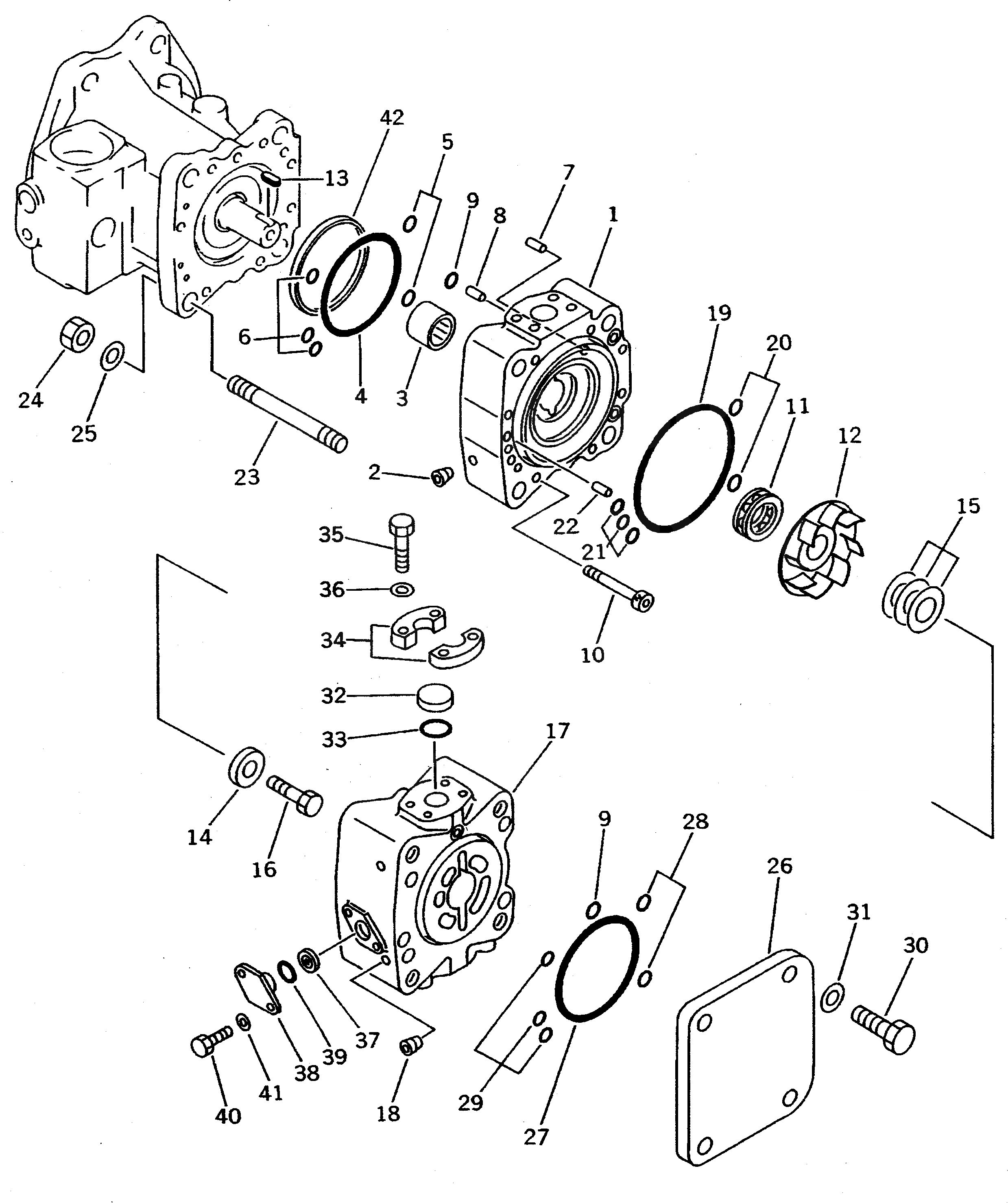

Запчасти Komatsu PC650LC-3 ГИДР. НАСОС.¤ ПОВОРОТН. (НАСОС /) (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-17-01031
PUMP ASS'Y
|1
708-17-01030
PUMP ASS'Y (HPV 160)
|1
708-17-10100
PUMP ASS'Y (HPV 160)
|1
708-17-01140
PUMP SUB ASS'Y
|1
708-17-01110
PUMP SUB ASS'Y
|1
708-17-21100
PUMP SUB ASS'Y
|1
708-27-00480
END CAP ASS'Y,FRONT
|1
708-27-00260
END CAP ASS'Y,FRONT
|1
708-27-00180
END CAP ASS'Y,FRONT
1
CAP,END¤ FRONT
|1
CAP,END¤ FRONT
|1
CAP,END¤ FRONT
2
PLUG
3
708-27-12880
BEARING
|3
708-27-12740
BEARING
4
708-27-12530
O-RING
5
07000-03025
O-RING
|5
07000-12015
O-RING
6
07000-12012
O-RING
7
708-18-13230
PIN
8
708-25-12330
JOINT
9
07000-12015
O-RING
10
708-27-12550
BOLT
11
06000-51109
BEARING
12
708-17-22610
IMPELLER
13
04000-00515
KEY
14
708-18-12860
PLATE
15
708-27-00220
SHIM KIT
|15
SHIM
|15
SHIM
|15
SHIM
16
708-27-14490
BOLT
|17
708-27-00270
END CAP ASS'Y,REAR
|17
708-27-00190
END CAP ASS'Y,REAR
17
CAP,END¤ REAR
|17
CAP,END¤ REAR
18
PLUG
19
708-27-12540
O-RING
20
07000-03025
O-RING
|20
07000-12015
O-RING
21
07000-12012
O-RING
22
04020-01024
PIN,DOWEL
23
01141-82040
STUD
24
708-27-12570
NUT
25
01643-32060
WASHER
26
708-17-22541
COVER
|26
708-17-22540
COVER
27
708-27-12530
O-RING
28
07000-03025
O-RING
|28
07000-12015
O-RING
29
07000-12012
O-RING
30
01010-62055
BOLT
31
01643-32060
WASHER
32
07378-11210
HEAD,SLEEVE
33
07000-13038
O-RING
34
07371-41260
FLANGE
35
01010-51245
BOLT
36
01643-31232
WASHER
37
720-68-15240
FILTER
38
708-27-22530
FLANGE
39
07000-02021
O-RING
40
01010-51025
BOLT
|40
01010-31025
BOLT
41
01643-31032
WASHER
42
708-27-13630
RING
Выбрано товаров: 65
