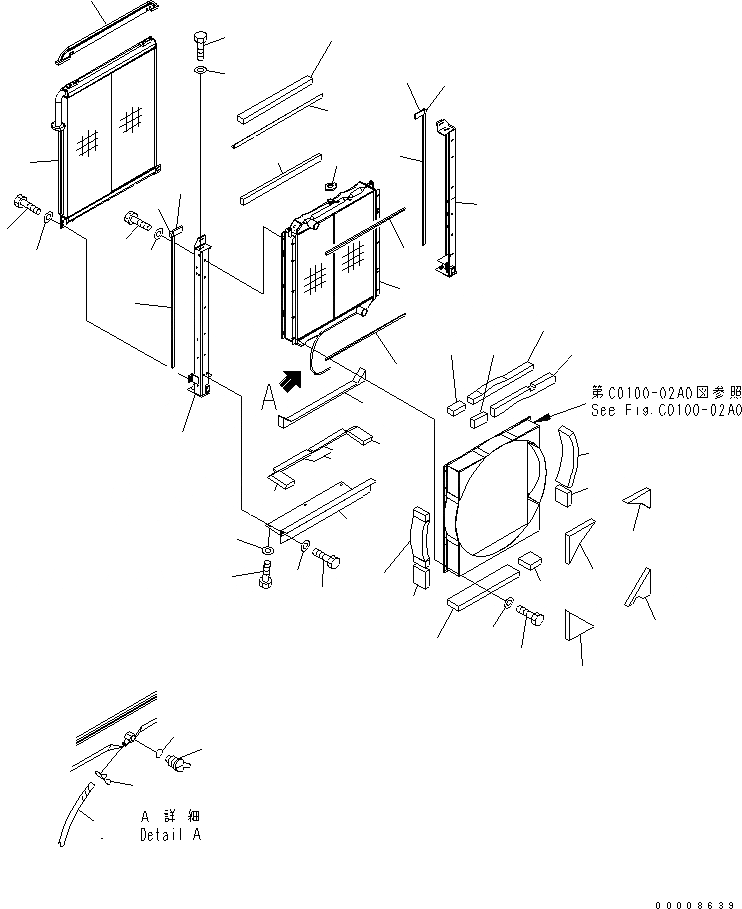

Запчасти Komatsu PC650-7-M1 ОХЛАЖД-Е (РАДИАТОР И МАСЛООХЛАДИТЕЛЬ) СИСТЕМА ОХЛАЖДЕНИЯ

1

21M-03-15110

RADIATOR CORE A.

2

20Y-03-22110

CAP

3

205-03-62660

PLUG

4

07000-11007

O-RING

5

20X-03-21170

HOSE

6

206-03-43340

CLIP

7

01010-81230

BOLT

8

01643-31232

WASHER

9

21M-03-15120

OIL COOLER ASS'Y

10

01010-81230

BOLT

11

01643-31232

WASHER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

208-03-61250

SHEET

15

21M-03-11331

SEAL

16

21M-03-18210

SEAL

17

21M-03-18130

FRAME

18

21M-03-15220

FRAME

19

21M-03-18150

COVER

20

21M-03-11710

COVER

21

01010-81220

BOLT

22

01643-31232

WASHER

23

01010-81230

BOLT

24

01643-31232

WASHER

25

21M-03-11320

SEAL

26

21M-03-18220

SEAL

27

21M-03-18160

BRACKET

28

01010-81230

BOLT

29

01643-31232

WASHER

30

21M-03-11730

SEAL

31

21M-03-11490

SEAL

32

21M-03-18240

SEAL

33

21M-03-18290

SEAL

34

21M-03-15181

SEAL

35

21M-03-15170

SEAL

36

21M-03-15410

SHEET

37

21M-03-15420

SHEET

38

21M-03-15430

SHEET

39

21M-03-15440

SHEET

40

21M-03-15450

SHEET

41

21M-03-15470

SHEET

42

21M-03-15480

SHEET

43

21M-03-15490

SHEET

44

21M-03-15510

SHEET

45

21M-03-15520

SHEET
