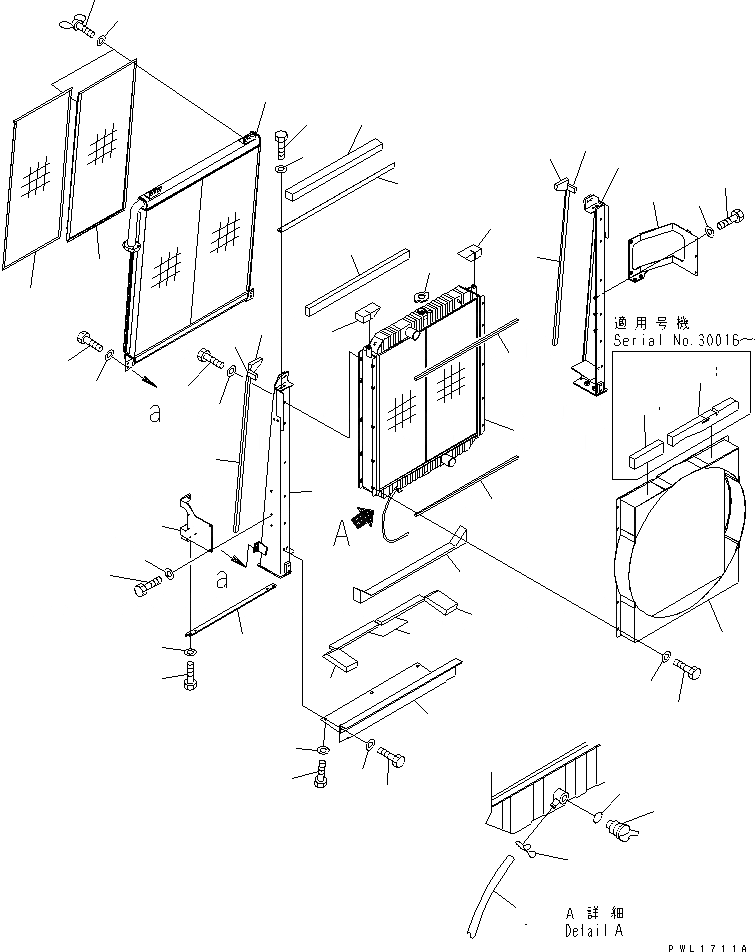

Запчасти Komatsu PC650-6 ОХЛАЖД-Е (РАДИАТОР И МАСЛООХЛАДИТЕЛЬ)(№-999) СИСТЕМА ОХЛАЖДЕНИЯ

1

21M-03-11110

RADIATOR CORE A.

2

208-03-58370

CAP

3

205-03-62660

PLUG

4

07000-11007

O-RING

|4

07000-01007

O-RING

5

20X-03-21170

HOSE

6

206-03-43340

CLIP

7

01010-81230

BOLT

8

01643-31232

WASHER

9

21M-03-11121

OIL COOLER ASS'Y

10

01010-81230

BOLT

11

01643-31232

WASHER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

21M-03-11610

SEAL

15

21M-03-11620

SEAL

16

208-03-61250

SHEET

17

21M-03-11331

SEAL

18

21M-03-11341

SEAL

19

21M-03-11131

FRAME

20

21M-03-11141

FRAME

21

21M-03-11251

COVER

22

01010-81220

BOLT

23

01643-31232

WASHER

24

01010-81230

BOLT

25

01643-31232

WASHER

26

21M-03-11320

SEAL

27

21M-03-11351

SEAL

28

21M-03-11390

BRACKET

29

01010-81230

BOLT

30

01643-31232

WASHER

31

21M-03-11480

SEAL

32

21M-03-11490

SEAL

33

21M-03-11560

SEAL

34

21M-03-11570

SEAL

35

21M-03-11580

SEAL

35A

21M-03-11650

SEAL

35B

21M-03-11660

SEAL

36

21M-03-11421

NET

37

21M-03-11411

NET

38

01434-10616

BOLT¤ WING

39

01643-30623

WASHER

40

21M-03-11150

SHROUD

41

208-979-6231

BRACKET

42

01010-81025

BOLT

43

01643-31032

WASHER

44

21M-979-1120

BRACKET

45

01010-81025

BOLT

46

01643-31032

WASHER

47

208-979-6190

BRACKET

48

01010-81025

BOLT

49

01643-31032

WASHER
