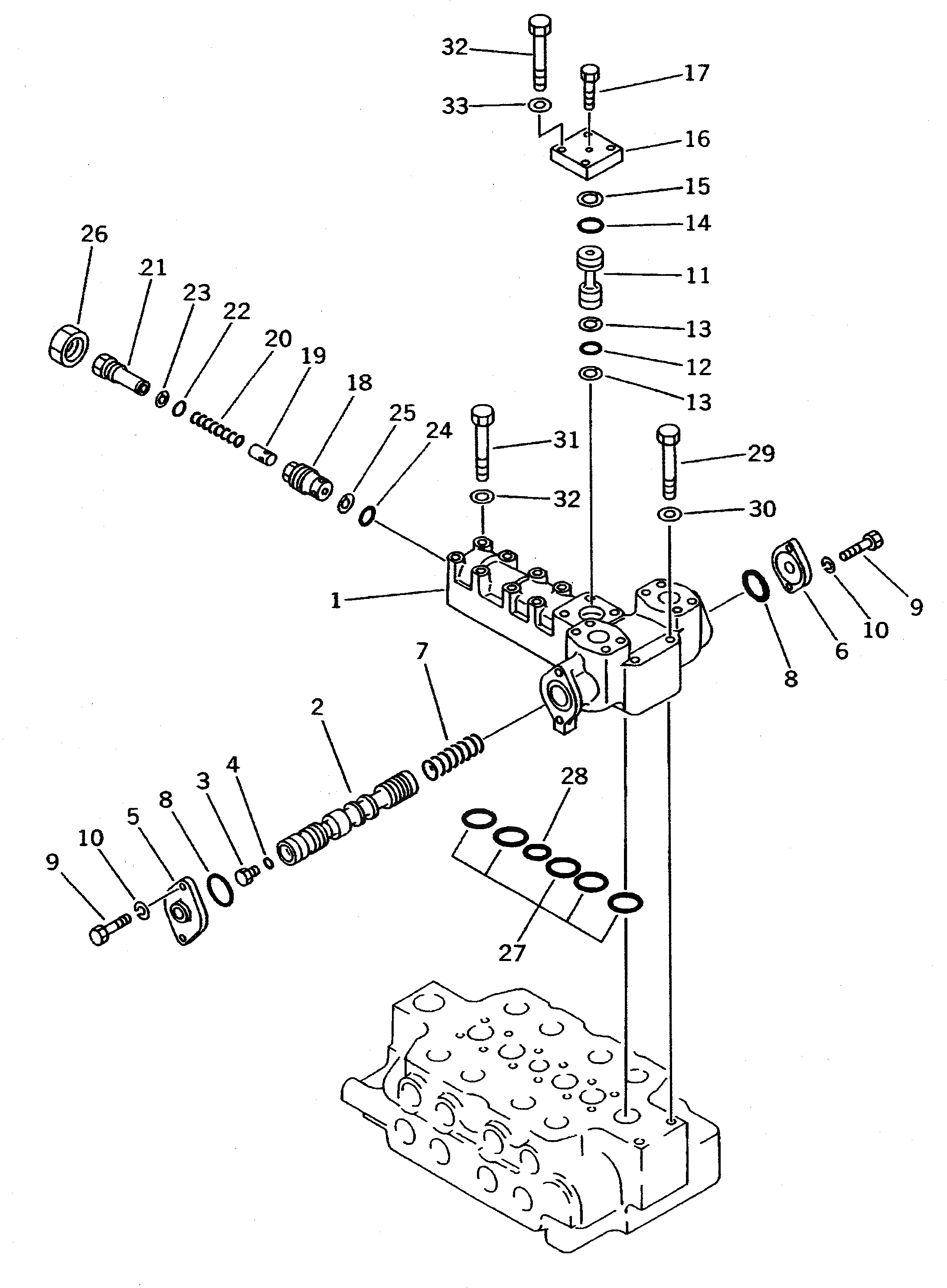

Запчасти Komatsu PC650-5 ОСНОВН. КЛАПАН (4-Х СЕКЦИОНН.) (/) ГИДРАВЛИКА

|1

709-14-93100

VALVE ASS'Y

|1

709-10-93100

VALVE ASS'Y

1

BODY

2

SPOOL

3

07040-11209

PLUG

4

07002-01223

O-RING

5

FLANGE

6

709-10-91240

FLANGE

7

709-10-91260

SPRING

8

07000-02055

O-RING

9

01010-51030

BOLT

10

01602-21030

WASHER,SPRING

11

709-10-91131

PLUG

12

07000-13030

O-RING

13

07001-03030

RING,BACK-UP

14

07000-13035

O-RING

15

07001-03035

RING,BACK-UP

16

709-10-91140

PLATE

17

01010-50835

BOLT

18

709-10-91310

SLEEVE

19

706-73-70140

VALVE,CHECK

20

706-73-70150

SPRING

21

709-74-92450

PLUG

22

07000-12010

O-RING

23

07001-02010

RING,BACK-UP

24

700-93-11320

O-RING

25

700-93-11330

RING,BACK-UP

26

709-74-92460

NUT

27

07000-13048

O-RING

28

07000-13040

O-RING

29

01011-51425

BOLT

30

01643-31445

WASHER

31

01011-51215

BOLT

32

01011-51250

BOLT

33

01643-31232

WASHER
