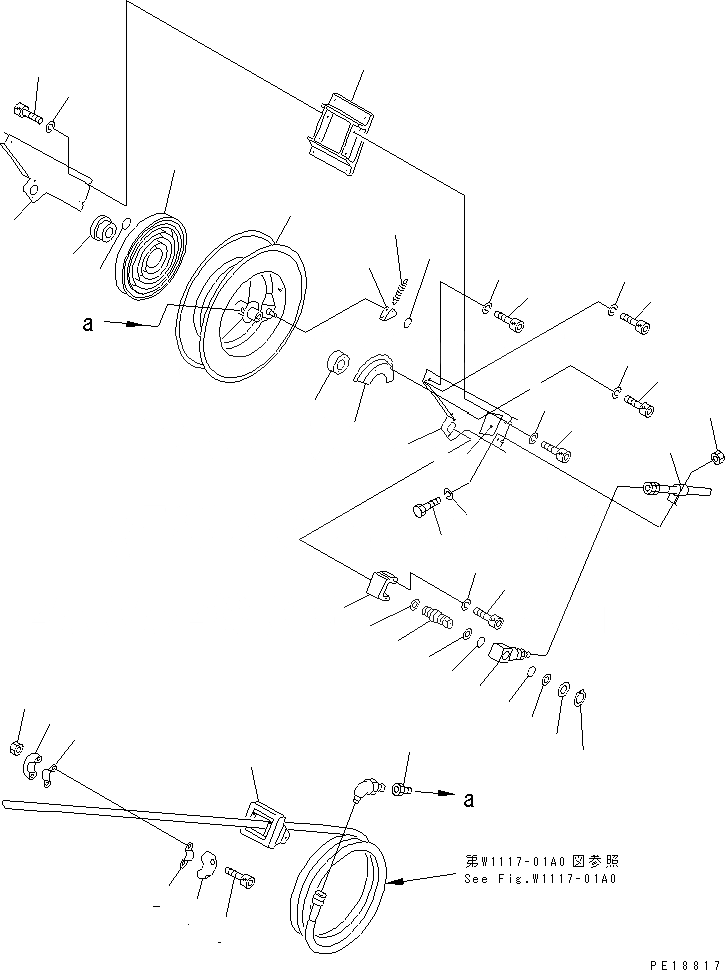

Запчасти Komatsu PC650-5 НАСОС СМАЗКИ (РУКАВНЫЙ БАРАБАН) РАЗНОЕ

|1

209-68-51241

HOSE REEL ASS'Y

1

YU770199-4

STOPPER

2

YU702062-4

BAND

3

YU619154-0

BOLT

4

YU627012-1

NUT

5

YU707944-4

SPRING

6

YU707942-4

STOPPER

7

YU707954-3

CAM,STOPPER

8

YU681677-4

BOLT

9

YU631418-1

WASHER,SPRING

10

YU619073-0

BOLT

11

YU631417-1

WASHER,SPRING

12

YU790372-4

LABEL

13

YU619145-0

BOLT

14

YU631420-1

WASHER,SPRING

15

YU831174-3

PLATE

16

YU640006-0

O-RING

17

YU709484-4

HOLDER

18

YU640020-0

O-RING

19

YU643680-0

RING,BACK-UP

20

YU705893-4

WASHER

21

YU630695-0

RETAINER

22

YU708673-4

ADAPTER

23

YU708831-4

SWIVEL

24

YU770951-4

PACKING

25

YU708832-4

BEARING

26

YU680109-4

ADAPTER

27

YU708833-3

ARM

28

YU831089-2

DRUM

29

YU708834-4

BRACKET

30

YU790371-4

LABEL

31

YU708835-3

ARM

32

YU708671-4

BEARING

33

YU801941-4

SPRING

34

YU627010-1

NUT

35

YU611095-1

BOLT

36

YU708830-4

STOPPER
