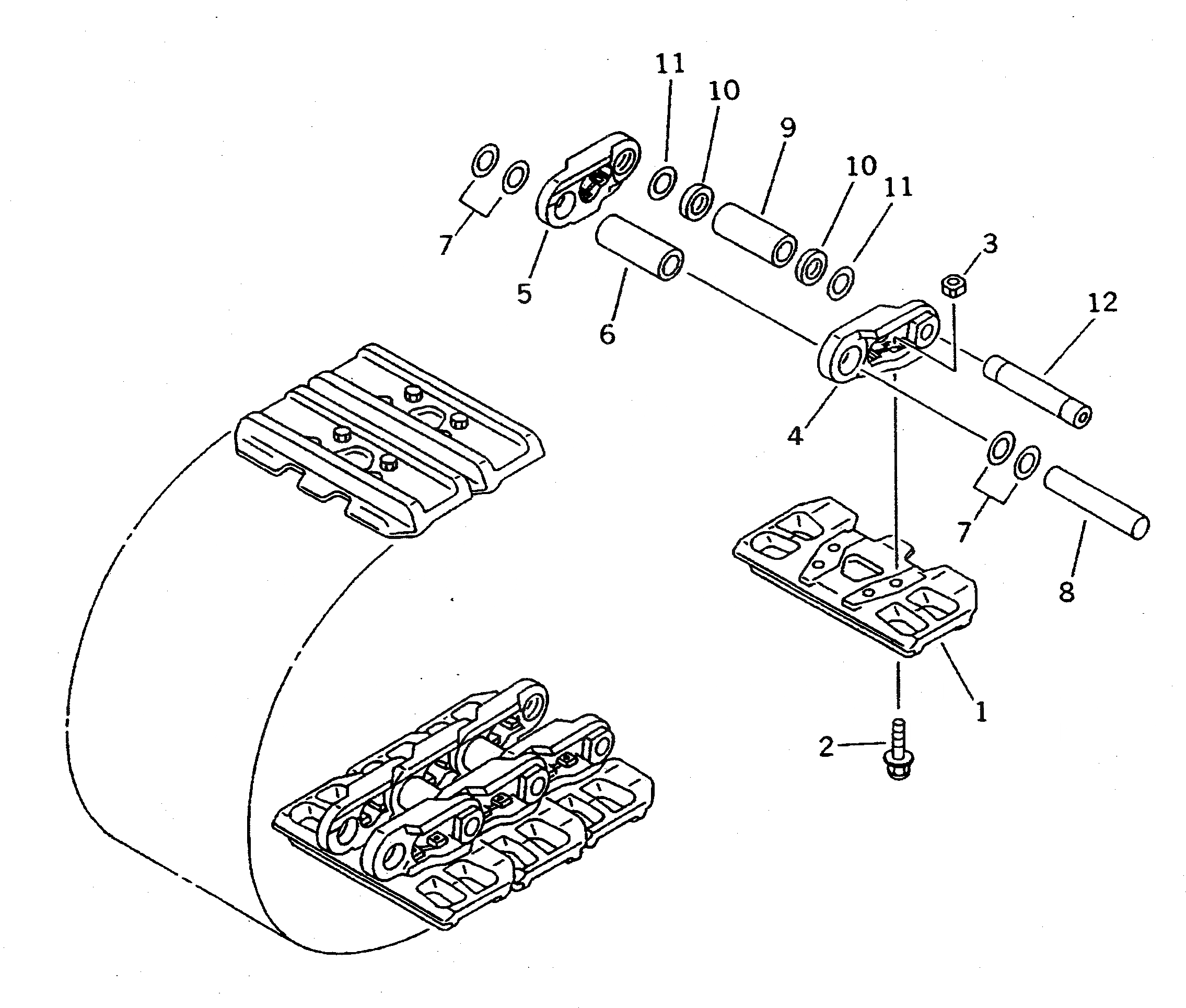

Запчасти Komatsu PC650-5 ГУСЕНИЦЫ ХОДОВАЯ

|1

209-32-01507

TRACK SHOE ASS'Y

|1

209-32-01506

TRACK SHOE ASS'Y

1

209-32-11720

SHOE

|1

209-32-11115

SHOE,TRACK

2

209-32-11234

BOLT¤ SHOE (KIT)

3

195-32-11222

NUT¤ SHOE (KIT)

|4

209-32-00023

TRACK LINK ASS'Y

|4

209-32-00022

TRACK LINK ASS'Y

4

195-32-11127

LINK,TRACK¤ L.H.

5

195-32-11137

LINK,TRACK¤ R.H.

6

209-32-11140

BUSHING¤ REGULAR

|6

195-32-22141

BUSHING,REGULAR

7

195-32-22221

WASHER

8

195-32-22151

PIN,REGULAR

9

209-32-11170

BUSHING¤ MASTER

|9

195-32-22170

BUSHING,MASTER

10

195-32-22231

SPACER

11

195-32-22221

WASHER

12

209-32-11391

PIN¤ MASTER

|12

209-32-11191

PIN¤ MASTER

|1

209-32-01606

TRACK SHOE ASS'Y

|1

209-32-01605

TRACK SHOE ASS'Y

1

209-32-11740

SHOE

|1

209-32-11213

SHOE,TRACK

2

209-32-11234

BOLT¤ SHOE (KIT)

3

195-32-11222

NUT¤ SHOE (KIT)

|4

209-32-00023

TRACK LINK ASS'Y

|4

209-32-00022

TRACK LINK ASS'Y

|1

209-32-01534

TRACK SHOE ASS'Y

|1

209-32-01533

TRACK SHOE ASS'Y

1

209-32-11750

SHOE

|1

209-32-11311

SHOE

2

209-32-11234

BOLT¤ SHOE

3

195-32-11222

NUT¤ SHOE

|4

209-32-00023

TRACK LINK ASS'Y

|4

209-32-00022

TRACK LINK ASS'Y

|1

209-32-01564

TRACK SHOE ASS'Y

|1

209-32-01563

TRACK SHOE ASS'Y

1

209-32-11760

SHOE

|1

209-32-11411

SHOE

2

209-32-11234

BOLT¤ SHOE

3

195-32-11222

NUT¤ SHOE

|4

209-32-00023

TRACK LINK ASS'Y

|4

209-32-00022

TRACK LINK ASS'Y

|1

209-32-05022

SHOE BOLT AND NUT K.

1

209-32-11234

BOLT¤ SHOE

2

195-32-11222

NUT¤ SHOE

6

195-98-09311

BUSHING,REGULAR

8

195-98-09211

PIN,REGULAR

9

195-98-09340

BUSHING,MASTER

12

209-98-09041

PIN,MASTER

6

195-98-09331

BUSHING,REGULAR

8

195-98-09231

PIN,REGULAR

9

195-98-09360

BUSHING,MASTER

12

209-98-09051

PIN,MASTER
