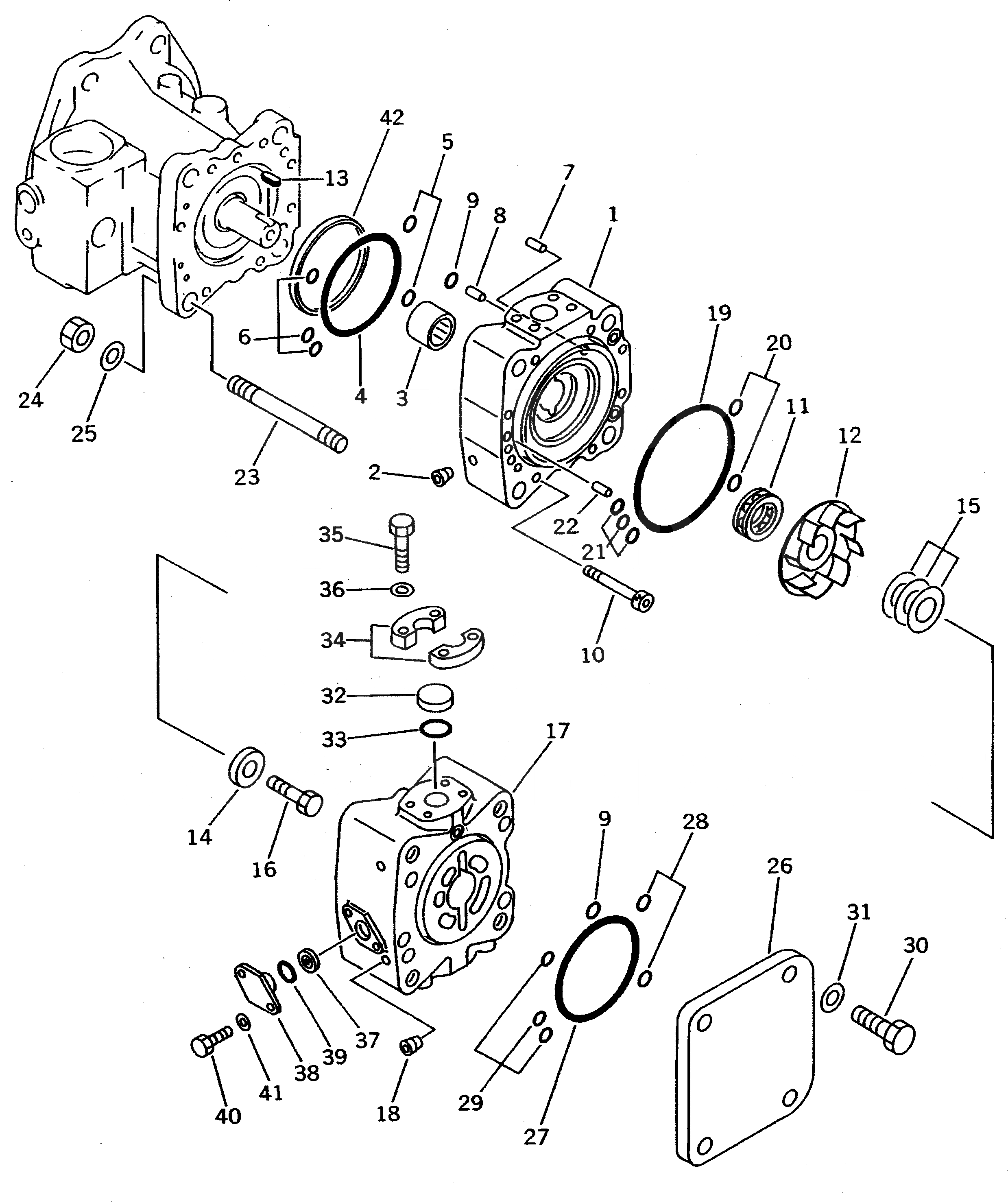

Запчасти Komatsu PC650-5 ПОВОРОТН. НАСОС (/7) ГИДРАВЛИКА

|$1

708-17-01040

PUMP ASS'Y,(HPV 160)

|$3

708-17-01140

PUMP SUB ASS'Y

|$5

708-27-00480

END CAP ASS'Y,FRONT

1

CAP,FRONT

2

PLUG

3

708-27-12880

BEARING

4

708-27-12530

O-RING

5

07000-03025

O-RING

6

07000-12012

O-RING

7

708-18-13230

PIN

8

708-25-12330

JOINT

9

07000-12015

O-RING

10

708-27-12550

BOLT

11

06000-51109

BEARING

12

708-17-22610

IMPELLER

13

04000-00515

KEY

14

708-18-12860

PLATE

15

708-17-05020

SHIM KIT

15

SHIM

15

SHIM

15

SHIM

16

708-27-14490

BOLT

|$25

708-27-00270

END CAP ASS'Y,REAR

17

CAP,END, REAR

18

PLUG

19

708-27-12540

O-RING

20

07000-03025

O-RING

21

07000-12012

O-RING

22

04020-01024

PIN,DOWEL

23

01141-82040

STUD

24

708-27-12570

NUT

25

01643-32060

WASHER

26

708-17-22541

COVER

27

708-27-12530

O-RING

28

07000-03025

O-RING

29

07000-12012

O-RING

30

01010-62055

BOLT

31

01643-32060

WASHER

32

07378-11210

HEAD,SLEEVE

33

07000-13038

O-RING

34

07371-41260

FLANGE

35

01010-51245

BOLT

36

01643-31232

WASHER

37

720-68-15240

FILTER

38

708-27-22530

FLANGE

39

07000-02021

O-RING

40

01010-51025

BOLT

41

01643-31032

WASHER

42

708-27-13630

RING
