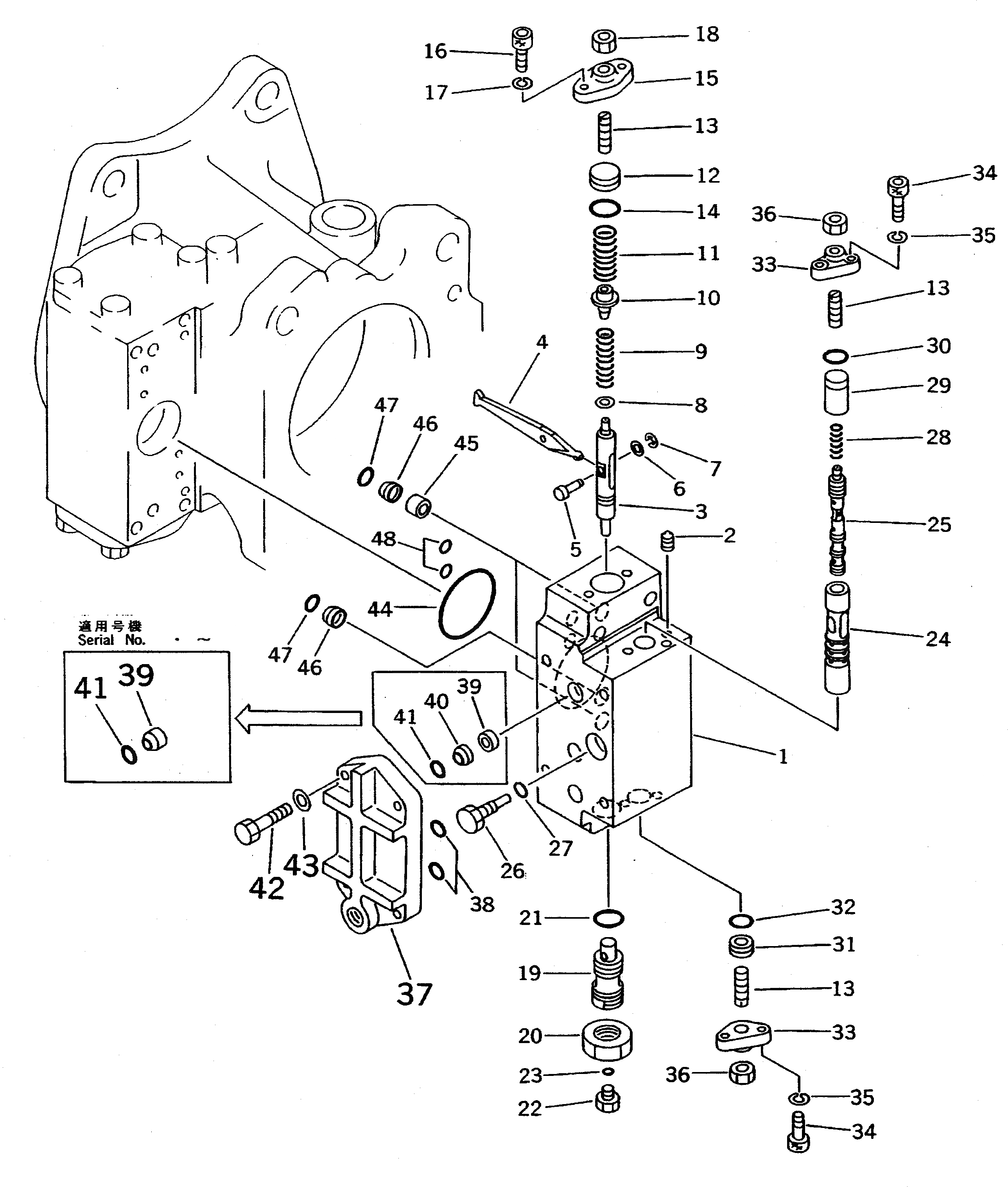

Запчасти Komatsu PC650-5 NO. НАСОС (7/8) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$1
708-25-04081
PUMP ASS'Y,(HPV 90+90)
|$2
708-25-04080
PUMP ASS'Y,(HPV 90+90)
|$4
708-25-09121
SERVO VALVE ASS'Y,FRONT
|$5
4708-25-09120
SERVO VALVE ASS'Y,FRONT
|$7
708-23-00411
BODY ASS'Y
1
BODY
2
EXPANDER
3
708-25-15120
PISTON
4
708-25-15270
ARM
5
708-25-15360
PIN
6
708-25-15370
WASHER
7
708-25-15380
E-RING
8
708-25-15130
SEAT
9
708-25-55130
SPRING
10
708-23-15120
SEAT
11
708-25-55120
SPRING
12
708-23-15160
PLUG
13
708-25-15340
SCREW
14
07000-02018
O-RING
15
708-25-15150
COVER
16
708-25-15320
BOLT
17
01602-20619
WASHER,SPRING
18
01580-10806
NUT
19
708-25-15171
PLUG
20
07239-12009
NUT
21
07002-02034
O-RING
22
07040-11007
PLUG
23
07002-01023
O-RING
24
708-25-15180
SLEEVE
25
708-25-15280
SPOOL
26
708-25-15260
PLUG
27
07002-00823
O-RING
28
708-25-15310
SPRING
29
708-25-15330
SPACER
30
07000-02012
O-RING
31
708-25-15430
PLUG
32
07000-02012
O-RING
33
708-25-15250
COVER
34
708-25-15320
BOLT
35
01602-20619
WASHER,SPRING
36
01580-10806
NUT
37
708-25-55110
PLATE
38
07000-02011
O-RING
39
708-25-19290
PLUG
39
708-25-19191
ORIFICE
40
720-68-11920
FILTER
41
07000-12010
O-RING
42
01010-30825
BOLT
43
01643-50823
WASHER
44
07000-03048
O-RING
45
708-25-19150
ORIFICE
46
720-68-11920
FILTER
47
07000-12010
O-RING
48
07000-11009
O-RING
Выбрано товаров: 54
