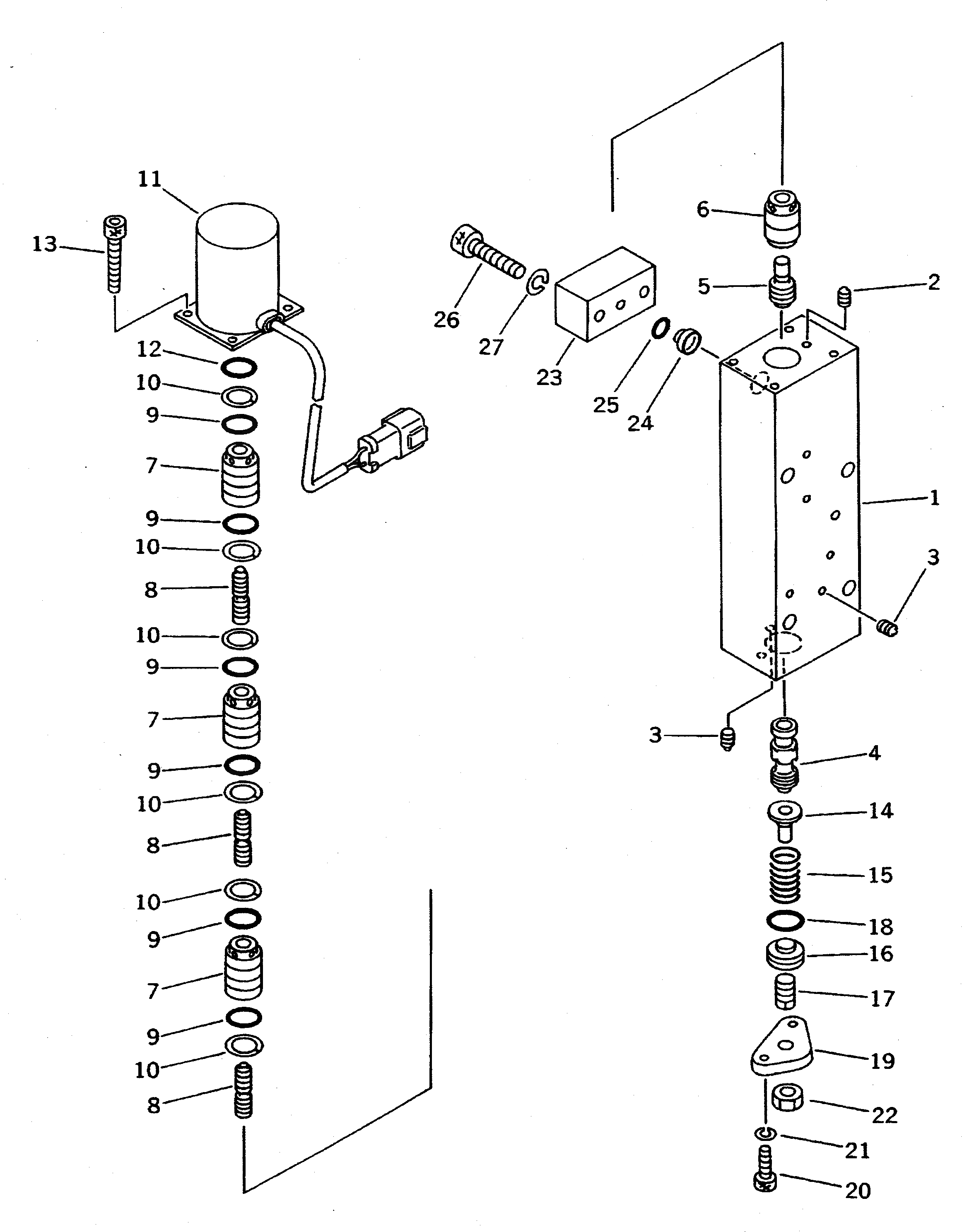

Запчасти Komatsu PC650-5 NO. НАСОС (/) (С -STAGE SELECTOR MODE OLSS) ГИДРАВЛИКА

|$2

708-25-04071

PUMP ASS'Y

|$4

708-25-09111

SERVO VALVE ASS'Y

|$6

708-25-09710

VALVE ASS'Y,TVC

|$7

708-23-00320

BODY ASS'Y

1

BODY

2

PLUG

3

EXPANDER

4

708-23-18161

SPOOL

5

708-23-18120

PISTON

6

708-23-18130

SLEEVE

7

708-25-58150

SLEEVE

8

708-25-58160

PISTON

9

07000-12016

O-RING

10

07001-02016

RING,BACK-UP

11

708-23-18272

SOLENOID ASS'Y

12

07000-02016

O-RING

13

708-23-18250

BOLT

14

708-23-18170

SEAT

15

708-23-18181

SPRING

16

708-23-15160

PLUG

17

708-25-15340

SCREW

18

07000-02018

O-RING

19

708-23-18210

COVER

20

708-25-15320

BOLT

21

01602-20619

WASHER,SPRING

22

01580-10806

NUT

23

708-25-58310

FLANGE

24

720-68-11920

FILTER

25

07000-12010

O-RING

26

708-25-58320

BOLT

27

01602-20825

WASHER,SPRING
