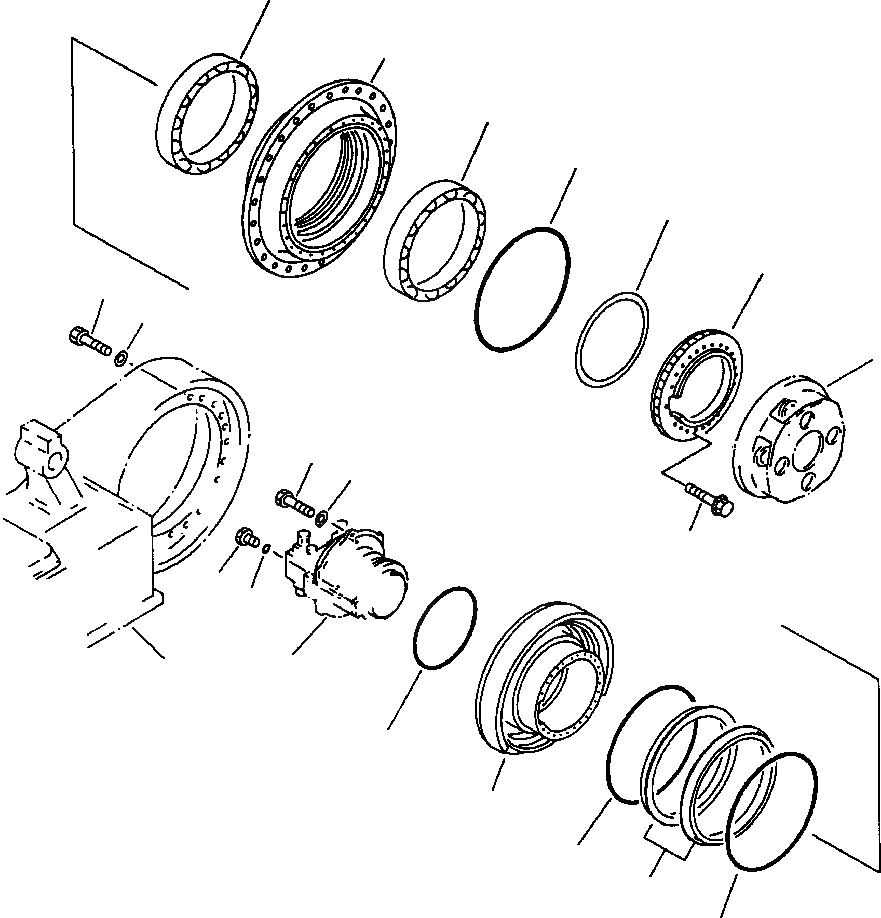

Запчасти Komatsu PC650-5 & PC650LC-5 КОНЕЧНАЯ ПЕРЕДАЧА - ВАЛ И ВТУЛКА НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

1

209-62-64250

PLUG

2

709-25-11390

O-RING

3

07000-05390

O-RING

4

209-27-61321

SHAFT, L.H

|$4

209-27-61331

SHAFT, R.H

5

01010-52480

BOLT

6

01643-32460

WASHER

7

01010-51650

BOLT

8

01643-31645

WASHER

|$9

209-27-00160

FLOATING SEAL ASSEMBLY

9

209-27-00170

SEAL RING ASSEMBLY

|$11

NSS

SEAL

10

209-27-00180

O-RING ASSEMBLY

|$13

NSS

O-RING

11

209-27-61162

HUB

12

209-27-61360

BEARING

13

198-27-11520

O-RING

14

209-27-00190

SPACER ASSEMBLY

|$18

NSS

SPACER, 3.70MM

|$19

NSS

SPACER, 3.85MM

|$20

NSS

SPACER, 4.00MM

|$21

NSS

SPACER, 4.15MM

|$22

NSS

SPACER, 4.30MM

|$23

NSS

SPACER, 4.45MM

|$24

NSS

SPACER, 4.60MM

|$25

NSS

SPACER, 4.75MM

15

209-27-61170

RETAINER

16

208-27-52311

BOLT
