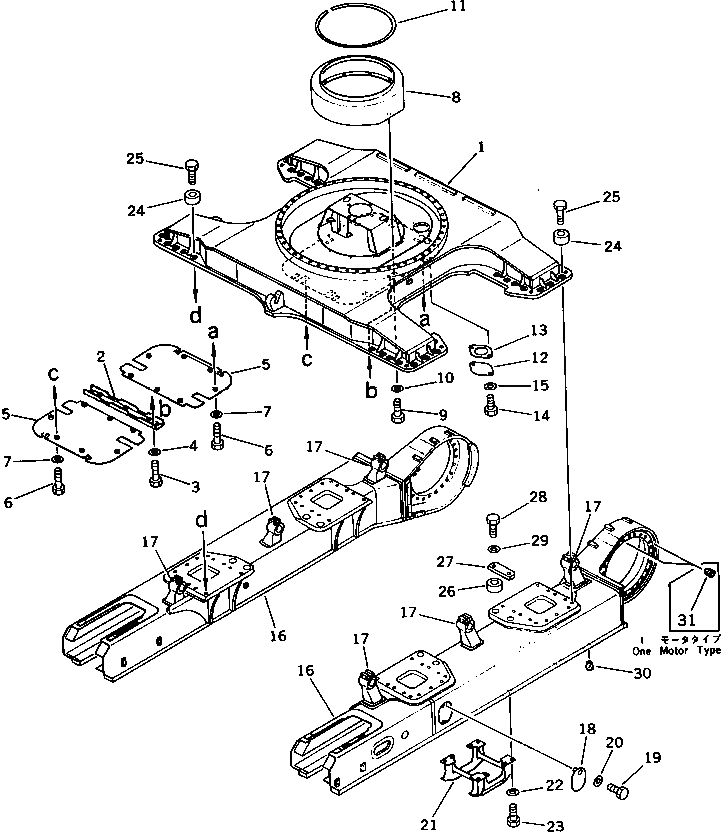

Запчасти Komatsu PC650-3 ГУСЕНИЧНАЯ РАМА (С КРЫШКОЙ) ХОДОВАЯ

G-1

209-30-X1200

UNDER COVER GROUP,CENTER FRAME

1

209-30-51611

FRAME,(FOR JAPAN)

1

209-30-51610

FRAME,(FOR JAPAN)

1

209-30-51611

FRAME,(1-MOTOR TYPE) (EXCEPT JAPAN)

1

209-30-51610

FRAME,(2-MOTOR TYPE) (EXCEPT JAPAN)

2

209-30-51630

PLATE

3

01010-51230

BOLT

4

175-54-34170

WASHER

5

209-30-51620

COVER

6

01010-51230

BOLT

7

01643-31232

WASHER

8

209-30-11362

COVER

9

01010-51230

BOLT

10

01643-31232

WASHER

11

209-30-11341

SEAL

12

205-30-71181

COVER

13

205-30-71191

GASKET

14

01010-51225

BOLT

15

01643-31232

WASHER

16

209-30-51220

FRAME,L.H.

16

209-30-51122

FRAME,L.H.

16

209-30-51121

FRAME,L.H.

16

209-30-51230

FRAME,R.H.

16

209-30-51132

FRAME,R.H.

16

209-30-51131

FRAME,R.H.

17

209-30-51150

SUPPORT (WELDED)

18

209-30-11220

PLATE

19

01010-51225

BOLT

20

01643-31232

WASHER

21

209-30-11188

GUARD

21

209-30-11187

GUARD

21

209-30-11186

GUARD

22

208-30-11380

SPACER

23

01010-82495

BOLT

24

209-30-11330

SPACER

25

209-09-51110

BOLT

26

209-30-11320

COLLAR

27

209-30-51140

PLATE

28

209-09-11310

BOLT

29

01643-33690

WASHER

30

07049-02430

PLUG,(WITHOUT FINAL GUARD)

31

07049-03038

PLUG,(1-MOTOR TYPE) (EXCEPT JAPAN)
