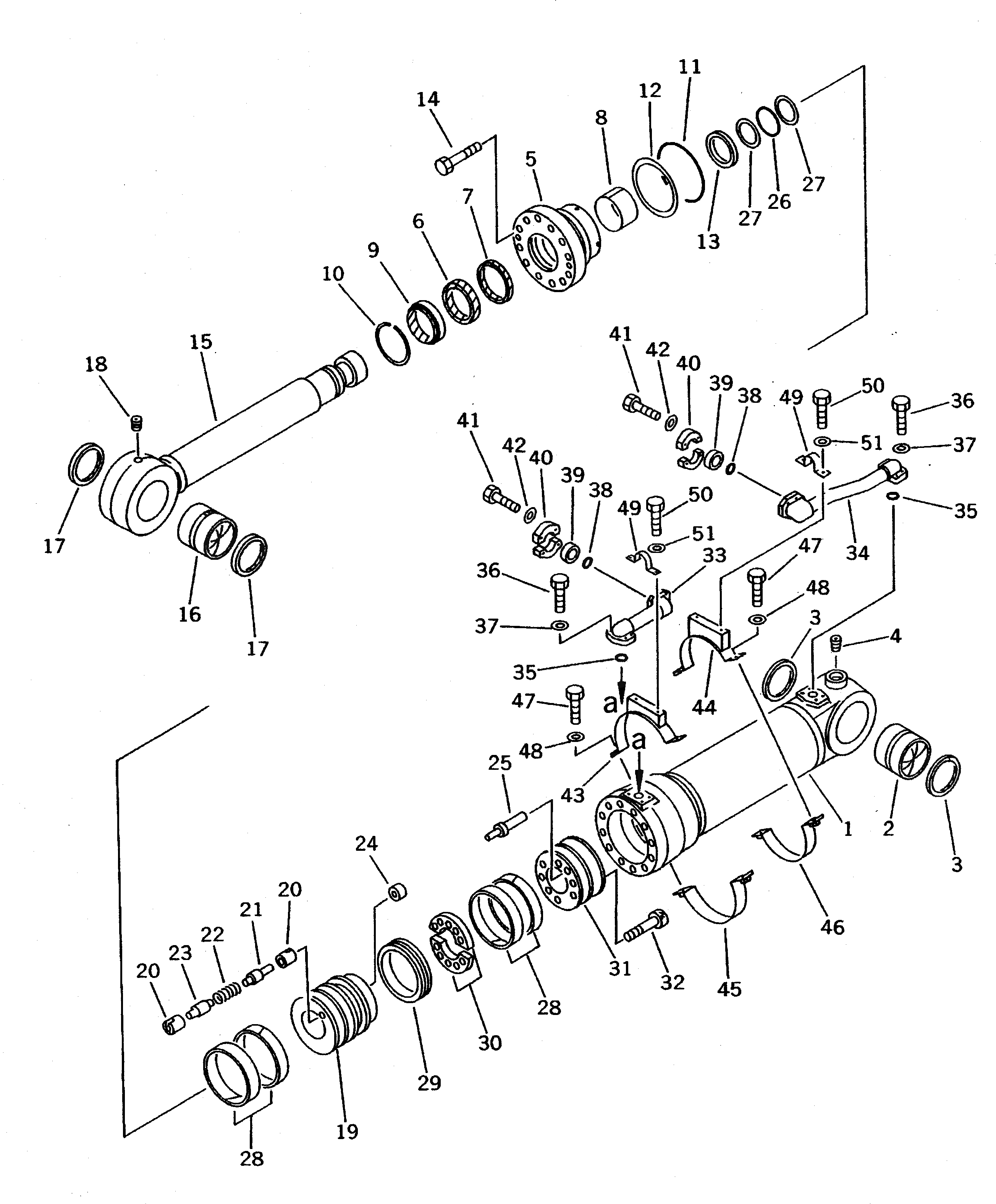

Запчасти Komatsu PC650-3 НИЖН. ГИДРОЦИЛИНДР КОВША (ДЛЯ НИЖН. ПОГРУЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)
№
Артикул
Название
Примечание
Количество
G-1
209-63-X3061
CYLINDER GROUP,L.H.
G-1
209-63-X3060
CYLINDER GROUP,L.H.
G-1
209-63-X3071
CYLINDER GROUP,R.H.
G-1
209-63-X3070
CYLINDER GROUP,R.H.
|$5
209-63-03061
CYLINDER ASS'Y
|$6
209-63-03060
CYLINDER ASS'Y
1
209-63-96540
CYLINDER
2
207-63-76170
BUSHING
3
07145-00090
SEAL,DUST (KIT)
4
07043-00108
PLUG
5
707-27-14510
HEAD,CYLINDER
6
707-51-90130
PACKING,ROD (KIT)
7
707-51-90630
RING,BUFFER (KIT)
8
707-52-90650
BUSHING
8
07177-09040
BUSHING
9
195-63-94170
SEAL,DUST (KIT)
10
07179-13104
RING,SNAP
10
707-75-90012
RING,SNAP
11
07000-15135
O-RING (KIT)
12
07001-05135
RING,BACK-UP (KIT)
13
707-40-14910
RETAINER
14
01010-51860
BOLT
15
209-63-96520
ROD
16
707-76-90040
BUSHING
17
07145-00090
SEAL,DUST (KIT)
18
07043-00108
PLUG
|$27
707-91-01430
PISTON SUB ASS'Y
|$28
707-91-01411
PISTON SUB ASS'Y
19
PISTON
19
PISTON
20
SEAT,VALVE
21
VALVE,PISTON
22
SPRING
23
VALVE,PISTON
24
COLLAR
25
707-83-11090
ROD
26
07000-12070
O-RING (KIT)
27
707-35-52910
RING,BACK-UP (KIT)
28
707-39-14820
RING,WEAR (KIT)
29
707-44-14180
RING,PISTON (KIT)
29
707-44-14080
RING,PISTON (KIT)
30
707-40-14970
SPACER
31
707-37-14020
PISTON
32
01252-31070
BOLT
33
209-62-53640
TUBE,L.H.
33
209-62-53650
TUBE,R.H.
34
209-62-53620
TUBE,L.H.
34
209-62-53630
TUBE,R.H.
35
07000-13035
O-RING (KIT)
36
01010-51060
BOLT
37
01643-31032
WASHER
38
07000-13032
O-RING
39
07378-11000
HEAD,SLEEVE
40
07371-31049
FLANGE,SPLIT
41
07372-21035
BOLT
42
01643-51032
WASHER
43
209-62-53690
BRACKET
44
209-62-53670
BRACKET
45
209-62-53680
BAND
46
209-62-53660
BAND
47
01010-51035
BOLT
48
01643-31032
WASHER
49
07282-03411
CLAMP
50
01010-51020
BOLT
51
01643-31032
WASHER
Выбрано товаров: 65
