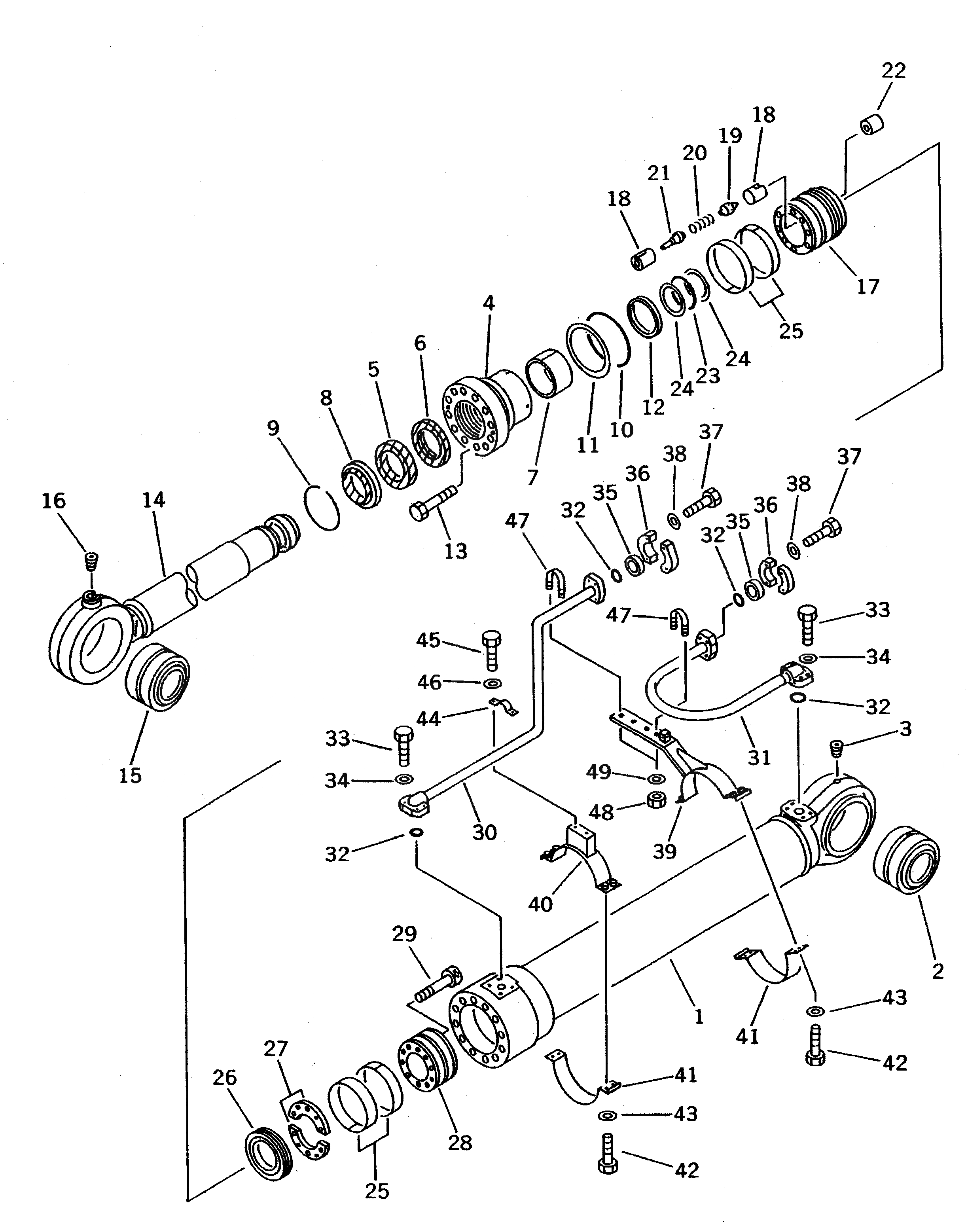

Запчасти Komatsu PC650-3 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)
№
Артикул
Название
Примечание
Количество
G-1
209-63-X3041
CYLINDER GROUP,L.H.
G-1
209-63-X3040
CYLINDER GROUP,L.H.
G-1
209-63-X3051
CYLINDER GROUP,R.H.
G-1
209-63-X3050
CYLINDER GROUP,R.H.
|$5
209-63-03041
CYLINDER ASS'Y
|$6
209-63-03040
CYLINDER ASS'Y
1
209-63-76741
CYLINDER
2
707-46-11510
BUSHING
3
07043-00108
PLUG
4
707-27-18510
HEAD,CYLINDER
5
707-51-13130
PACKING,ROD (KIT)
6
707-51-13630
RING,BUFFER (KIT)
7
707-52-91050
BUSHING
7
707-52-11310
BUSHING
8
707-56-13520
SEAL,DUST (KIT)
9
07179-14146
RING,SNAP
9
707-75-13012
RING,SNAP
10
07000-15175
O-RING (KIT)
11
07001-05175
RING,BACK-UP (KIT)
12
707-40-18910
RETAINER
13
01010-52485
BOLT
14
209-63-76722
ROD
15
707-46-11510
BUSHING
16
07043-00108
PLUG
|$25
707-91-01832
PISTON SUB ASS'Y
|$26
707-91-01831
PISTON SUB ASS'Y
17
PISTON
17
PISTON
18
SEAT,VALVE
19
VALVE,PISTON
20
SPRING
21
VALVE,PISTON
22
707-71-91410
SPACER
23
07000-12110
O-RING (KIT)
24
707-35-52950
RING,BACK-UP (KIT)
25
707-39-18820
RING,WEAR (KIT)
26
707-44-18180
RING,PISTON (KIT)
26
707-44-18080
RING,PISTON (KIT)
27
707-40-18970
SPACER
28
707-37-18020
PISTON
29
01252-31485
BOLT
30
209-62-53460
TUBE,L.H.
30
209-62-53470
TUBE,R.H.
31
209-62-53440
TUBE,L.H.
31
209-62-53450
TUBE,R.H.
32
07000-13038
O-RING (KIT)
33
01010-51245
BOLT
34
01643-31232
WASHER
35
07378-11210
HEAD,SLEEVE
36
07371-51260
FLANGE,SPLIT
37
01010-51245
BOLT
38
01643-31232
WASHER
39
209-62-53481
BRACKET
40
209-62-53490
BRACKET
41
707-88-96050
BAND
42
01010-51240
BOLT
43
01643-31232
WASHER
44
07282-03411
CLAMP
45
01010-51020
BOLT
46
01643-31032
WASHER
47
07283-23442
CLIP
48
01599-01011
NUT
49
01643-31032
WASHER
Выбрано товаров: 63
