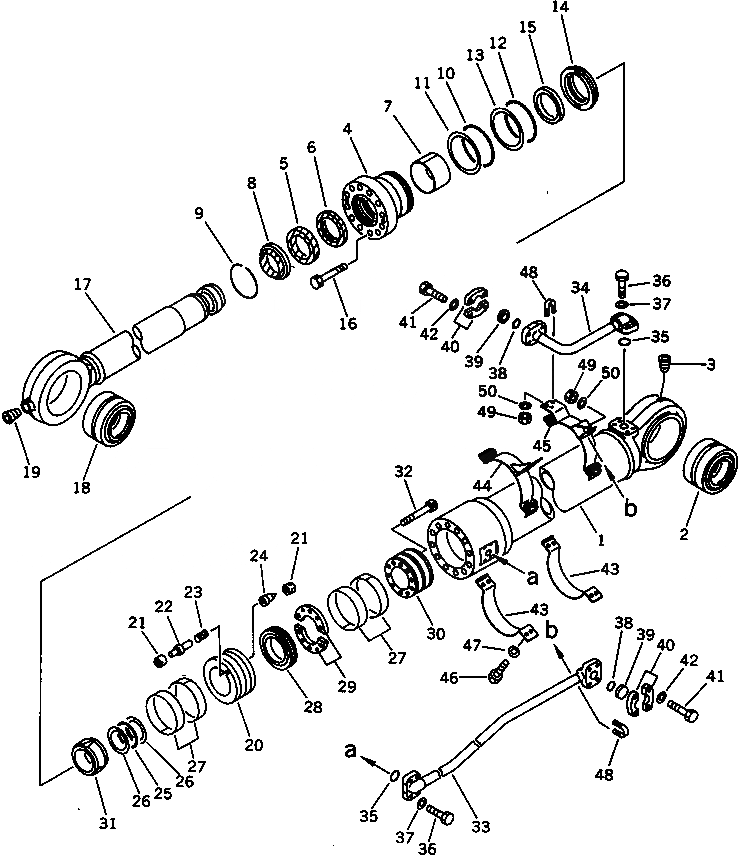

Запчасти Komatsu PC650-3 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

209-63-X2051

BUCKET CYLINDER G.

|$2

209-63-02051

CYLINDER ASS'Y

1

209-63-72741

CYLINDER

2

707-46-13010

BUSHING

3

07043-00108

PLUG,(FOR SHIPPING)

4

707-28-20530

HEAD,CYLINDER

5

707-51-14130

PACKING,ROD

6

707-51-14630

RING,BUFFER

7

707-52-91150

BUSHING

8

198-63-93170

SEAL,DUST

9

07179-14160

RING,SNAP

10

07000-15195

O-RING

11

707-35-92050

RING,BACK-UP

12

07000-15195

O-RING

13

07001-05195

RING,BACK-UP

14

707-71-31460

COLLAR

15

707-71-11450

RING

16

01010-52790

BOLT

17

209-63-72720

ROD,PISTON

18

707-46-11520

BUSHING

19

07043-00108

PLUG,(FOR SHIPPING)

|$22

707-91-02062

PISTON ASS'Y

20

PISTON

21

SEAT,VALVE

22

VALVE

23

SPRING

24

VALVE,PISTON

25

07000-12115

O-RING

26

707-35-52860

RING,BACK-UP

27

707-39-20820

RING,WEAR

28

707-44-20180

RING,PISTON

29

707-40-20970

SPACER

30

707-37-20020

PISTON

31

707-71-51461

PLUNGER

32

01252-31490

BOLT

33

209-63-72570

TUBE

34

209-62-58410

TUBE

35

07000-13038

O-RING

36

01010-51245

BOLT

37

01643-31232

WASHER

38

07000-13038

O-RING

39

07378-11210

HEAD,SLEEVE

40

07371-51260

FLANGE,SPLIT

41

01010-41245

BOLT

42

01643-31232

WASHER

43

707-88-96110

BAND

44

707-88-96070

BRACKET

45

707-88-96080

BAND

46

01010-51240

BOLT

47

01643-31232

WASHER

48

07283-23442

CLIP

49

01599-01011

NUT

50

01643-31032

WASHER
