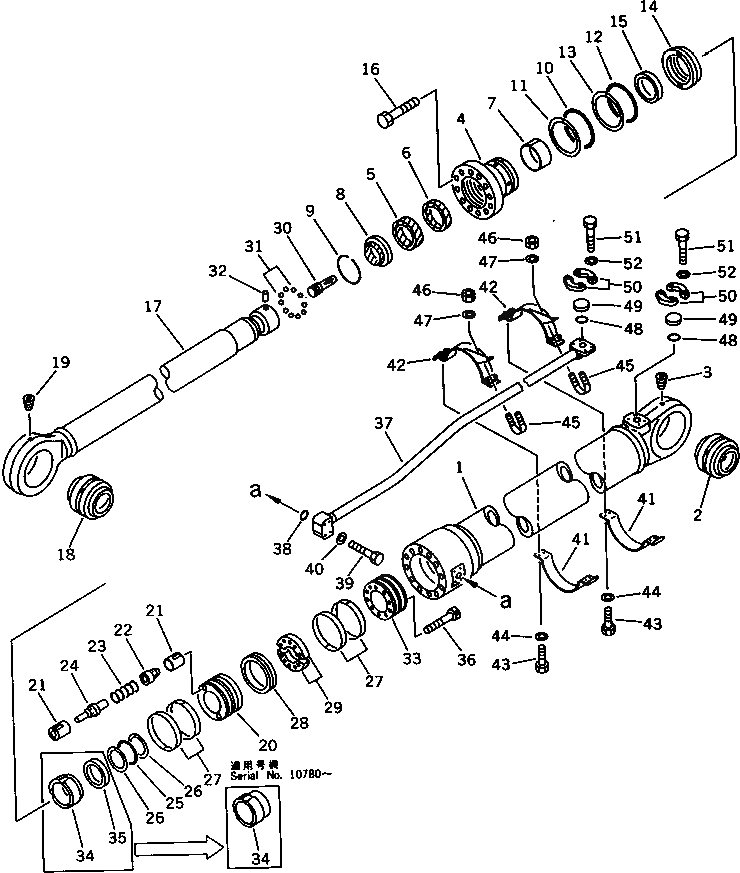

Запчасти Komatsu PC650-3 ЦИЛИНДР РУКОЯТИ(SALTY МЕСТН. СПЕЦ-Я.) (КРОМЕ ЯПОН.) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

209-63-X6030

ARM CYLINDER GROUP

|$2

209-63-06030

CYLINDER ASS'Y

1

209-63-67340

CYLINDER

2

707-46-13010

BUSHING

3

07043-00108

PLUG,(FOR SHIPPING)

4

707-28-20620

HEAD,CYLINDER

5

707-51-14130

PACKING,ROD

6

707-51-14630

RING,BUFFER

7

707-52-11410

BUSHING

8

707-56-14080

SEAL,DUST

9

707-75-14520

RING,SNAP

10

07000-15195

O-RING

11

707-35-92050

RING,BACK-UP

12

07000-15195

O-RING

13

07001-05195

RING,BACK-UP

14

707-71-31460

COLLAR

15

707-71-11450

RING

16

01010-52790

BOLT

17

209-63-67320

ROD,PISTON

18

707-46-11520

BUSHING

19

07043-00108

PLUG,(FOR SHIPPING)

|$22

707-91-02081

PISTON ASS'Y

20

PISTON

21

SEAT,VALVE

22

VALVE

23

SPRING

24

VALVE,PISTON

25

07000-12115

O-RING

26

707-35-52860

RING,BACK-UP

27

707-39-20820

RING,WEAR

28

707-44-20080

RING,PISTON

29

707-40-20970

SPACER

30

707-71-50390

PLUNGER

31

04260-01270

BALL

32

707-71-91360

PIN

33

707-37-20020

PISTON

34

707-71-51461

PLUNGER

34

707-71-51460

PLUNGER

35

707-40-20910

RETAINER

36

01252-31490

BOLT

37

209-63-67380

TUBE

38

07000-13038

O-RING

39

01010-51245

BOLT

40

01643-31232

WASHER

41

707-88-95210

BAND

42

707-88-95230

BAND

43

01010-51240

BOLT

44

01643-31232

WASHER

45

07283-24346

CLIP

46

01599-01011

NUT

47

01643-31032

WASHER

48

07000-13048

O-RING

49

07378-11410

HEAD,SLEEVE

50

07371-51470

FLANGE,SPLIT

51

01010-41455

BOLT

52

01643-31445

WASHER
