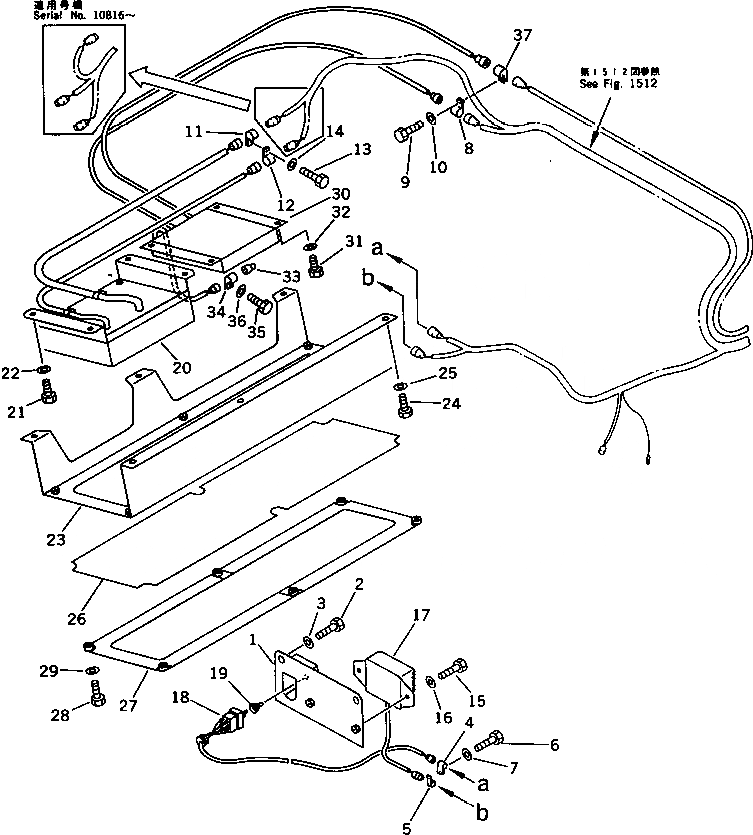

Запчасти Komatsu PC650-3 ELECT.СИСТЕМА(ЭЛЕКТРОПРОВОДКА)(/)(F/ПОГРУЗ.)(W/-STAGE SELECTOR MODE OLSS)(W/-POSITION АВТОМАТИЧ. COMPENSATION) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

209-06-51231

BRACKET

2

01010-51225

BOLT

3

01643-31232

WASHER

4

08036-02514

CLIP

5

08036-01814

CLIP

6

01010-51220

BOLT

7

01643-31232

WASHER

8

08036-02514

CLIP

9

01010-51220

BOLT

10

01643-31232

WASHER

11

08036-02514

CLIP

12

08036-03014

CLIP

13

01010-51220

BOLT

14

01643-31232

WASHER

15

01010-50820

BOLT

16

01643-30823

WASHER

G-1

209-60-X1000

OLSS GROUP,(3-STAGE SELECTOR MODE)

17

7827-11-1500

RESISTOR

18

205-06-71890

SWITCH

19

203-06-41610

CAP

20

7827-50-1001

CONTROL BOX ASS'Y

20

7827-50-1000

CONTROL BOX ASS'Y

21

01010-51020

BOLT

22

01643-31032

WASHER

23

209-06-51580

COVER

24

01010-51020

BOLT

25

01643-31032

WASHER

26

209-06-51610

PLATE

27

209-06-51590

PLATE

28

01010-51020

BOLT

29

01643-31032

WASHER

G-2

209-06-X3000

AUTO COMPENSATION G.,(FOR 2-POSITION)

30

7827-55-1000

CONTROL BOX ASS'Y

31

01010-51025

BOLT

32

01643-31032

WASHER

33

195-Z11-2910

CONNECTOR

34

08036-02514

CLIP

35

01010-51220

BOLT

36

01643-31232

WASHER

37

08036-02514

CLIP
